Three electric charges Q1, Q2 and Q3 are placed on the x-axis at positions – 4m,...

Three electric charges Q1, Q2 and Q3 are placed on the x-axis at positions – 4m, 0m and + 2m, respectively. If the charges have values of +2 µC, +5 µC and – 2 µC, what is the net force on the +5 µC charge?

b.) An electron with a speed of 500 m/s is traveling in the + y-direction. It enters a region with a magnetic field of strength 1.5 T. If the magnetic field is in the x-y plane, and is directed at angle of 30o with respect to the + x-direction, what is the force on the electron?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

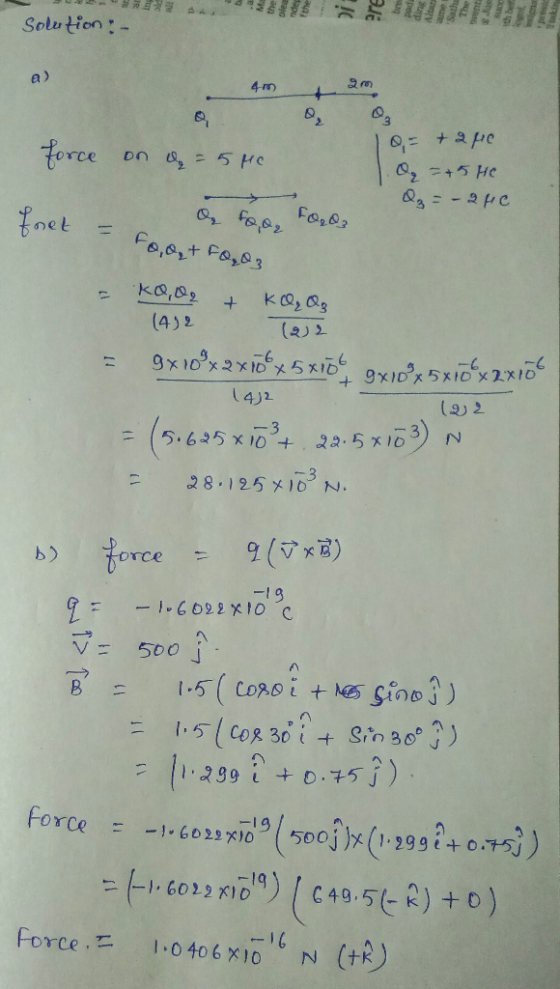

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Three electric charges Q1, Q2 and Q3 are placed on the x-axis at positions – 4m,...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Three electric charges 2uC, 5uC, and -2uC are placed on the x-axis at positions -4m, 0m,...

    Three electric charges 2uC, 5uC, and -2uC are placed on the x-axis at positions -4m, 0m, and 2m, respectively. What is the net force on the 5uC charge? Please explain! thank you! A. -0.017Nx B. 0.017Nx C. 0.028Nx D. 0.068Nx

  • a) In the picture below, the 3 charges Q1, Q2 and Q3 are located at positions...

    a) In the picture below, the 3 charges Q1, Q2 and Q3 are located at positions (-a,0), (a,0) and (0,-d) respectively. (The origin is the point halfway between Q1 and Q2.) Consider the special case where Q1, Q3 greater than zero and Q2 = -Q1. Select true or false for each statement. The force on Q3 due to the other two charges is zero. The electric potential at any point along the y-axis is positive. If Q3 is released from...

  • Three charges: Q1, Q2, and Q3 are located on a straight line. The charge Q3 =...

    Three charges: Q1, Q2, and Q3 are located on a straight line. The charge Q3 = 6.75e-6 C is movable along this line. The charges Q1 = -8.75e-6 C and Q2 = 2.80e-6 C are fixed at their positions, with Q2 at the distance d = 0.436 m to the right of Q1. For what position of Q3 (with respect to Q1) is the net force on Q3 - due to Q1 and Q2 - equal zero? Convention: use the...

  • Three Charges Three charges, Q1, Q2, and Q3 are located in a straight line. The position...

    Three Charges Three charges, Q1, Q2, and Q3 are located in a straight line. The position of Q2 is 0.246 m to the right of Q1. Q3 is located 0.147 m to the right of Q2. The force on Q2 due to its interaction with Q3 is directed to the... Left if the two charges have opposite signs. Left if the two charges are negative. Left if the two charges are positive Right if the two charges have opposite signs....

  • Three charges, Q1, Q2, and Q3 are located in a straight line. The position of Q2...

    Three charges, Q1, Q2, and Q3 are located in a straight line. The position of Q2 is 0.290 m to the right of Q1. Q3 is located 0.158 m to the right of Q2. (a)Q1= 2.24·10-6 C, Q2= -2.84·10-6 C, and Q3= 3.33·10-6 C. Calculate the total force on Q2. Give with the plus sign for a force directed to the right. (b)Now the charges Q1= 2.24·10-6 C and Q2= -2.84·10-6 C are fixed at their positions, distance 0.290 m...

  • a) In the picture below, the 3 charges Q1, Q2 and Q3 are located at positions...

    a) In the picture below, the 3 charges Q1, Q2and Q3 are located at positions (-a,0), (a,0) and (0,-d) respectively.(The origin is the point halfway between Q1 and Q2.)Consider the special case where Q1, Q3greater than zero and Q2 = -Q1.Select true or false for each statement.True False  If Q3 is released from rest, it will initially accelerate to the right.True False  The electric potential at any point along the y-axis is positive.True False  The electric potential at the origin equals Q3/(4πε0d).(Here k...

  • In the picture below, the 3 charges Q1, Q2 and Q3 are located at positions (-a,0),...

    In the picture below, the 3 charges Q1, Q2and Q3 are located at positions (-a,0), (a,0) and (0,-d) respectively.(The origin is the point halfway between Q1 and Q2.)Consider the special case where Q1, Q3greater than zero and Q2 = -Q1.Select true or false for each statement.True False  If Q3 is released from rest, it will initially accelerate to the right.True False  The electric potential at any point along the y-axis is positive.True False  The electric potential at the origin equals Q3/(4πε0d).(Here k =...

  • The diagram shows the electric field lines surrounding three electric charges, q1, q2, and q3 (from...

    The diagram shows the electric field lines surrounding three electric charges, q1, q2, and q3 (from left to right). Assume that q1 + q2 = ?2.66 µC. Calculate q2. Count carefully! b) Calculate q1. c) Calculate q3.

  • can you explain that to me ? Two electric charges are placed on the x=axis. One...

    can you explain that to me ? Two electric charges are placed on the x=axis. One (q1= + 8muC) is located at the origin, and the second charge (q2=-4muC) is located at x=1.25m. A third charge (q3=+20muC) is placed at x=2m. What is the net electric force on charge q3? What is the net electric field experienced by charge q3? In which region of the x-axis should we place q3 so that the net electric force on it equals zero?...

  • Three point-like charges q1 = 12 µC, q2 = -7 µC and q3 = 5 µC...

    Three point-like charges q1 = 12 µC, q2 = -7 µC and q3 = 5 µC are located at the following positions: r1 = (0, 0, 0), r2 = (2 cm, 0, 0), and r3 = (0, 4 cm, 0), respectively. By using the Coulomb’s law (see Eq. 2.4 in the textbook) find the electric field at an arbitrary point r = (x,y,z). Then, by making use of the general result, calculate the field at (0, 0, 2 cm).
