Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating...
Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating has an index of refraction between the index of air and the index of the lens. The coating cancels the reflections of one particular wavelength of the incident light. Usually, it cancels green-yellow light (λ = 543.0 nm) in the middle of the visible spectrum.

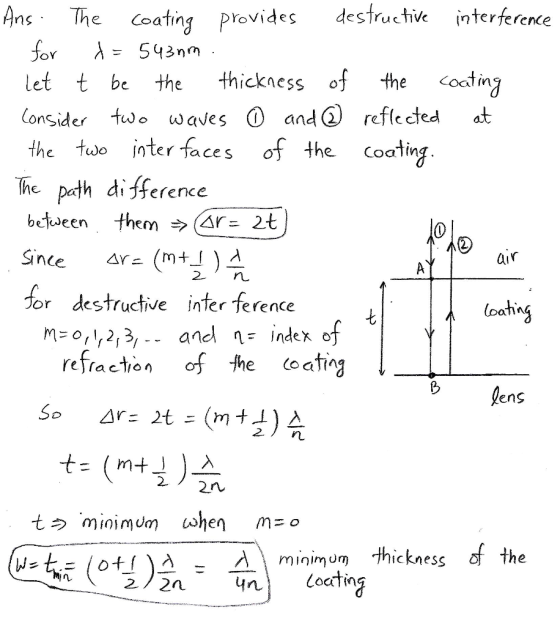

(a) Assuming the light is incident perpendicular to the lens surface, what is the minimum thickness of the coating in terms of the wavelength of light in that coating? (Use the following as necessary: λ.)
w =
Homework Answers
Add Answer to:
Sometimes a nonreflective coating is applied to a lens, such as
a camera lens. The coating...
Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating has an index of refraction between the index of air and the index of the lens. The coating cancels the refle...
Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating has an index of refraction between the index of air and the index of the lens. The coating cancels the reflections of one particular wavelength of the incident light. Usually, it cancels green-yellow light (λ 546.0 nm) in the middle of the visible spectrum. (a) Assuming the light is incident perpendicular to the lens surface, what is the minimum thickness of the coating in...
2. -/5 points KatzPSE1 36.P.015 My Notes Ask Your Teacher Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating has an index of refraction between the index of ai...
2. -/5 points KatzPSE1 36.P.015 My Notes Ask Your Teacher Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating has an index of refraction between the index of air and the index of the lens. The coating cancels the reflections of one particular wavelength of the incident light. Usually, it cancels green-yellow light (à - 552.0 nm) in the middle of the visible spectrum. (a) Assuming the light is incident perpendicular to the...
A nonreflective coating (n = 1.39) covers the glass (n = 1.52) of a camera lens....
A nonreflective coating (n = 1.39) covers the glass (n = 1.52) of a camera lens. Assuming that the coating prevents reflection of yellow-green light (wavelength in vacuum = 566 nm), determine the minimum nonzero thickness that the coating can have.
A thin film of polystyrene is used as an anti-reflective coating for fabulite (known as the...
A thin film of polystyrene is used as an anti-reflective coating for fabulite (known as the substrate). The index of refraction of the polystyrene is 1.49, and the index of refraction of the fabulite is 2.409. What is the least coating thickness that eliminates the reflections at the middle of the visible spectrum ( = 550nm)? Assume that the light is approximately perpendicular to the film surface.
Light is incident on a lens with a thin coating. The light first travels through the...
Light is incident on a lens with a thin coating. The light first travels through the thin coating, and then the lens. The thin coating has an index of refraction of n = 1.3, and the lens has an index of refraction of n=1.6. What is the minimum thickness of this coating that will destructively reflect light of wavelength 500 nm?
8. Visible light has wavelengths between about 1 = 400nm on the violet end of the...
8. Visible light has wavelengths between about 1 = 400nm on the violet end of the spectrum to about l = 700nm on the red end. An anti-reflective coating with index ne = 1.2 forms a thin film on the surface of a glass lens with index n, = 1.5. (a) For a wavelength in middle of the visible-wavelength range (which appears green), find the minimum thickness of the coating for dark reflections of light entering the lens from the...
A glass camera lens with an index of refraction of 1.55 is to be coated with a cryolite film (n = 1.3) to decrease the reflections of normally incident green light of wavelength 500 nm. How thick should such a film be?
A glass camera lens with an index of refraction of 1.55 is to be coated with a cryolite film (n = 1.3) to decrease the reflections of normally incident green light of wavelength 500 nm. How thick should such a film be?
Chapter 27, Problem 13 A nonreflective coating (n 1.32) covers the glass (n 1.52) of a...
Chapter 27, Problem 13 A nonreflective coating (n 1.32) covers the glass (n 1.52) of a camera lens. Assuming that the coating prevents reflection of a specific wavelength (Avacuum = 609 nm), determine the minimum nonzero thickness that the coating can have. Number Units 504
A thin coating of Magnesium Fluoride (MgF2) is deposited on the surface of some eyeglasses which...
A thin coating of Magnesium Fluoride (MgF2) is deposited on the surface of some eyeglasses which have an index of refraction of 1.6. The MgF2 has an index of refraction of 1.38. (a) What is the minimum thickness of the coating so that green light of wavelength 500 nm has minimal reflectance (i.e. maximum transmission for anti-reflective coating)? (b) What is the minimum thickness of the coating so that green light of wavelength 500 nm has maximum reflectance?
Camera lenses (n = 1.45) are often coated with a thin film of magnesium fluoride (n...
Camera lenses (n = 1.45) are often coated with a thin film of magnesium fluoride (n = 1.36). These non-reflective coatings use destructive interference to reduce unwanted reflections. Find the condition for destructive interference in this case, and calculate the minimum thickness required to give destructive interference for light in the middle of the visible spectrum (yellow-green light, λair = 555 nm).
Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating has an index of refraction between the index of air and the index of the lens. The coating cancels the reflections of one particular wavelength of the incident light. Usually, it cancels green-yellow light (λ 546.0 nm) in the middle of the visible spectrum. (a) Assuming the light is incident perpendicular to the lens surface, what is the minimum thickness of the coating in...
2. -/5 points KatzPSE1 36.P.015 My Notes Ask Your Teacher Sometimes a nonreflective coating is applied to a lens, such as a camera lens. The coating has an index of refraction between the index of air and the index of the lens. The coating cancels the reflections of one particular wavelength of the incident light. Usually, it cancels green-yellow light (à - 552.0 nm) in the middle of the visible spectrum. (a) Assuming the light is incident perpendicular to the...
A thin film of polystyrene is used as an anti-reflective coating for fabulite (known as the substrate). The index of refraction of the polystyrene is 1.49, and the index of refraction of the fabulite is 2.409. What is the least coating thickness that eliminates the reflections at the middle of the visible spectrum ( = 550nm)? Assume that the light is approximately perpendicular to the film surface.
8. Visible light has wavelengths between about 1 = 400nm on the violet end of the spectrum to about l = 700nm on the red end. An anti-reflective coating with index ne = 1.2 forms a thin film on the surface of a glass lens with index n, = 1.5. (a) For a wavelength in middle of the visible-wavelength range (which appears green), find the minimum thickness of the coating for dark reflections of light entering the lens from the...
Chapter 27, Problem 13 A nonreflective coating (n 1.32) covers the glass (n 1.52) of a camera lens. Assuming that the coating prevents reflection of a specific wavelength (Avacuum = 609 nm), determine the minimum nonzero thickness that the coating can have. Number Units 504
