a.) A lab technician connects a 4.50 V battery to the plates of a capacitor. After...

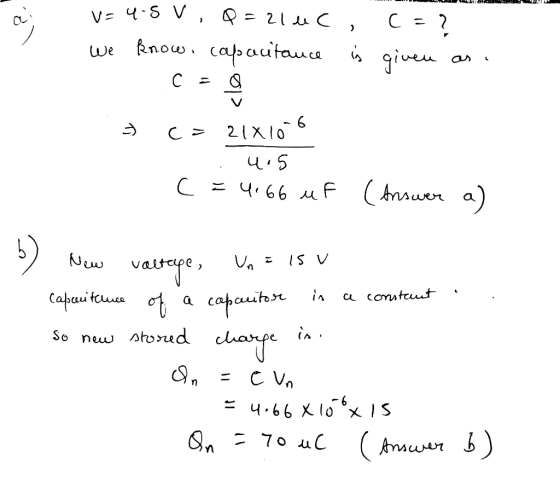

a.) A lab technician connects a 4.50 V battery to the plates of a capacitor. After waiting a while, the capacitor reaches a maximum amount of 21.0 µC of stored charge. What is the value of the capacitance (in µF)?
b.) The capacitor is disconnected from the battery, discharged, and then connected to a 15.0 V battery. Again, a long enough time is waited for the capacitor to fully charge. How much charge (in µC) is stored now? (Assume the capacitor can handle this new voltage without failing.)
Homework Answers
Add Answer to:
a.) A lab technician connects a 4.50 V battery to the plates of
a capacitor. After...
1. (a) When a battery is connected to the plates of a 6.00-µF capacitor, it stores...
1. (a) When a battery is connected to the plates of a 6.00-µF capacitor, it stores a charge of 144.0 µC. What is the voltage of the battery? V (b) If the same capacitor is connected to another battery and 18.0 µC of charge is stored on the capacitor, what is the voltage of the battery? V
2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20...
2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20 uF to a 6.00 V battery. a. The three capacitors are connected in series across the battery. i. Find the equivalent capacitance of the circuit. ii. Calculate the total charge stored in the combination. b. The three capacitors are now connected in parallel. i. What is equivalent capacitance? ii. What is the energy stored by the combination of the capacitors? 3. A graph of...
(a) When a 8.50-V battery is connected to the plates of a capacitor, it stores a...
(a) When a 8.50-V battery is connected to the plates of a capacitor, it stores a charge of 29.0 μC. What is the value of the capacitance? (b) If the same capacitor is connected to a 17.5-V battery, what charge is stored?
A student is working with a 2.75-µF capacitor, a 5.25-µF capacitor, and a 6.20-V battery. What...
A student is working with a 2.75-µF capacitor, a 5.25-µF capacitor, and a 6.20-V battery. What is the the charge (in µC) on each capacitor if the student connects the capacitors in the following ways. (a) in series across the battery 2.75-µF capacitor ____ µC 5.25-µF capacitor ____ µC (b) in parallel across the battery 2.75-µF capacitor ____ µC 5.25-µF capacitor ____ µC
QUESTION 5 A capacitor is fully charged by a battery. When the capacitor is still connected...
QUESTION 5 A capacitor is fully charged by a battery. When the capacitor is still connected to the battery, the distance between the two plates decreases. Which of the followings will remain the same? Select all that apply. (a) voltage across the capacitor (b) capacitance (c) charge stored in the capacitor (d) electric field between the two plates (e) electric potential energy stored in the capacitor QUESTION 6 A capacitor is fully charged by a battery. When the capacitor is...
A 5.00-HF parallel-plate capacitor is connected to a 12.0-V battery. After the capacitor is fully charged,...
A 5.00-HF parallel-plate capacitor is connected to a 12.0-V battery. After the capacitor is fully charged, the battery is disconnected without loss of any of the charge on the plates
A parallel-plate capacitor has capacitance 5.20 μF. The capacitor was origionaly connected to a 1.50 V...
A parallel-plate capacitor has capacitance 5.20 μF. The capacitor was origionaly connected to a 1.50 V battery? (b) If the battery is disconnected and the distance between the charged plates doubled, what is the energy stored? Note: When disconnected, the charge on the capacitor must remain the same as when disconnected. A parallel-plate capacitor has capacitance 5.20 μF. The capacitor was origionaly connected to a 1.50 V battery? (c) The battery is subsequently reattached to the capacitor, but the plate...
Suppose you have a 9 V battery, a C1 = 4.9 µF capacitor, and a C2...
Suppose you have a 9 V battery, a C1 = 4.9 µF capacitor, and a C2 = 8.3 µF capacitor. Find the charge stored in the combination if the capacitors are connected to the battery in parallel. You need to express your answer in µC. 1 µC = 10-6 C
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor...
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor C1 is 12 µF and the capacitor C2 is unknown. The charge on capacitor C2 is 140 µC. a) What is the equivalent capacitance? b) What is the capacitance of capacitor C2? c) What is the voltage of each capacitor?
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. (a) What is the capacitance of the capacitor? (b) What is the charge on the capacitor (i.e., the charge on its positive plate)?
2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20 uF to a 6.00 V battery. a. The three capacitors are connected in series across the battery. i. Find the equivalent capacitance of the circuit. ii. Calculate the total charge stored in the combination. b. The three capacitors are now connected in parallel. i. What is equivalent capacitance? ii. What is the energy stored by the combination of the capacitors? 3. A graph of...
A 5.00-HF parallel-plate capacitor is connected to a 12.0-V battery. After the capacitor is fully charged, the battery is disconnected without loss of any of the charge on the plates
