Five batch jobs (A,D,I,J,K) arrive at a computer at the same time(at time=0). The quantum size...

Five batch jobs (A,D,I,J,K) arrive at a computer at the same time(at time=0). The quantum size of this system is 2 units of time. For each of the scheduling methods given below, calculate the average waiting time for the 5 jobs. Show (use timing diagrams) and explain your steps. You can prepare it by hand or on a computer.

The following jobs and the estimated running times are defined:

A

2

B

6

C

4

D

8

E

2

F

10

G

4

H

8

I

4

J

12

K

4

L

6

M

10

N

14

Note: Whenever needed, assume processing order as A, B, C, D, ...

Hint: For example, job A requires 10 units of time of CPU time and arrives at the system at time=0. If it leaves the system at time=30, the waiting time for this job is (30-0)-10=20 units of time.

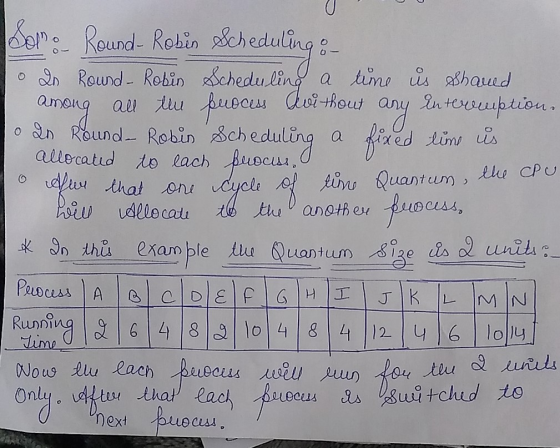

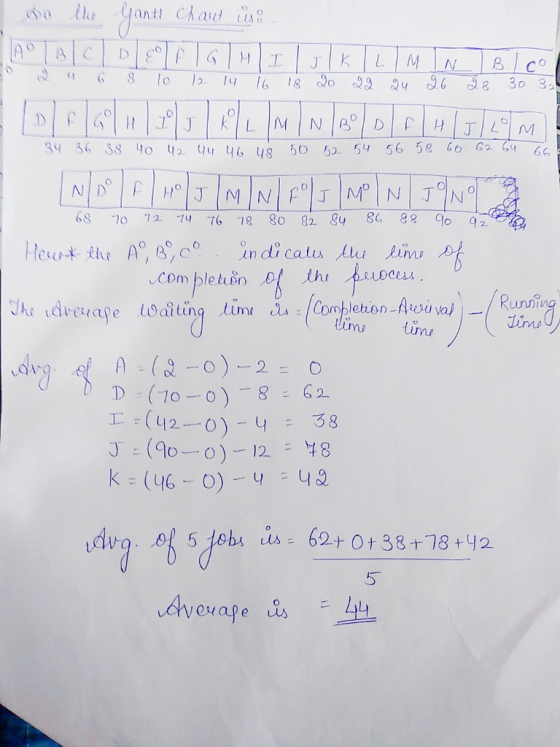

  1. a) Round robin scheduling

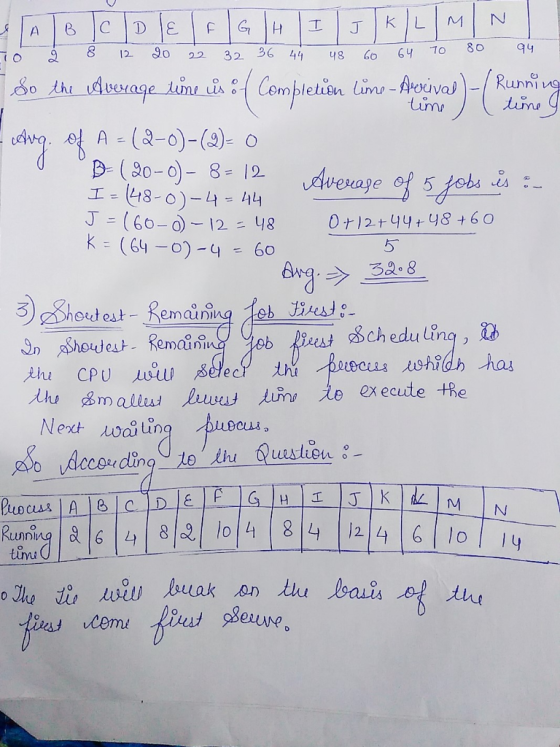

  2. b) First-come first-served (FIFO) scheduling

  3. c) Shortest-Remaining-Job-First(SRJB) scheduling
