A 3.2 kg plant is hanging 35 cm from the ceiling of a porch from 2...

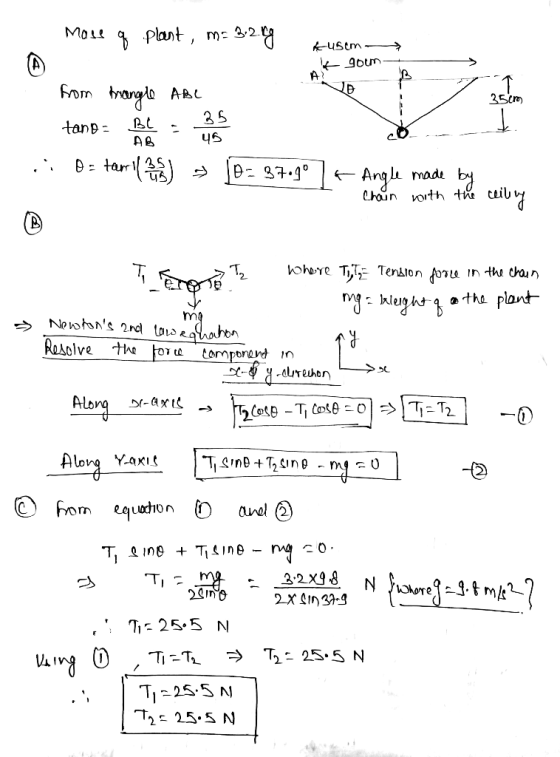

A 3.2 kg plant is hanging 35 cm from the ceiling of a porch from 2 thin chains whose anchor points on the ceiling are 90 cm apart. The chains are the same length and connect to the plant at the same point. A. What angle(s) do the chains make with the ceiling? B. Draw the free body diagram for the plant. Write out the Newtons’ 2nd law equations for the plant. C. What is the tension in the chains?
Homework Answers
Add Answer to:
A 3.2 kg plant is hanging 35 cm from the ceiling of a porch from
2...
