Three concentric spherical shells r=1, r=2, and r=3 m, respectively, have charge distributions 1, -2, and...

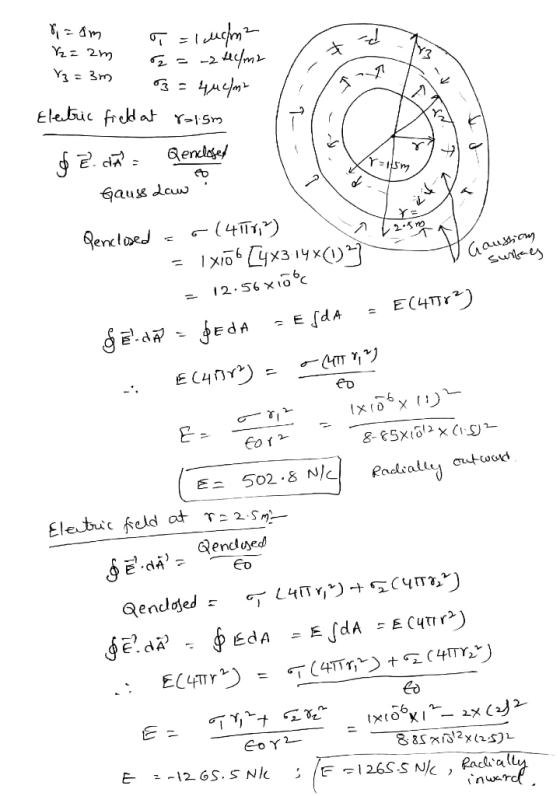

Three concentric spherical shells r=1, r=2, and r=3 m, respectively, have charge distributions 1, -2, and 4 uC/m^2. Find E at r=1.5 and 2.5 m.
Detailed explanation please
Homework Answers
Add Answer to:
Three concentric spherical shells r=1, r=2, and r=3 m,
respectively, have charge distributions 1, -2, and...
o 3-16 Problems: 3.22 Four concentric spherical shells of radii 0.2m, 0.4 m, 0.6 m, and...
o 3-16 Problems: 3.22 Four concentric spherical shells of radii 0.2m, 0.4 m, 0.6 m, and 0,8 m are supporting uniform charge distributions of 10, -2, -0.5, and 0.5u C/m2, respectively Determine the E field at a radius of (a) 0.1 m, (b) 0.3 m, (c) 0.5 m () 07 m. and (e) 1 m.
PHYS-1032-001 TEST#2 Name Problem #3 Chapter 21 (5 points) Two concentric spherical shells have r...
PHYS-1032-001 TEST#2 Name Problem #3 Chapter 21 (5 points) Two concentric spherical shells have radiir,-1 m and rzr3 m. The uniformly distributed charge on inner shell is q -2nC and the charge on the outer sphere is q+4nc. Calculate the potential at a distance r-4 m from the center of the spherical shells. Calculate the difference of potentials between the outer and inner spherical shells. r you release charged particle of mass m. 1 mg with charge Q-6 a) b)...
Two charged concentric spherical shells have radii 11.8 cm and 14.0 cm. The charge on the...
Two charged concentric spherical shells have radii 11.8 cm and 14.0 cm. The charge on the inner shell is 4.81 × 10- 8 C and that on the outer shell is 2.46 × 10- 8 C. Find the electric field (a) at r = 12.7 cm and (b) at r = 22.7 cm.
Two charged concentric spherical shells have radii 10.4 cm and 16.8 cm. The charge on the...
Two charged concentric spherical shells have radii 10.4 cm and 16.8 cm. The charge on the inner shell is 5.63 × 10- 8 C and that on the outer shell is 1.99 × 10- 8 C. Find the electric field (a) at r = 13.9 cm and (b) at r = 38.2 cm.
Two concentric spherical shells of radii 4 cm and 3 cm has a charge of 5...
Two concentric spherical shells of radii 4 cm and 3 cm has a charge of 5 nC. The potential difference across the capacitor is ?
The cross section of two concentric spherical shells is shown in the figure, with radii as...
The cross section of two concentric spherical shells is shown in the figure, with radii as given. The charge density on the WHOLE inner shell is -25.0 nc/m^2 and the charge density on the whole outer shell is -55.0nC/m^2. The inner and outer surfaces are respectively denoted by A=28mm,B=30mm,C=49mm and D=51mm. (epsilon0=8.85*10^-12 C^2/N*m^2) A) what is the charge density built up on surface A? B) what is the charge density built up on surface B? C) Use Gauss's law to...
Two concentric spherical shells of diameter 13.6 cm and 29.0 cm are used to form a...
Two concentric spherical shells of diameter 13.6 cm and 29.0 cm are used to form a spherical capacitor. The charges on the inner and outer shells are −9.00 µC and +9.00 µC, respectively. (a) Determine the potential difference from the inner to the outer shell. Use the fact that the magnitude of the electric field at a distance r from the center of the inner shell is given by E = KQ/r2, where K is Coulomb's constant and Q is...
Two isolated, concentric, conducting spherical shells have radii R1 = 0.520 m and R2 = 1.10...
Two isolated, concentric, conducting spherical shells have radii R1 = 0.520 m and R2 = 1.10 m, uniform charges q1 = +2.80 μC and q2 = +1.60 μC, and negligible thicknesses. What is the magnitude of the electric field E at radial distance With V = 0 at infinity, what is V at , (e) r = 1.10 m, (f) r = 0.790 m, (g) r = 0.520 m, (h) r = 0.150 m, and (i) r = 0?
Two concentric charged metal spherical shells are held fixed in space. All other charges are very...
Two concentric charged metal spherical shells are held fixed in space. All other charges are very far away. The smaller shell (call it shell A) has an inner diameter of 5 [cm], an outer diameter of 10 [cm], and a total charge of +10 [nC]. The larger shell (call is shell B) has an inner diameter of 25 [cm], an outer diameter of 30 [cm], and a total charge of +10 [nC]. Find the electric field (Both magnitude and direction)...
Two concentric charged spherical conducting shells of radii 3 and 4 cm carry equal and opposite...
Two concentric charged spherical conducting shells of radii 3
and 4 cm carry equal and opposite charges of magnitude 8 * 10^-6 C
as shown in Figure 2.
a. find the electric field at r = 4cm
b. Find the electric potential at r=2 cm.
2. Two concentric charged spherical conducting she l1s of radii 3 and 5 cm carry equal and oppositecharges of taagnitude 8 x 10-6 c as shovn in Figure 2. a) Find the electric field at...
o 3-16 Problems: 3.22 Four concentric spherical shells of radii 0.2m, 0.4 m, 0.6 m, and 0,8 m are supporting uniform charge distributions of 10, -2, -0.5, and 0.5u C/m2, respectively Determine the E field at a radius of (a) 0.1 m, (b) 0.3 m, (c) 0.5 m () 07 m. and (e) 1 m.
PHYS-1032-001 TEST#2 Name Problem #3 Chapter 21 (5 points) Two concentric spherical shells have radiir,-1 m and rzr3 m. The uniformly distributed charge on inner shell is q -2nC and the charge on the outer sphere is q+4nc. Calculate the potential at a distance r-4 m from the center of the spherical shells. Calculate the difference of potentials between the outer and inner spherical shells. r you release charged particle of mass m. 1 mg with charge Q-6 a) b)...
Two concentric charged spherical conducting shells of radii 3
and 4 cm carry equal and opposite charges of magnitude 8 * 10^-6 C
as shown in Figure 2.
a. find the electric field at r = 4cm
b. Find the electric potential at r=2 cm.
2. Two concentric charged spherical conducting she l1s of radii 3 and 5 cm carry equal and oppositecharges of taagnitude 8 x 10-6 c as shovn in Figure 2. a) Find the electric field at...
