Given the data-bits m = 11010110 , determine the number of k (parity-bits) by using Hamming...

Given the data-bits

m = 11010110

, determine the number of k (parity-bits) by using Hamming

Code requirements. Illustrate the error detection and correction scheme using Hamming code

method, for both the sender and receiver to detect an error at the following positions:

a.

6

th

bit position

.

b.

11

th

bit position

.

Assume an

odd-parity

scheme for this problem. You must show detailed calculations to receive

full-credit.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

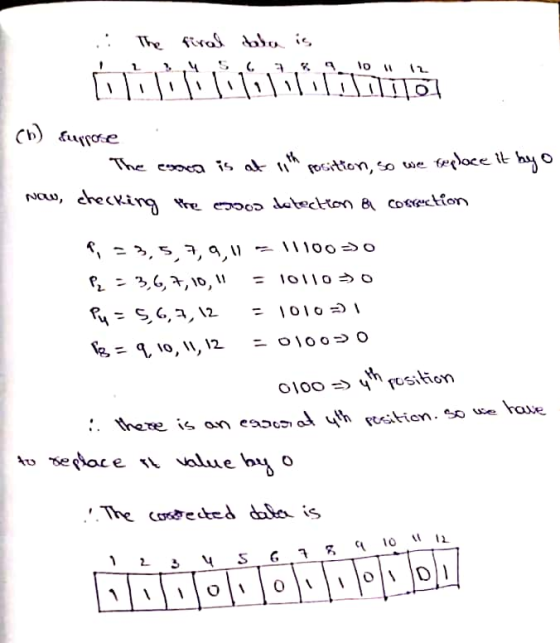

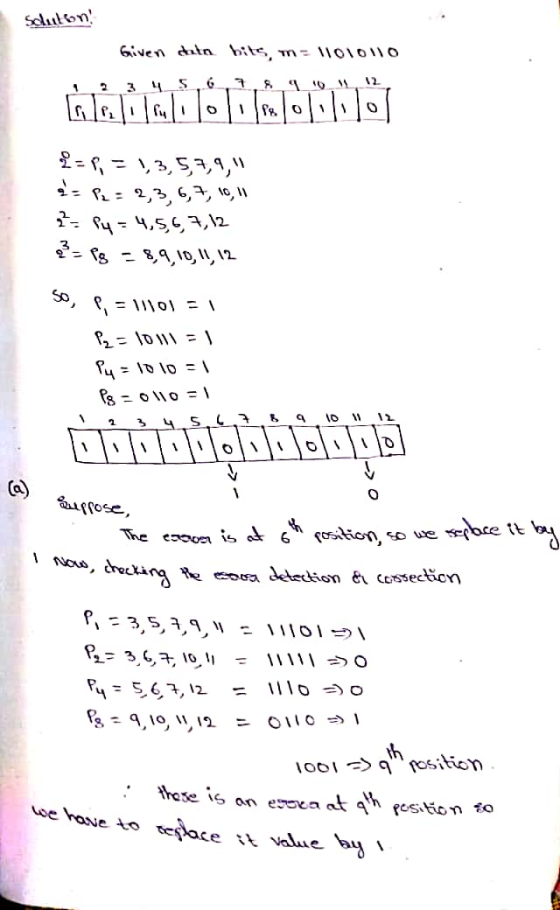

Answer :

0 0
Add a comment
