A capacitor and a resistor that are in series are initially connected to a power supply...

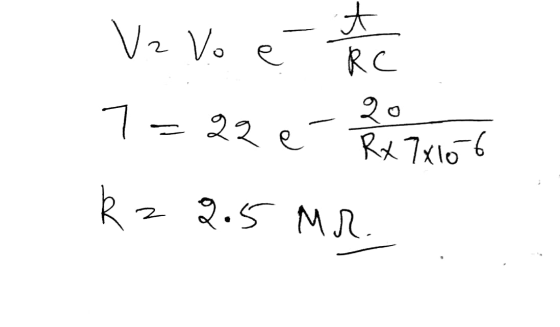

A capacitor and a resistor that are in series are initially connected to a power supply with 22 volts. The power supply is then cut-off and the capacitor begins to discharge through the resistor. At t = 20 s, the voltage across the capacitor drops to 7 volts. What is the resistance of the resistor, in mega ohms (MΩ) if the capacitance, C = 7 μF ? Please give your answer in two decimal places.
Homework Answers
Add Answer to:
A capacitor and a resistor that are in series are initially
connected to a power supply...
A resistor and capacitor are connected in series to a power supply of 50 Volts. The...
A resistor and capacitor are connected in series to a power supply of 50 Volts. The resistor has a value of 30000 ohms and the Capacitor is initially uncharged. After a time of 16.0 seconds, the capacitor is charged 72% fully charged. a) What is the capacitance of capacitor in this circuit? b) What is the time constant of this system? c) What is the current through the resistor at t= 20.0 seconds? d) What is the potential difference across...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as show...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
The discharge curve for a capacitor connected in series with a resistor is shown below, If...
The discharge curve for a capacitor connected in series with a resistor is shown below, If the capacitance of the capacitor is 22.50 farads, what is the resistance of the resistor? Please calculate the time constant for this circuit. After two time constants what is the potential across capacitor? Please calculate the amount of charge on the capacitor 25.00 minutes after discharge has started, Once capacitor is fully discharged, the charging process begun. How much time, after charging begins, is...
A 1.15 μF capacitor, initially charged to 13.5 V , discharges when it is connected in...
A 1.15 μF capacitor, initially charged to 13.5 V , discharges when it is connected in series with a resistor. Part A What resistance is necessary to cause the capacitor to have only 37% of its initial charge 2.00 s after starting? (MΩ ) Part B What is the voltage across the capacitor at t = 5 τ if the capacitor is instead charged by the same battery through the same resistor? (v)
48. If a 5.6pF capacitor, a 49.3pF capacitor and a 35.5pF capacitor are all connected in...
48. If a 5.6pF capacitor, a 49.3pF capacitor and a 35.5pF capacitor are all connected in series, then what is the total capacitance of this series combination in pico Farads? 50. If the Thevenin equivalent for a circuit is a 5V voltage source in series with a 5.3kΩ resistor, then what is the Norton equivalent current for this circuit in milliamps? 51. If the Norton equivalent for a circuit is a 2.2mA current source in parallel with a 23kΩ resistor,...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ...
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ resistor and an emf source with E= 140 V negligible internal resistance. Just after the circuit is completed, what is the voltage drop across the capacitor? Just after the circuit is completed, what is the voltage drop across the resistor? Just after the circuit is completed, what is the charge on the capacitor? Just after the circuit is completed, what is the current through...
A capacitor that is initially uncharged is connected in series with a resistor and a 407.1...
A capacitor that is initially uncharged is connected in series with a resistor and a 407.1 Vemf source with negligible internal resistance. Just after the circuit is completed, the current through the resistor is 0.850 mAand the time constant for the circuit is 6.20 s. Part A: What is the resistance of the resistor? Part B: What is the capacitance of the capacitor
A 9.0-Ω resistor and a 6.0-Ω resistor are connected in parallel across a power supply, and...
A 9.0-Ω resistor and a 6.0-Ω resistor are connected in parallel across a power supply, and the current through the 9.0-Ω resistor is found to be 0.25 A. Find the voltage setting of the power supply. A series RC circuit for which C = 6.0 μF, R = 2.0 × 106 Ω, and ε = 20 V. Find the maximum charge on the capacitor after a switch in the circuit is closed.
A capacitor that is initially uncharged is connected in series with a resistor and an emf...
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
The discharge curve for a capacitor connected in series with a resistor is shown below, If the capacitance of the capacitor is 22.50 farads, what is the resistance of the resistor? Please calculate the time constant for this circuit. After two time constants what is the potential across capacitor? Please calculate the amount of charge on the capacitor 25.00 minutes after discharge has started, Once capacitor is fully discharged, the charging process begun. How much time, after charging begins, is...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
