The casting process cycle time is limited by the time it takes for the thickest part...

The casting process cycle time is limited by the time it takes for the thickest part of the cast to solidify. The thickest part of the engine block is approximately 3 cm and takes approximately 30 minutes to solidify. Calculate the maximum thickness of a feature allowable to achieve a solidification time of 10 minutes.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

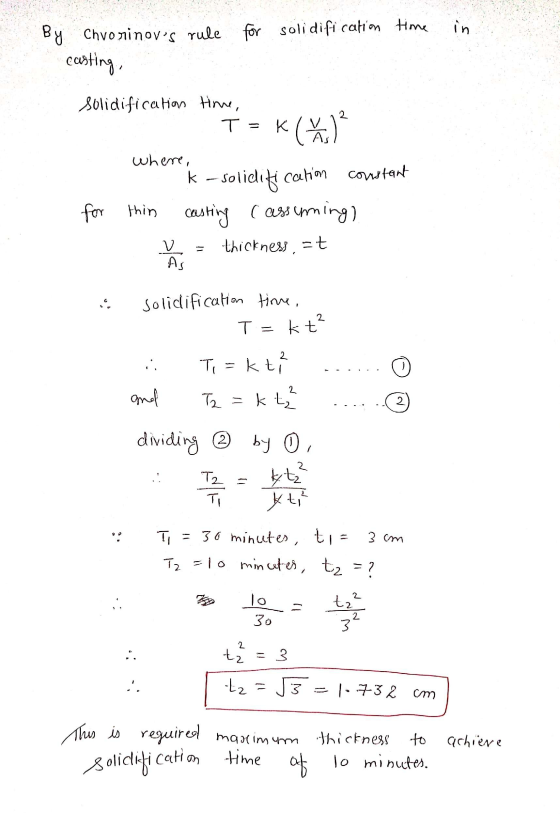

Answer #1

0 0
Add a comment
