For t ≥ 0, a current source delivers iS(t) = 10 sin(2000πt) mA to two 0.33‐μF...

For t ≥ 0, a current source delivers iS(t) = 10 sin(2000πt) mA to two 0.33‐μF capacitors connected in parallel. Plot υC(t) versus time when υC(0) = −5 V. use the ac current source—the frequency is in Hz—and set the other parameters appropriately. The capacitors are –5 V. Then, simulate the output using the transient analysis. What is the voltage across the capacitors at t = 1.0 and 1.5 ms?

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

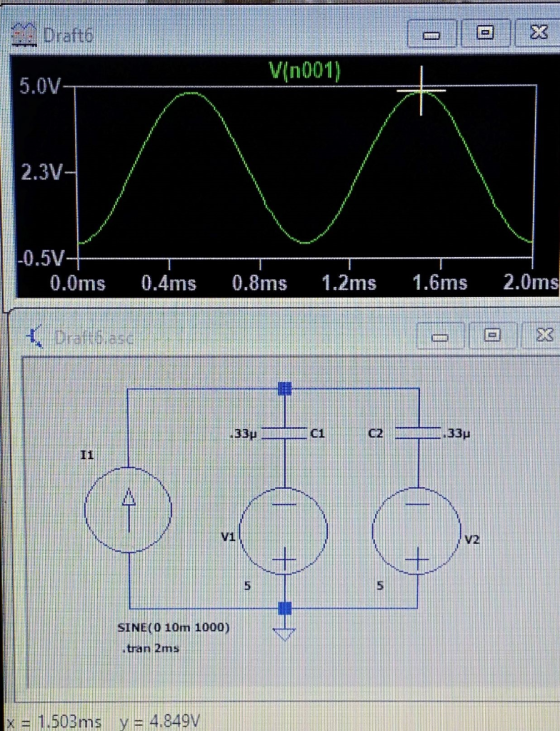

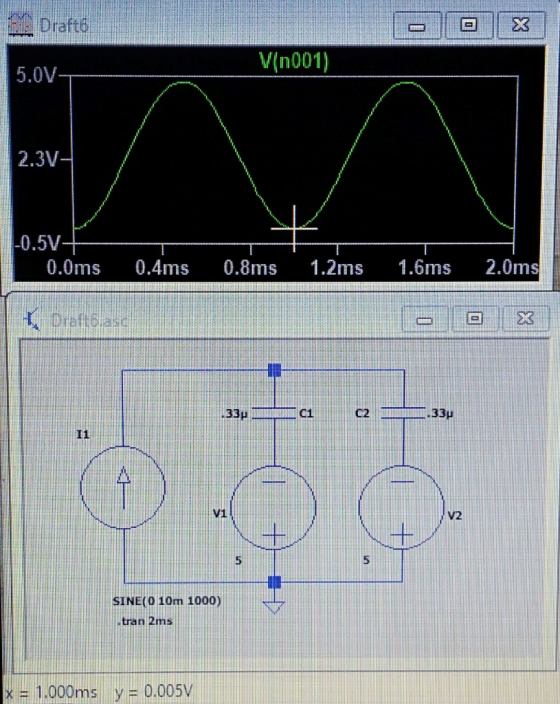

The initial voltages of capacitors are shown by connecting series voltage sources of -5 Volt At t=1ms the voltage is aprroximately 0 V whereas at t = 1.5ms it is approximately 4.85 Volt. Snaps are attached.

0 0
