A ball is attached to the end of a string hanging from the roof of a...

A ball is attached to the end of a string hanging from the roof of a subway car. The
train goes around a curve, turning to the left. You know that the car is traveling at
60 km/hr.
• Which way will the ball appear to swing? Why?
• If the ball swings at an angle of 15◦, what is the radius of curvature of the curve
in the tracks

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

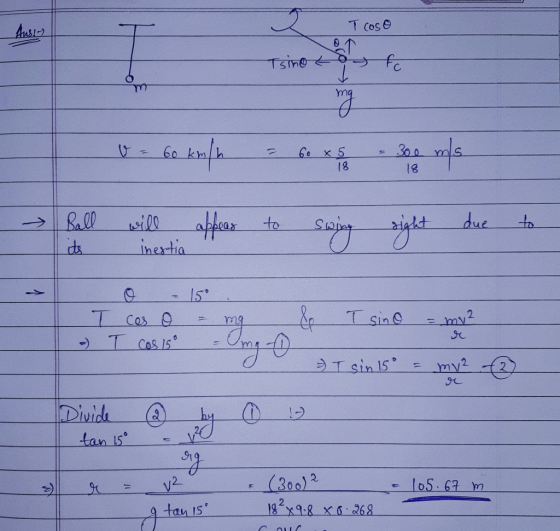

Answer #1

0 0
Add a comment
