Express the following in one’s complement format using 8 bits: a. (‒46)base 8 : b. –(98)base...

Question

Question

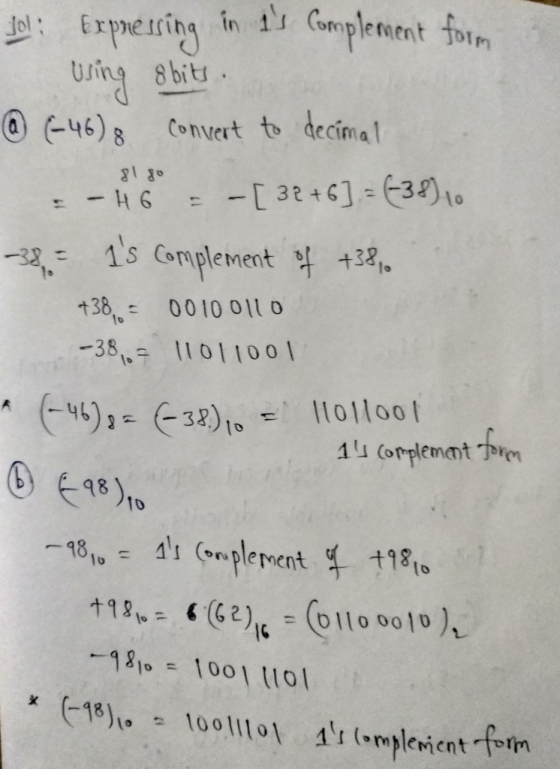

Express the following in one’s complement format using 8 bits:

a. (‒46)base 8 :

b. –(98)base 10 :

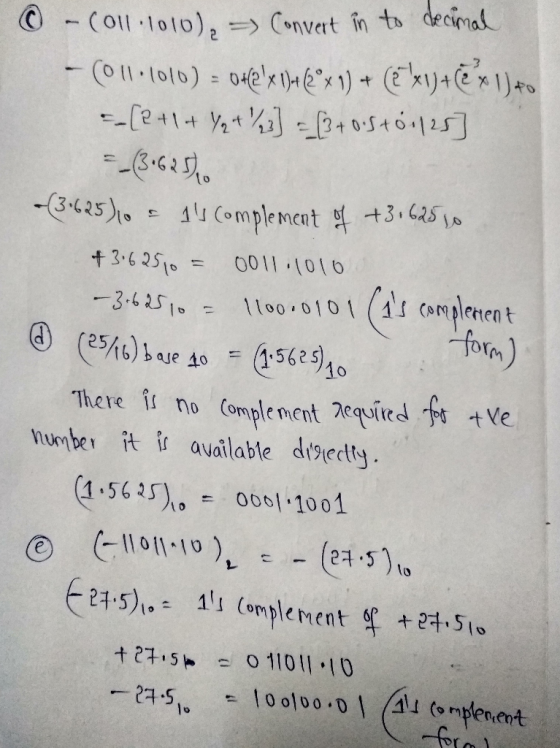

c. ‒(011.1010)base 2 :

d. (2 5/16)base 10 :

e. (‒1 1011.10)base 2 :

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
