Ques 1.) Give examples of time-domain signals whose Fourier series coefficients. ----> Have purely real coefficients....

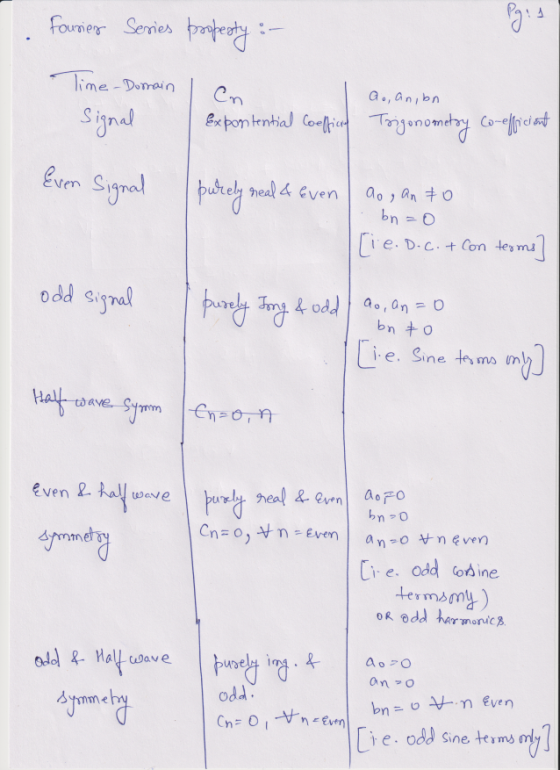

Ques 1.) Give examples of time-domain signals whose Fourier
series coefficients.

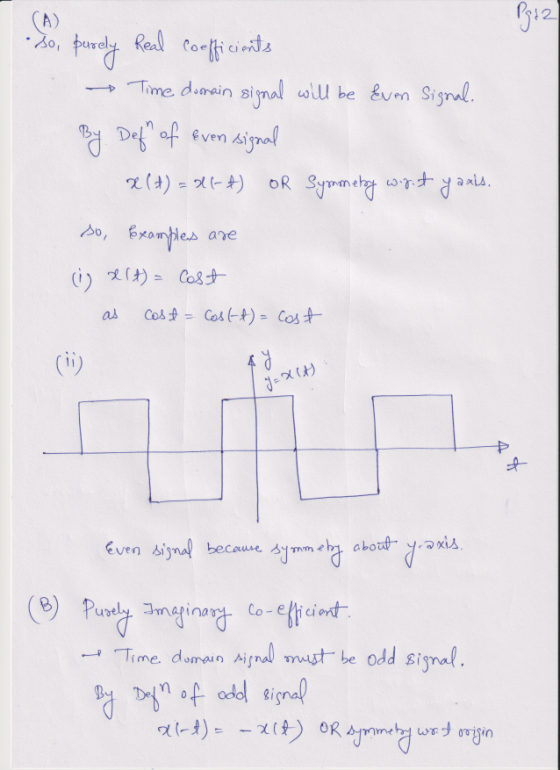

----> Have purely real coefficients.

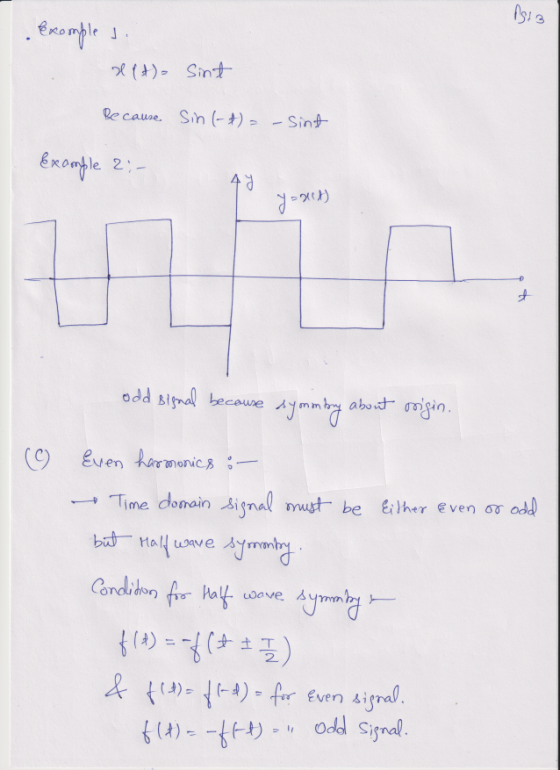

----> Have purely imaginary coefficients.

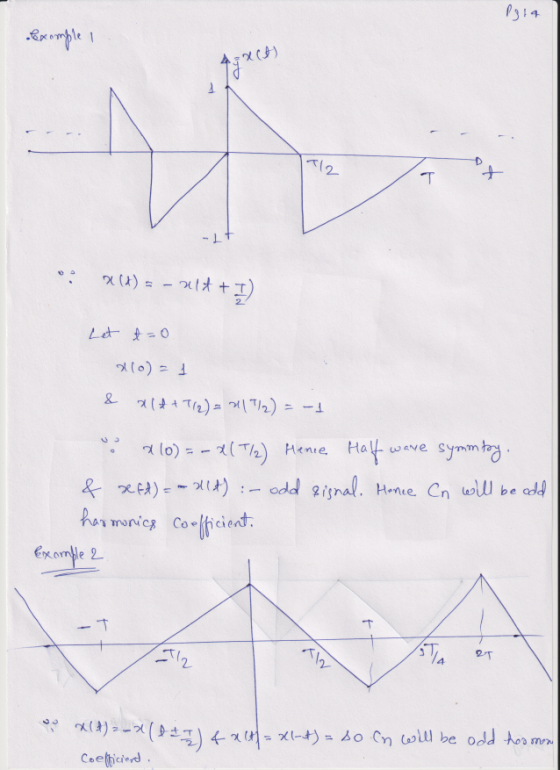

----> Have only odd/even harmonics
Homework Answers
Add Answer to:
Ques 1.) Give examples of time-domain signals whose Fourier
series coefficients.
----> Have purely real coefficients....
