Determine the time-domain value of the homogeneous response of the system at n=2 if the difference...

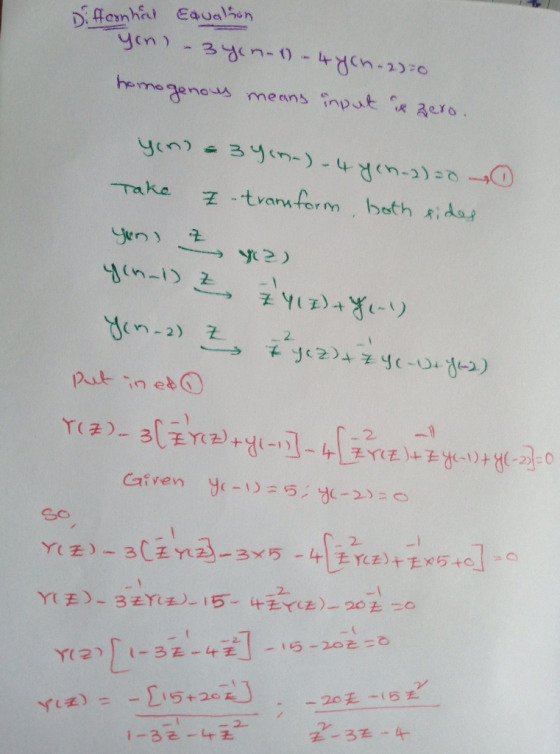

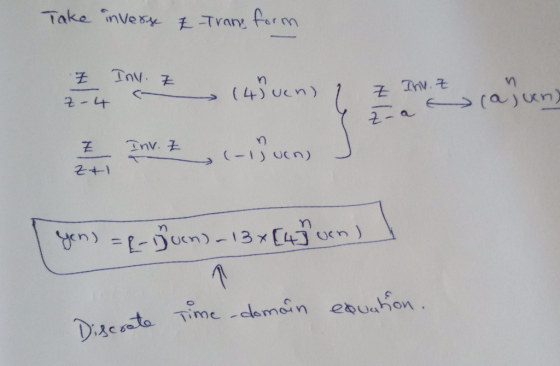

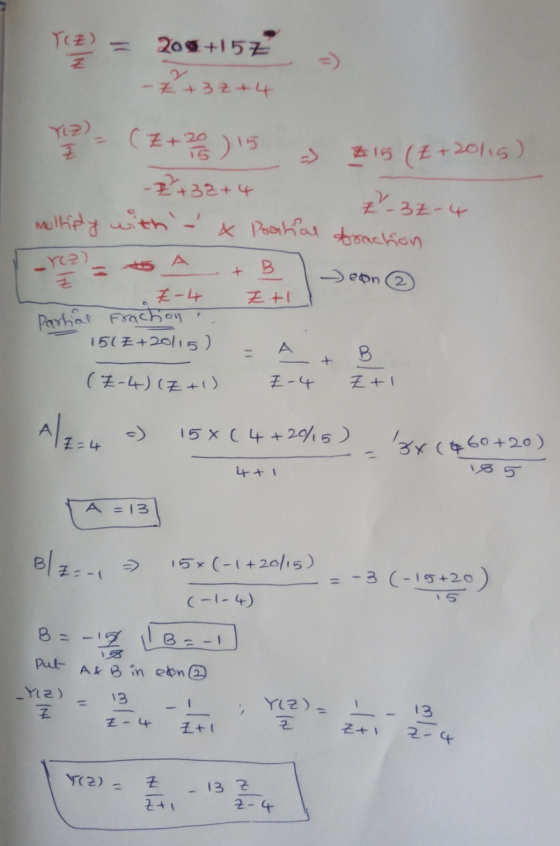

Determine the time-domain value of the homogeneous response of the system at n=2 if the difference equation is y(n)-3y(n-1)-4y(n-2)=0 if the initial conditions are y(-1)=5 and y(-2)=0?
Homework Answers
Add Answer to:
Determine the time-domain value of the homogeneous response of
the system at n=2 if the difference...
Question 2. Consider the DT system described by the difference equation y[n] - 0.2y[n-1]xIn-1] De...
Question 2. Consider the DT system described by the difference equation y[n] - 0.2y[n-1]xIn-1] Determine directly yl-1]-1. in the time domain its zero-input response for the initial value of
Question 2. Consider the DT system described by the difference equation y[n] - 0.2y[n-1]xIn-1] Determine directly yl-1]-1. in the time domain its zero-input response for the initial value of
(20 pts.) Determine the response of the system described by the difference equation 7. 1 1 y(n) yn 1)n2)x(n) n for inpu...
(20 pts.) Determine the response of the system described by the difference equation 7. 1 1 y(n) yn 1)n2)x(n) n for input signal x(n) = (;) u(n) under the following initial conditions y(-1) 1, y-2) 0.5
(20 pts.) Determine the response of the system described by the difference equation 7. 1 1 y(n) yn 1)n2)x(n) n for input signal x(n) = (;) u(n) under the following initial conditions y(-1) 1, y-2) 0.5
Question 3. Consider the DT system described by the difference equation y[n+1]+ 0.3 y[n] 0.4x[n] Using...
Question 3. Consider the DT system described by the difference equation y[n+1]+ 0.3 y[n] 0.4x[n] Using the Z-transform, determine the system's zero-input response for the initial value of y[0] 1/3. The solution directly in the time domain is not accepted
For a causal LTI discrete-time system described by the difference equation:
For a causal LTI discrete-time system described by the difference equation: y[n] + y[n – 1] = x[n] a) Find the transfer function H(z).b) Find poles and zeros and then mark them on the z-plane (pole-zero plot). Is this system BIBO? c) Find its impulse response h[n]. d) Draw the z-domain block diagram (using the unit delay block z-1) of the discrete-time system. e) Find the output y[n] for input x[n] = 10 u[n] if all initial conditions are 0.
Please solved it in time domain No z domain Consider the following discrete-time LTI system ?[?]...
Please solved it in time domain No z domain Consider the following discrete-time LTI system ?[?] − 0.3?[? − 1] − 0.04?[? − 2] = ?[?] + 2?[? − 1] with the initial conditions ?[−1] = 3, and ?[−2] = 0, and the input ?[?] = 3??[?]. (a) Determine the total solution, analytically. (b) Determine the total solution using MATLAB. Compare the results between (a) and (b) by plotting the difference for 0 ≤ ? ≤ 20 (c) Determine the...
P2.19 A linear and time-invariant system is described by the difference equation y(n) 0.5y(n 10.25y(n 2)-x(n)...
P2.19 A linear and time-invariant system is described by the difference equation y(n) 0.5y(n 10.25y(n 2)-x(n) + 2r(n - 1) + r(n -3) 1. Using the filter function, compute and plot the impulse response of the system over 0n100. 2. Determine the stability of the system from this impulse response. 3. If the input to this system is r(n) 5 3 cos(0.2Tm) 4sin(0.6Tn)] u(n), determine the 200 using the filter function response y(n) over 0 n
2) An LTI DT system is defined by the difference equation: y[n] = -0.4yIn - 1]...
2) An LTI DT system is defined by the difference equation: y[n] = -0.4yIn - 1] + x[n]. a) Derive the impulse response of the system. (2 pt) b) Determine if the system is BIBO stable. (1 pt) c) Assuming initial conditions yl-1) = 1, derive the complete system response to an input x[n] = u[n] - u[n-2), for n > 0.(2 pt) d) Derive the zero-state system response to an input z[n] = u[n] - 2u[n - 2] +...
Determine the response of the following system to an input x[n] = u[n] with initial conditions...
Determine the response of the following system to an input x[n] = u[n] with initial conditions y[-1] = 2, y[-2] = 0. y[n] – 5/6y[n – 1] + 1/6y[n – 2] = 5x [n – 1] + x[n – 2]
The difference equation y(n+2) -3y(n+1)+2y(n) = 1 for n 20 has initial conditions y(0)= -1 and...
The difference equation y(n+2) -3y(n+1)+2y(n) = 1 for n 20 has initial conditions y(0)= -1 and y(1) 1 1. Find the value of y(3) using iteration. (a) Find the particular solution of y(n) (b) Find Y(z). (It should only be expressed as the ratio of two polynomials) (c)
The difference equation y(n+2) -3y(n+1)+2y(n) = 1 for n 20 has initial conditions y(0)= -1 and y(1) 1 1. Find the value of y(3) using iteration. (a) Find the particular solution of...
1: (a) Determine the general solution of the difference equation y[n] = 3y[n - 1] +...
1: (a) Determine the general solution of the difference equation y[n] = 3y[n - 1] + 4y[n - 2] + x[n] + 2x[n – 1]
Question 2. Consider the DT system described by the difference equation y[n] - 0.2y[n-1]xIn-1] Determine directly yl-1]-1. in the time domain its zero-input response for the initial value of
Question 2. Consider the DT system described by the difference equation y[n] - 0.2y[n-1]xIn-1] Determine directly yl-1]-1. in the time domain its zero-input response for the initial value of
(20 pts.) Determine the response of the system described by the difference equation 7. 1 1 y(n) yn 1)n2)x(n) n for input signal x(n) = (;) u(n) under the following initial conditions y(-1) 1, y-2) 0.5
(20 pts.) Determine the response of the system described by the difference equation 7. 1 1 y(n) yn 1)n2)x(n) n for input signal x(n) = (;) u(n) under the following initial conditions y(-1) 1, y-2) 0.5
Question 3. Consider the DT system described by the difference equation y[n+1]+ 0.3 y[n] 0.4x[n] Using the Z-transform, determine the system's zero-input response for the initial value of y[0] 1/3. The solution directly in the time domain is not accepted
P2.19 A linear and time-invariant system is described by the difference equation y(n) 0.5y(n 10.25y(n 2)-x(n) + 2r(n - 1) + r(n -3) 1. Using the filter function, compute and plot the impulse response of the system over 0n100. 2. Determine the stability of the system from this impulse response. 3. If the input to this system is r(n) 5 3 cos(0.2Tm) 4sin(0.6Tn)] u(n), determine the 200 using the filter function response y(n) over 0 n
2) An LTI DT system is defined by the difference equation: y[n] = -0.4yIn - 1] + x[n]. a) Derive the impulse response of the system. (2 pt) b) Determine if the system is BIBO stable. (1 pt) c) Assuming initial conditions yl-1) = 1, derive the complete system response to an input x[n] = u[n] - u[n-2), for n > 0.(2 pt) d) Derive the zero-state system response to an input z[n] = u[n] - 2u[n - 2] +...
Determine the response of the following system to an input x[n] = u[n] with initial conditions y[-1] = 2, y[-2] = 0. y[n] – 5/6y[n – 1] + 1/6y[n – 2] = 5x [n – 1] + x[n – 2]
The difference equation y(n+2) -3y(n+1)+2y(n) = 1 for n 20 has initial conditions y(0)= -1 and y(1) 1 1. Find the value of y(3) using iteration. (a) Find the particular solution of y(n) (b) Find Y(z). (It should only be expressed as the ratio of two polynomials) (c)
The difference equation y(n+2) -3y(n+1)+2y(n) = 1 for n 20 has initial conditions y(0)= -1 and y(1) 1 1. Find the value of y(3) using iteration. (a) Find the particular solution of...
1: (a) Determine the general solution of the difference equation y[n] = 3y[n - 1] + 4y[n - 2] + x[n] + 2x[n – 1]
