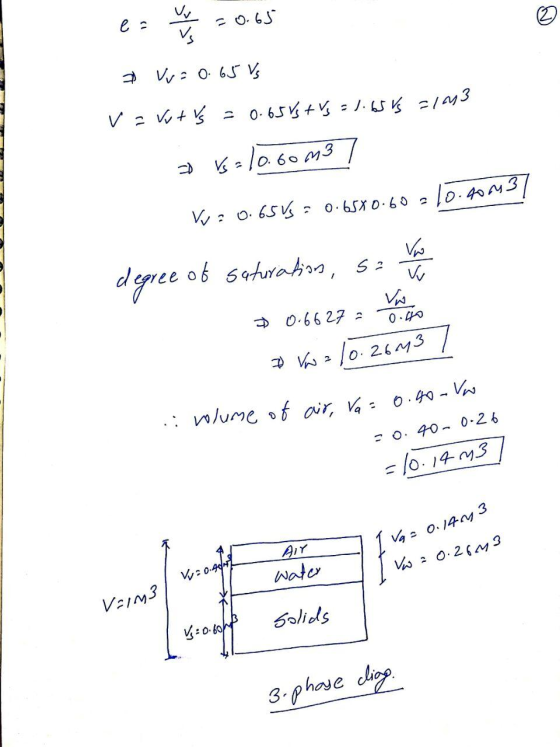

draw a three phase dıagram for 1m3 of soil solid and a video ratıo of 0.65...

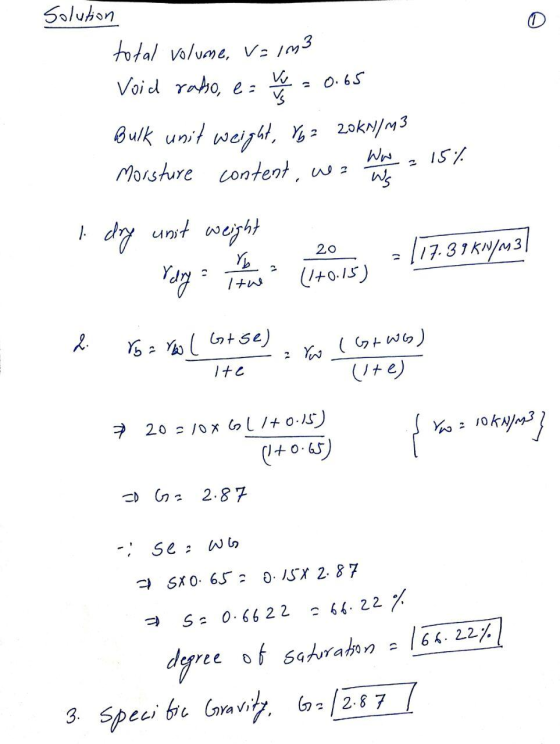

draw a three phase dıagram for 1m3 of soil solid and a video ratıo of 0.65 of the total unit weight is 20 kn/m3 and the moisture content is 15%
1. dry unit weight
2.degree of saturation
3. specific gravity
Homework Answers
