Construct a DFA for the simpler language, then use it to give the state diagram of...

Question

Question

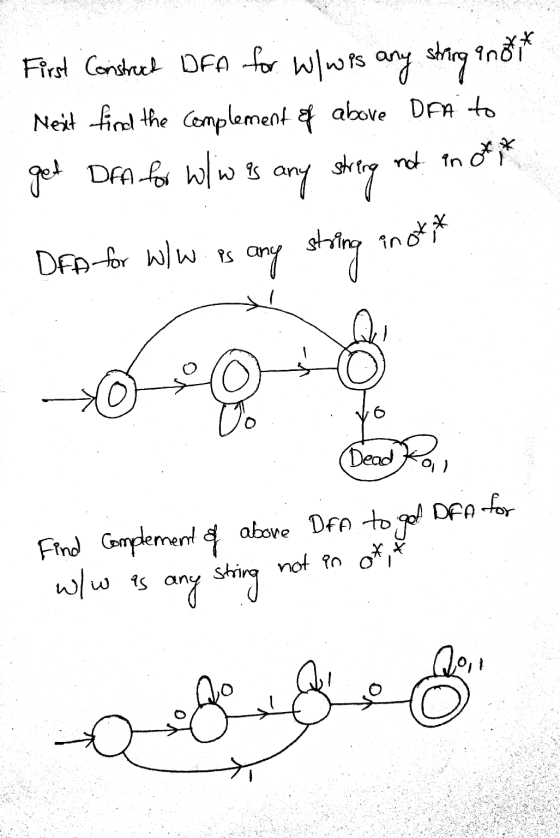

Construct a DFA for the simpler language, then use it to give the state diagram of a DFA for the language given. In all parts, Σ = {0, 1}

{w|w is any string not in 0^*1^*}

engineering Computer-Science

Answer 1

Answer #1

Answer 2
