The address bus of a computer has 16 address lines,A15−0. If the hexadecimal address assigned to...
The address bus of a computer has 16 address lines,A15−0. If the hexadecimal address assigned to one device is 7CA4 and the address decoder for that device ignores lines A8 and A9, what are all the addresses to which this device will respond?
Homework Answers
Converting 7CA4 into Binary we get 0111 1100 1010 0100.
Address lines respond to Bit 8 and bit 9

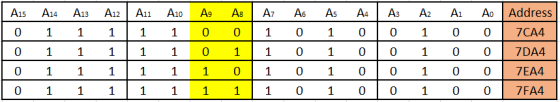

The devices will respond to the following addresses:
7CA4, 7DA4, 7EA4, 7FA4.
Explanation:
