1)A horizontal curve connects two tangents that deflect at an angle of 45o on a two...

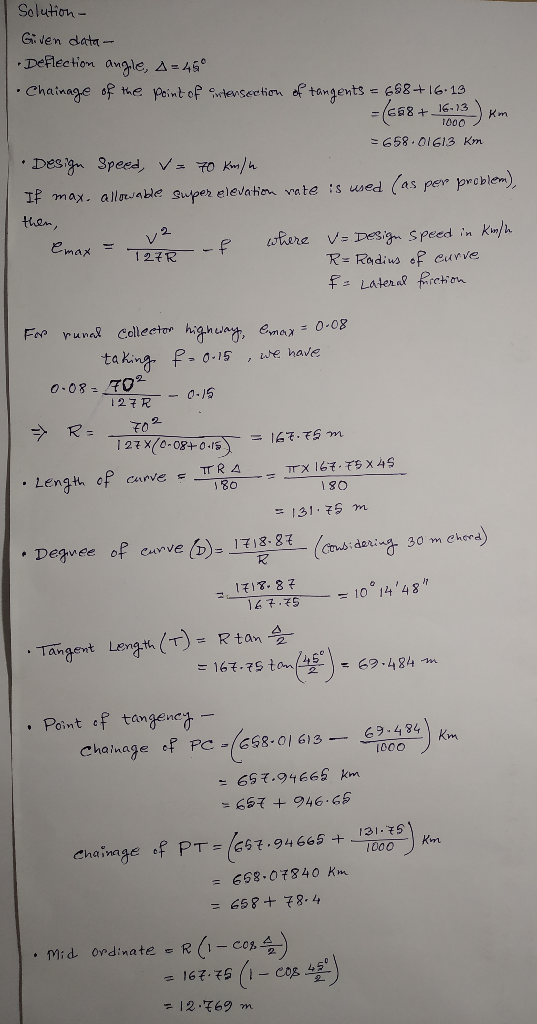

1)A horizontal curve connects two tangents that deflect at an angle of 45o on a two lane rural collector highway. The point of intersection of the tangents is located at station (658 + 16.13). If the design speed of the highway is 70 km/h and max. allowable superelevation rate is used. Determine the length of curve, degree of curve, point of curvature, point of tangency, and the ordinates.
2)For the information given in question 1above, and if the highway enters an urban area, and the normal crown cross section is to be maintained, what will be the min. radius to allow safe operation. If the design vehicle in such case is the city bus, what is the widening per lane, if needed? Draw cross sections illustrating your answers.
3). For the information given in question 1 above, and in case a spiral curve is to be used, what is the desirable length and corresponding shift for the spiral, tangent runout, and superelevation runoff. In case no spiral is used, what will be the length of the tangent runout and superelevation runoff. Draw cross sections at key locations illustrating your answers. Draw the profile of the centerline, and right
Homework Answers
Add Answer to:
1)A horizontal curve connects two tangents that deflect at an
angle of 45o on a two...
Information (A horizontal curve connects two tangents that deflect at an angle of 45o on a...
Information (A horizontal curve connects two tangents that deflect at an angle of 45o on a two lane rural collector highway. The point of intersection of the tangents is located at station (658 + 16.13). If the design speed of the highway is 70 km/h and max. allowable superelevation rate is used. ) the question is (For the information given in question 2 above, and if the highway enters an urban area, and the normal crown cross section is to...
highway geometric Q1) A. What are the Principal elements of the highway cross section? Draw the...
highway geometric
Q1) A. What are the Principal elements of the highway cross section? Draw the typical cross sections for a two-lane highway. (5 Points) B. Briefly discuss the various indirect design factors to be considered for geometric design of highway. (10 Points) Q2) A. What is Road Alignment? Briefly describe the requirements of an ideal alignment. (5 Points) B. An equal-tangent sag vertical curve has the initial grade is -3.2% and the final grade is +1.8%, PVI at 30+30...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h with a 6% superelevation. The central angle of the curve is 50 degrees and the PI is at station 212+67. What is the station of the PT? Determine the length of superelevation runoff and tangent runout for the associated curve transition section (assume a normal, 2% crown). Assume perception-reaction time of 2.5 sec and the deceleration rate for braking (a) is 11.2 ft/sec2
A circular curve connects two tangents with a 45 degree central angle. The point of intersection...
A circular curve connects two tangents with a 45 degree central angle. The point of intersection of the tangents is located at station 20+55. If the design speed of highway is 60mph, determine the stations of PC and PT. (Use e=0.08 and fs=0.12.)
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30°...
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30° Rt. D=50 Design Speed = 50 mph Two lane road in Southern Climate PI Station @ 64+20.00 Find and e from Table 13.8 or 13.9 (see handouts) Compute: R P= Compute the stations of: T.S. = S.C. = C.S. S.T. = Compute the Long Tangent and the Short Tangent PI 4 CPI To AC ST To S.C. C.S. SPI, SPI -Ls 20$ Cc 3...
2. A simple circular curve on a rural roadway is designed with a radius of 1500...
2. A simple circular curve on a rural roadway is designed with a radius of 1500 ft and a design speed of 55 mph. No spiral transition curve is to be used. The emax standard is 10%. The road has one lane per direction with 12-ft lanes and a 1% normal crown. (1.5 pts) a. Determine the design superelevation value (ed) and the corresponding lengths of superelevaion runoff (Lr) and tangent runout (Lt) (1.5 pts) b. Do a free-hand elevation...
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30°...
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30° Rt. D = 5° Design Speed = 50 mph Two lane road in Southern Climate PI Station @ 64+20.00 Find Land e from Table 13.8 or 13.9 (see handouts) Compute: As = Ac Y Xs es = R= P= TS Compute the stations of: T.S. = S.C. = C.S. = S.T. = Compute the Long Tangent and the Short Tangent Spiral Curve Equations Spiral...
no you dont. let someone else answer it. 1. Given the following horizontal curve and spiral...
no
you dont. let someone else answer it.
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30° Rt. D= 5° Design Speed = 50 mph Two lane road in Southern Climate PI Station @ 64+20.00 Find and e from Table 13.8 or 13.9 (see handouts) Compute: = R P= Compute the stations of: T.S. = S.C. C.S. = S.T. = Compute the Long Tangent and the Short Tangent Table 13.9 SPIRAL CURVE LENGTHS...
6:47 1 4 Search <Back Hw#3-2019.doc 15- 10. A horizontal curve is designed for a two-lane...
6:47 1 4 Search <Back Hw#3-2019.doc 15- 10. A horizontal curve is designed for a two-lane road in mountainous terrain. The following data are known. Intersection angle: 40 degrees Tangent length: 436.76 feet Station of Pl: 2700+10.65 fs- 0.12 e- 0.08 Determine the following. (a) Design speed (b) Station of the PC (c) Station of the PT (d) Deflection angle and chord length to the first even 100 ft station. 15-11. A proposed highway has two tangents of bearings N...
Problem 1 (15vpts) A proposed highway has two tangents of bearings N 75° 54' 36" E...
Problem 1 (15vpts) A proposed highway has two tangents of bearings N 75° 54' 36" E and N 53° 22' 30" W. The highway design engineer, attempting to obtain the best fit for the simple circular curve to join these tangents, decides that the external ordinate is to be 78.00 ft. The Pl is at station 65+43.21. Determine: (a) The external angle of the curve (A) (b) The radius of the curve (d) The station of the PC (f) The...
highway geometric
Q1) A. What are the Principal elements of the highway cross section? Draw the typical cross sections for a two-lane highway. (5 Points) B. Briefly discuss the various indirect design factors to be considered for geometric design of highway. (10 Points) Q2) A. What is Road Alignment? Briefly describe the requirements of an ideal alignment. (5 Points) B. An equal-tangent sag vertical curve has the initial grade is -3.2% and the final grade is +1.8%, PVI at 30+30...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h with a 6% superelevation. The central angle of the curve is 50 degrees and the PI is at station 212+67. What is the station of the PT? Determine the length of superelevation runoff and tangent runout for the associated curve transition section (assume a normal, 2% crown). Assume perception-reaction time of 2.5 sec and the deceleration rate for braking (a) is 11.2 ft/sec2
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30° Rt. D=50 Design Speed = 50 mph Two lane road in Southern Climate PI Station @ 64+20.00 Find and e from Table 13.8 or 13.9 (see handouts) Compute: R P= Compute the stations of: T.S. = S.C. = C.S. S.T. = Compute the Long Tangent and the Short Tangent PI 4 CPI To AC ST To S.C. C.S. SPI, SPI -Ls 20$ Cc 3...
2. A simple circular curve on a rural roadway is designed with a radius of 1500 ft and a design speed of 55 mph. No spiral transition curve is to be used. The emax standard is 10%. The road has one lane per direction with 12-ft lanes and a 1% normal crown. (1.5 pts) a. Determine the design superelevation value (ed) and the corresponding lengths of superelevaion runoff (Lr) and tangent runout (Lt) (1.5 pts) b. Do a free-hand elevation...
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30° Rt. D = 5° Design Speed = 50 mph Two lane road in Southern Climate PI Station @ 64+20.00 Find Land e from Table 13.8 or 13.9 (see handouts) Compute: As = Ac Y Xs es = R= P= TS Compute the stations of: T.S. = S.C. = C.S. = S.T. = Compute the Long Tangent and the Short Tangent Spiral Curve Equations Spiral...
no
you dont. let someone else answer it.
1. Given the following horizontal curve and spiral data: Total tangent deflection angle (A) = 30° Rt. D= 5° Design Speed = 50 mph Two lane road in Southern Climate PI Station @ 64+20.00 Find and e from Table 13.8 or 13.9 (see handouts) Compute: = R P= Compute the stations of: T.S. = S.C. C.S. = S.T. = Compute the Long Tangent and the Short Tangent Table 13.9 SPIRAL CURVE LENGTHS...
6:47 1 4 Search <Back Hw#3-2019.doc 15- 10. A horizontal curve is designed for a two-lane road in mountainous terrain. The following data are known. Intersection angle: 40 degrees Tangent length: 436.76 feet Station of Pl: 2700+10.65 fs- 0.12 e- 0.08 Determine the following. (a) Design speed (b) Station of the PC (c) Station of the PT (d) Deflection angle and chord length to the first even 100 ft station. 15-11. A proposed highway has two tangents of bearings N...
Problem 1 (15vpts) A proposed highway has two tangents of bearings N 75° 54' 36" E and N 53° 22' 30" W. The highway design engineer, attempting to obtain the best fit for the simple circular curve to join these tangents, decides that the external ordinate is to be 78.00 ft. The Pl is at station 65+43.21. Determine: (a) The external angle of the curve (A) (b) The radius of the curve (d) The station of the PC (f) The...
