Which of the following statements and equations always hold true? The resistance of a circuit is...
Which of the following statements and equations always hold true?
The resistance of a circuit is the potential difference (voltage) across the circuit divided by the current flowing through the circuit.
The current flowing through a circuit is proportional to potential difference (voltage) across the circuit.
Resistance is a property of an object.
Resistivity is a property of a material.
The resistivity of Play-Doh rolled into a slender rod is greater that the resistivity of Play-Doh rolled into a short, wide cylinder.

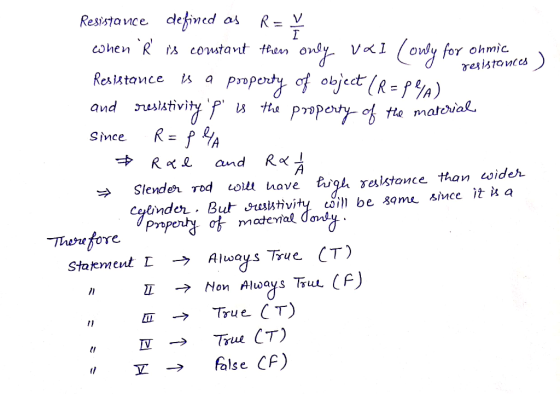

Homework Answers
