Steam enters a diffuser steadily at 0.3MPa and 250 °C and 94.3 m/s at a rate...

Question

Question

Steam enters a diffuser steadily at 0.3MPa and 250 °C and 94.3 m/s at a rate of 4.5 kg/s. The inlet area of the diffuser is _____ cm^2.

engineering Mechanical-Engineering

Answer 1

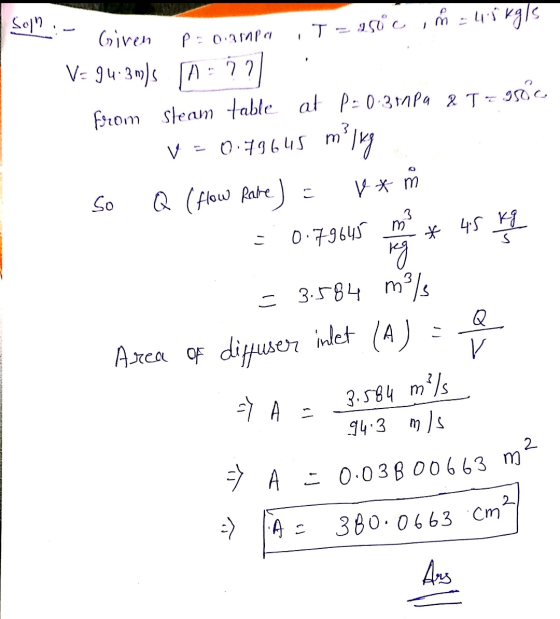

Answer #1

Answer 2
