1. Consider the following database. Note that it distinguishes between a course and the class of...
1. Consider the following database. Note that it distinguishes
between a course and the class of that course in a particular year.
Courses can have prerequisites (aka a prereq), which is again a
course.
Person(UPI, givenname, surname) with key UPI
Courses(course, title, program) with key course
Classes(classnr, course, year) with key classnr
Enrollments(UPI, classnr)
Grades(UPI, classnr, grade)
Prereqs(course, prereq)
Teachers(UPI, classnr)
With natural foreign key constraints given by common attribute names.

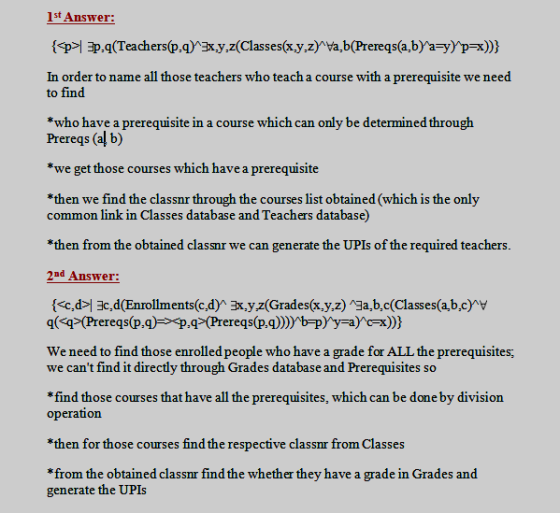

1. List all UPIs of all teachers who teach a course with a prerequisite.
2. List all enrollments (i.e., list UPI and classnr) where the enrolled person has a grade for all prerequisites.

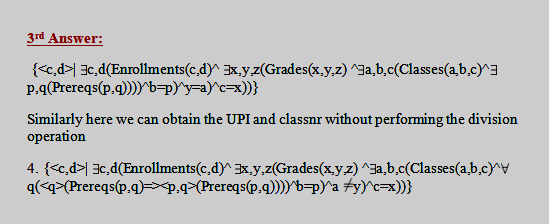

3. List all enrollments where the enrolled person has a grade for any prerequisite.
4. List all enrollments where the enrolled person does not have a grade for all prerequisites.
Q.a) Give a Relational Algebra representation and SQL statements representation for each query and Justify SQL to Relational Algebra conversion for each query in the Answer. (give a brief reason why it is correct?)
* The Answer need Explanation of how you converted relational algebra expressions in SQL representation for all 4 Queries.
