Question

must be written in c# using windows application

Scenario: Samediff bank has a 25-year old banking account system. It was created using procedural programming. Samediff bank needs to improve the security and maintainability of the system using an object-oriented programming (OOP) approach. Their bank manager has decided to hire you to develop, implement, and test a new OOP application using efficient data structures and programming techniques.Samediff banks manager is excited to consider updating their account system. An expert has advised that they would be able to increase both security and ease of maintenance by using object oriented concepts such as polymorphism.

Create an inheritance hierarchy that a bank will use to represent customers’ bank accounts. All customers of Samediff bank can deposit (i.e., credit) money into their accounts and withdraw (i.e., debit) money from their accounts. Each month they process interest earned and penalties on each account. Specific types of accounts exist. Each type of account you will need to consider in your inheritance hierarchy is listed below.You will need to create a list of accounts, in which you will have different types of accounts. account[] accountslist=new account[10];

account[0]=new savings();

account[1]=new checking();

or List accounts; accounts.add(new checking());

accounts.add(new savings());

You must complete these steps in your code

1. A menu system to add customers and accounts, delete customers and accounts.

2. Print customers with each customers accounts sorted by the last name of each customer.

3. Demonstrate that one customer can have more than one account.

4. Demonstrate a deposit and withdrawal of a customers account balance.

5. Demonstrate earned interest on an account.

6. Demonstrate penalties applied to an account.

Answer 1

Account.cs====

namespace BankWindowsApplication
{
public abstract class Account
{
public string AccountId { get; set; }

public decimal Balance { get; set; }

public decimal AccruedInterest { get; set; }

public decimal AccruedPenalties { get; set; }

public abstract decimal Withdraw(decimal amount);

public abstract decimal Deposit(decimal amount);

public abstract decimal CalculateInterest();

public abstract decimal CalculatePenalties();
}
}

CheckingAccount====

namespace BankWindowsApplication
{
public class CheckingAccount : Account
{
private const decimal processingFees = 1M;

public override decimal CalculateInterest()
{
this.AccruedInterest = 0;
if (this.Balance > 100M)
{
this.AccruedInterest = this.Balance * 0.02M - processingFees * 0.01M;
}

this.AccruedInterest = this.Balance * 0.01M;
return this.AccruedInterest;
}

public override decimal CalculatePenalties()
{
this.AccruedPenalties = 0;
if (this.Balance < 10M)
{
this.AccruedPenalties = this.Balance * 0.02M + processingFees * 0.01M;
}

return this.AccruedPenalties;
}
public override decimal Deposit(decimal amount)
{
this.Balance += amount - processingFees;
return this.Balance;
}

public override decimal Withdraw(decimal amount)
{
this.Balance -= amount - processingFees;
return this.Balance;
}
}
}

SavingAccount===

namespace BankWindowsApplication
{
public class SavingAccount : Account
{
public override decimal CalculateInterest()
{
this.AccruedInterest = 0;
if (this.Balance > 100M)
{
this.AccruedInterest = this.Balance * 0.02M;
}

this.AccruedInterest = this.Balance * 0.01M;
return this.AccruedInterest;
}

public override decimal CalculatePenalties()
{
this.AccruedPenalties = 0;
if (this.Balance < 10M)
{
this.AccruedPenalties = this.Balance * 0.02M;
}

return this.AccruedPenalties;
}

public override decimal Deposit(decimal amount)
{
this.Balance += amount;
return Balance;
}

public override decimal Withdraw(decimal amount)
{
this.Balance -= amount;
return Balance;
}
}
}

Customer.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace BankWindowsApplication
{
public class Customer
{
public string CustomerID { get; set; }

public string FirstName { get; set; }

public string LastName { get; set; }

public string Address { get; set; }

public List<string> CustomerAccounts{ get; set; }
}
}

Program.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace BankWindowsApplication
{
static class Program
{
/// <summary>
/// The main entry point for the application.
/// </summary>
[STAThread]
static void Main()
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
Application.Run(new Form1());
}
}
}

Form1.cs:==========================

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace BankWindowsApplication
{
public partial class Form1 : Form
{
private Dictionary<string, Account> Accounts;

private Dictionary<string, Customer> Customers;
public Form1()
{

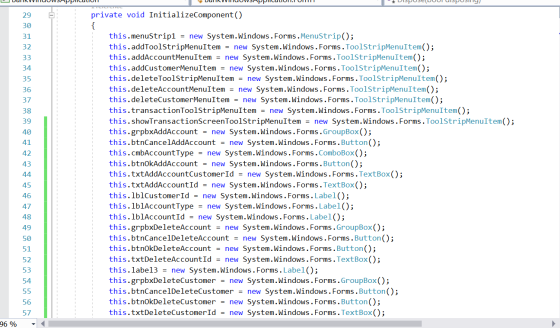

InitializeComponent();
Accounts = new Dictionary<string, Account>();
Customers = new Dictionary<string, Customer>();
}

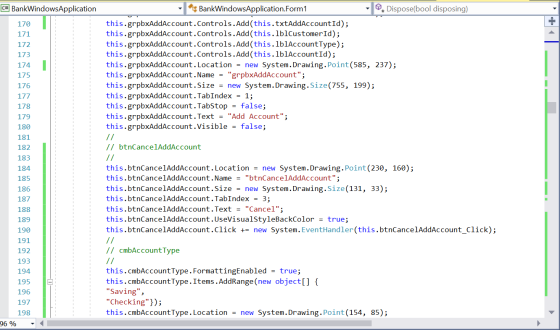

private void addAccountMenuItem_Click(object sender, EventArgs e)
{
HideAll();
txtAddAccountId.Clear();
cmbAccountType.Text = string.Empty;
txtAddAccountCustomerId.Clear();
grpbxAddAccount.Show();
grpbxAddAccount.Location = new Point(44,38);
txtAddAccountId.Focus();
}

private void btnAddCustomer_Click(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtAddCustomerId.Text))
{
MessageBox.Show("Please add customer id");
return;
}
if (Customers.ContainsKey(txtAddCustomerId.Text))
{
MessageBox.Show("Customer Already exists");
return;
}
Customer customer = new Customer();
customer.CustomerID = txtAddCustomerId.Text;
customer.FirstName = txtAddCustomerFirstName.Text;
customer.LastName = txtAddCustomerLastName.Text;
customer.Address = txtAddCustomerAddress.Text;
customer.CustomerAccounts = new List<String>();
Customers.Add(txtAddCustomerId.Text, customer);
MessageBox.Show("Customer added successfully");
grpbxAddCustomer.Hide();
}

private void btnCancelAddCustomer_Click(object sender, EventArgs e)
{
grpbxAddCustomer.Hide();
}

private void addCustomerMenuItem_Click(object sender, EventArgs e)
{
HideAll();

txtAddCustomerId.Clear();
txtAddCustomerFirstName.Clear();
txtAddCustomerLastName.Clear();
txtAddCustomerAddress.Clear();
grpbxAddCustomer.Show();
grpbxAddCustomer.Location = new Point(44, 38);
txtAddCustomerId.Focus();
}

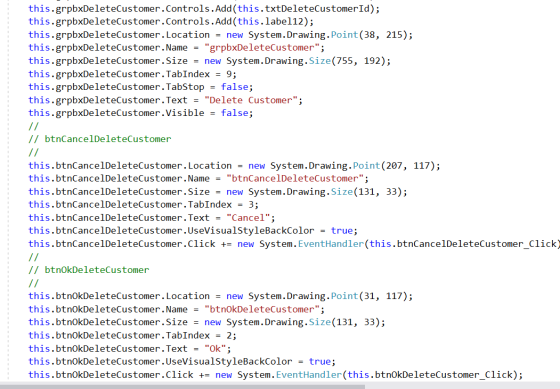

private void deleteCustomerMenuItem_Click(object sender, EventArgs e)
{
HideAll();
txtDeleteCustomerId.Clear();
grpbxDeleteCustomer.Show();
grpbxDeleteCustomer.Location = new Point(44, 38);
txtDeleteCustomerId.Focus();
}

private void btnOkDeleteCustomer_Click(object sender, EventArgs e)
{
if (!Customers.ContainsKey(txtDeleteCustomerId.Text))
{
MessageBox.Show("Customer does not exist");
return;
}

Customers.Remove(txtDeleteCustomerId.Text);
MessageBox.Show("Customer deleted successfully");
grpbxDeleteCustomer.Hide();
}

private void btnCancelDeleteCustomer_Click(object sender, EventArgs e)
{
grpbxDeleteCustomer.Hide();
}

private void btnOkAddAccount_Click(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtAddAccountId.Text))
{
MessageBox.Show("Enter Account Id");
return;
}

if (Accounts.ContainsKey(txtAddAccountId.Text))
{
MessageBox.Show("Account Already exists");
return;
}

if (!Customers.ContainsKey(txtAddAccountCustomerId.Text))
{
MessageBox.Show("Customer does not exist");
return;
}

Account account = null;
if (cmbAccountType.Text == "Saving")
{
account = new SavingAccount();
}
else
account = new CheckingAccount();

account.AccountId = txtAddAccountId.Text;
account.Balance = 100M; //initial balance
Accounts.Add(txtAddAccountId.Text, account);
Customers[txtAddAccountCustomerId.Text].CustomerAccounts.Add(txtAddAccountId.Text);
MessageBox.Show("Customer added successfully");
grpbxAddAccount.Hide();
}

private void btnCancelAddAccount_Click(object sender, EventArgs e)
{
grpbxAddAccount.Hide();
}

private void btnOkDeleteAccount_Click(object sender, EventArgs e)
{
if (!Accounts.ContainsKey(txtDeleteAccountId.Text))
{
MessageBox.Show("Account does not exist");
return;
}

var customer = Customers.Where(x => x.Value.CustomerAccounts.Contains(txtDeleteAccountId.Text)).FirstOrDefault();
if (customer.Value !=null)
{
customer.Value.CustomerAccounts.Remove(txtDeleteAccountId.Text);
}
Accounts.Remove(txtDeleteAccountId.Text);
MessageBox.Show("Account deleted successfully");
grpbxDeleteAccount.Hide();
}

private void btnCancelDeleteAccount_Click(object sender, EventArgs e)
{
grpbxDeleteAccount.Hide();
}

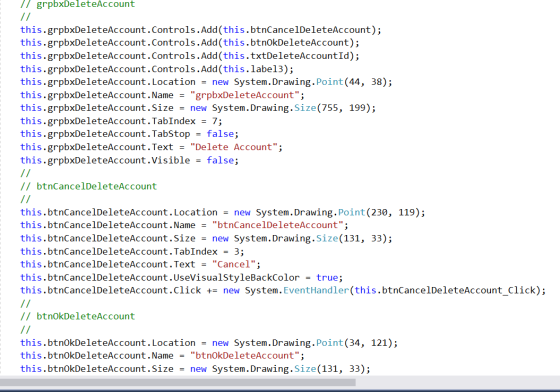

private void deleteAccountMenuItem_Click(object sender, EventArgs e)
{
HideAll();
txtDeleteAccountId.Clear();
grpbxDeleteAccount.Show();
grpbxDeleteAccount.Location = new Point(44, 38);
txtDeleteAccountId.Focus();
}

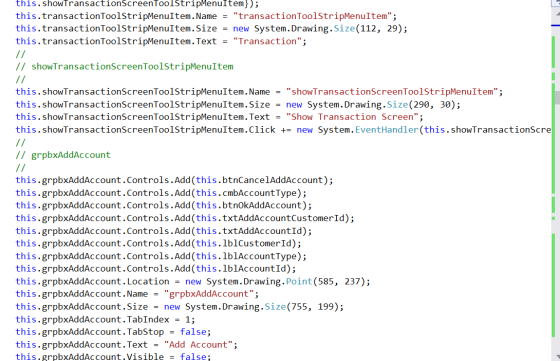

private void showTransactionScreenToolStripMenuItem_Click(object sender, EventArgs e)
{
HideAll();
txtShowTransactionCustomerId.Clear();
cmbShowTransactionAccounts.Text = "";
grpbxShowTransaction.Show();
grpbxShowTransaction.Show();
grpbxShowTransaction.Location = new Point(44, 38);
txtShowTransactionCustomerId.Focus();
}

private void btnCancelShowTransaction_Click(object sender, EventArgs e)
{
grpbxShowTransaction.Hide();
}

private void Form1_Load(object sender, EventArgs e)
{

}

private void HideAll()
{
grpbxAddAccount.Hide();
grpbxAddCustomer.Hide();
grpbxDeleteAccount.Hide();
grpbxDeleteCustomer.Hide();
grpbxShowTransaction.Hide();
}

private void btnShowBalance_Click(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtShowTransactionCustomerId.Text) || string.IsNullOrWhiteSpace(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Select Account ID or Customer ID");
return;
}

if (!Accounts.ContainsKey(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Account does not exist");
return;
}

MessageBox.Show("Balance is" + Accounts[cmbShowTransactionAccounts.Text].Balance);
}

private void btnShowInterest_Click(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtShowTransactionCustomerId.Text) || string.IsNullOrWhiteSpace(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Select Account ID or Customer ID");
return;
}

if (!Accounts.ContainsKey(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Account does not exist");
return;
}

MessageBox.Show("Interest is" + Accounts[cmbShowTransactionAccounts.Text].CalculateInterest());
}

private void btnPenalties_Click(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtShowTransactionCustomerId.Text) || string.IsNullOrWhiteSpace(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Select Account ID or Customer ID");
return;
}

if (!Accounts.ContainsKey(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Account does not exist");
return;
}

MessageBox.Show("Penalties is" + Accounts[cmbShowTransactionAccounts.Text].CalculatePenalties());
}

private void btnDeposit_Click(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtShowTransactionCustomerId.Text) || string.IsNullOrWhiteSpace(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Select Account ID or Customer ID");
return;
}

if (!Accounts.ContainsKey(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Account does not exist");
return;
}

Accounts[cmbShowTransactionAccounts.Text].Deposit(100M);
MessageBox.Show("Balance is" + Accounts[cmbShowTransactionAccounts.Text].Balance);
}

private void btnWithdraw_Click(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtShowTransactionCustomerId.Text) || string.IsNullOrWhiteSpace(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Select Account ID or Customer ID");
txtShowTransactionCustomerId.Focus();
return;
}

if (!Accounts.ContainsKey(cmbShowTransactionAccounts.Text))
{
MessageBox.Show("Account does not exist");
return;
}

Accounts[cmbShowTransactionAccounts.Text].Withdraw(100M);
MessageBox.Show("Balance is" + Accounts[cmbShowTransactionAccounts.Text].Balance);
}

private void CmbShowTransactionAccounts_GotFocus(object sender, EventArgs e)
{
if (string.IsNullOrWhiteSpace(txtShowTransactionCustomerId.Text))
{
MessageBox.Show("Please enter Customer Id");
return;

}

if (!Customers.ContainsKey(txtShowTransactionCustomerId.Text))
{
MessageBox.Show("Account does not exist");
return;
}
var customer = Customers[txtShowTransactionCustomerId.Text];
if (customer.CustomerAccounts != null)
{
cmbShowTransactionAccounts.Items.Clear();
foreach (var item in customer.CustomerAccounts)
{
cmbShowTransactionAccounts.Items.Add(item);
}

}

}

private void btnPrintCustomer_Click(object sender, EventArgs e)
{
if (Customers.Count == 0)
{
MessageBox.Show("Please Add some costomer first");
return;

}
StringBuilder sb = new StringBuilder();
foreach (var customeritem in Customers.OrderBy(x=>x.Value.LastName))
{
sb.AppendLine("For Customer Last Name" + customeritem.Value.LastName);
foreach (var item in customeritem.Value.CustomerAccounts)
{
sb.AppendLine("Account " + item);
}
}

MessageBox.Show(sb.ToString());
}
}
}

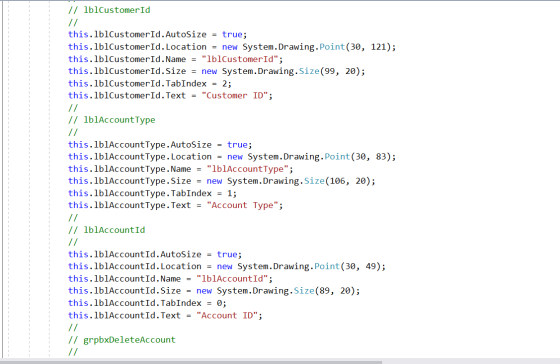

Form1.Designer.cs:========================

Not allowed to update designer.cs due to char limitation.

Please rate your answer.

Thanks
