Using a projectile motion model: Write a symbolic mathematical expression for tp, the time required for...

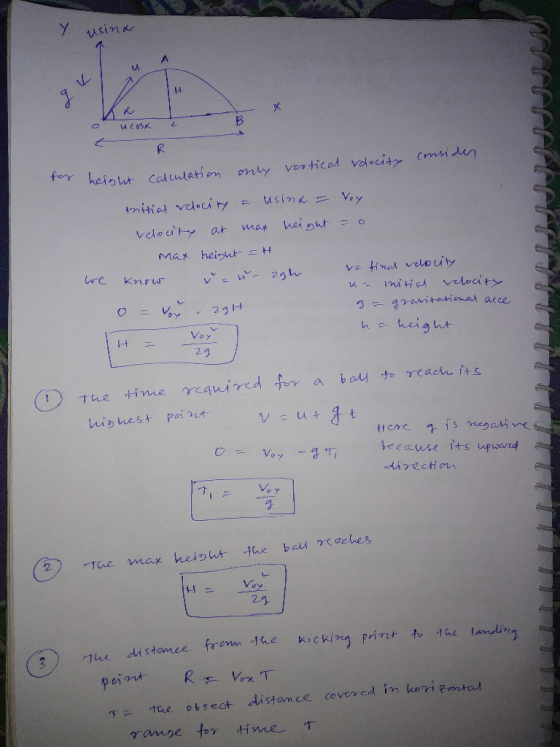

Using a projectile motion model:
Write a symbolic mathematical expression for tp, the time required for a ball to reach its highest point. (The only variables that are allowed to appear in your expression are v0y, v0x, and g).
Write a symbolic mathematical expression for yp, the maximum height the ball reaches. (The only variables that are allowed to appear in your expression are v0y, v0x, and g).
Write a symbolic mathematical expression for xr, the distance from the kicking point to the landing point. (The only variables that are allowed to appear in your expression are v0y, v0x, and g).
Homework Answers
Add Answer to:
Using a projectile motion model:
Write a symbolic mathematical expression for tp, the
time required for...
