A pendulum with a length of 2.2 m and a bob mass of 100 g swings...

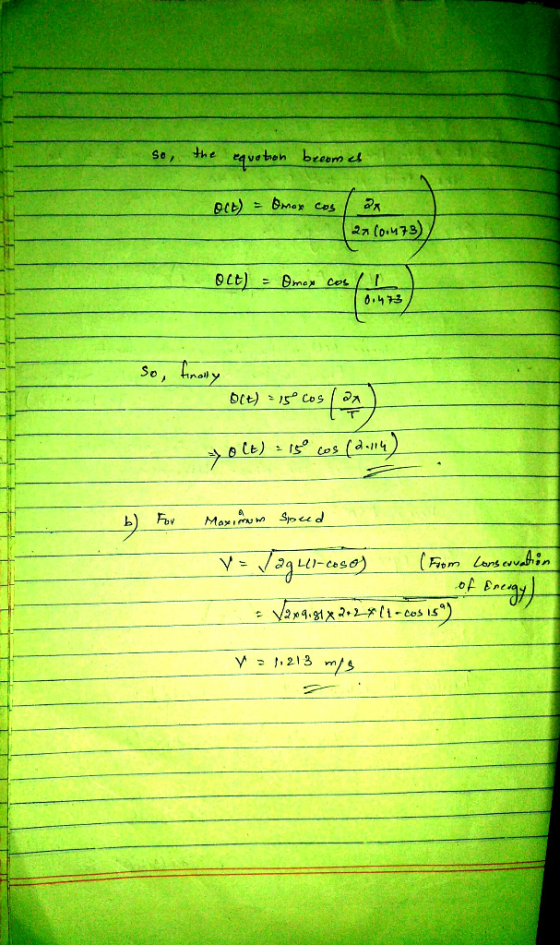

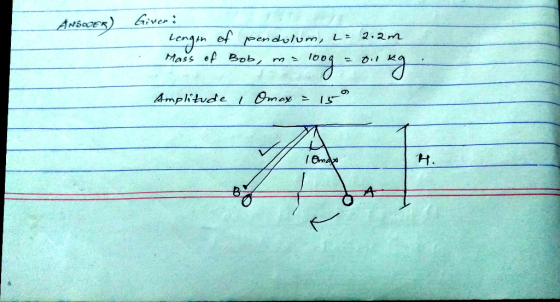

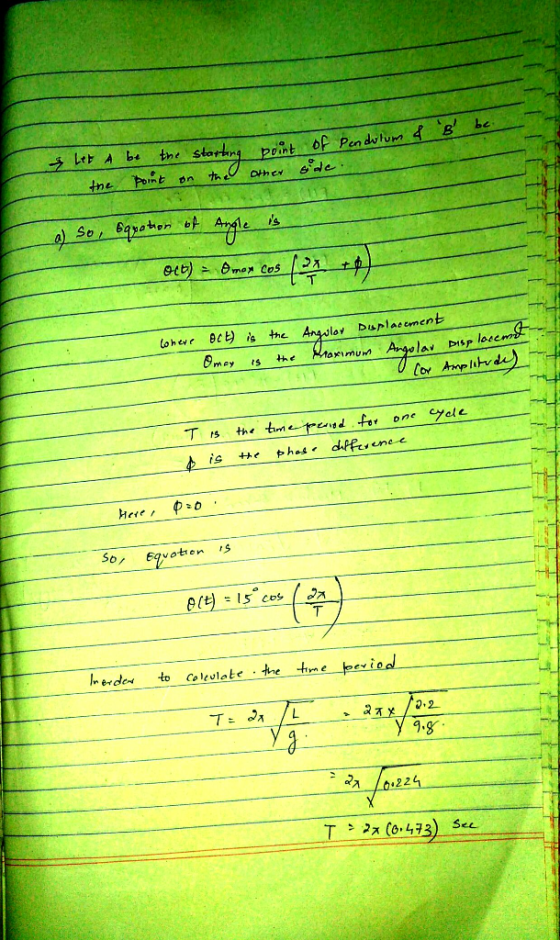

A pendulum with a length of 2.2 m and a bob mass of 100 g swings with an amplitude of 15o. a) What is the equation for the angle as a function of time? Let θ = θmax at t = 0. b) What is the maximum speed of the pendulum bob?
Homework Answers
A simple pendulum has a rod of length LL with a bob of mass m=0.100 kg...
A simple pendulum has a rod of length LL with a bob of mass
m=0.100 kg at the end of the rod. The rod is supposed to be very
light and all the mass is imagined to be concentrated in the
bob.
A) What is the tension in the string when the pendulum swings by
an angle θ=5.00∘?
B) What is the magnitude of the restoring force on the bob when
θ=5.00∘?
C) If you drop a perpendicular from the...
A simple pendulum comprised of a bob of mass m = 162 g and a lightweight...
A simple pendulum comprised of a bob of mass m = 162 g and a lightweight string of length 71.0 cm is released from rest from an initial angle of 24.0° from the vertical. (a) Using the approach of simple harmonic motion, what is the maximum speed of the pendulum bob? m/s (b) Using the approach of simple harmonic motion, what is the maximum angular acceleration of the bob? rad/s2
A frictionless simple pendulum of length 2 m and mass 2.5 kg swings with a maximum...
A frictionless simple pendulum of length 2 m and mass 2.5 kg swings with a maximum amplitude of 41 degrees. Assume that gravitational energy is 0 at the lowest point reached. What will be the total mechanical energy and the speed of the pendulum when its potential energy is 4 J?
Derive a formula for the maximum speed vmax of a simple pendulum bob in terms of...
Derive a formula for the maximum speed vmax of a simple pendulum bob in terms of g, the length ℓ, and the maximum angle of swing θmax. NOTE!! When entering a trig function of an angle, use parentheses around the argument of the trig function. For instance, enter cos( θmax) rather than cos θmax.
The motion of a pendulum bob with mass m is governed by the equation mL0" (t) + mg sin θ (t)-0 where L is the lengt...
The motion of a pendulum bob with mass m is governed by the equation mL0" (t) + mg sin θ (t)-0 where L is the length of the pendulum arm, g 3 and θ is the angle (in radians) between the pendulum arm and the vertical. Suppose L 16 ft and the bob is set in motion with (0 1 and 0' (0)--3. Find the second degree Taylor polynomial P2(t) that approximates the angular position θ(t) of the bob near...
26. We saw in Section 11.6 that a pendulum formed by a bob of mass m...
26. We saw in Section 11.6 that a pendulum formed by a bob of mass m on the end of a massless string of length L is a harmonic oscillator, in the limit of small oscillations. Let us use an angle to locate the position of the pendulum bob, as shown in figure 11.6 and let us use w for the angular speed of the pendulum. Consider the variables m, g, L, θ, and w and find an expression for...
A certain simple pendulum consists of a small 750.0 ? bob that swings on the end...
A certain simple pendulum consists of a small 750.0 ? bob that swings on the end of a 25.0 ?? string. The small amplitude of the oscillations of this pendulum decays to half its original value after 45.0 oscillations. The angular position of the pendulum as a function of time, ?(?), can be expressed as follows. ?(?) = ??0 ? − ??/2m cos(? ′ ? + ?) ??0 is the original angular amplitude. ? is the time, and ? is...
In a ballistic pendulum an object of mass m is fired with an initial speed v0 at a pendulum bob.
In a ballistic pendulum an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and object stick together and swing to a maximum angular displacement θ as shown.Part AFind an expression for vo, the initial speed of the fired object. Express your answer in terms of some or all of the...
A pendulum consists of a uniform rod of total mass m and length L that can...
A pendulum consists of a uniform rod of total mass m and length L that can pivot freely around one of its ends. The moment of inertia of such a rod around the pivot point is 1/3mL^2 The torque around the pivot point of the pendulum due to gravity is 1/2mgLsinθ, where θ is the angle the rod makes with the vertical and g is the acceleration due to gravity. a) Write down the equation of motion for the angle...
In a ballistic pendulum an object of mass is fired with an initial speed at a pendulum bob. The bob has a mass, which...
In a ballistic pendulum, an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and
object stick together and swing to a maximum angular displacement θ as shown.A. Find an expression for v0, the initial speed of the fired object.Express your answer in terms of some or all of the variables m, M, L, and...
A simple pendulum has a rod of length LL with a bob of mass
m=0.100 kg at the end of the rod. The rod is supposed to be very
light and all the mass is imagined to be concentrated in the
bob.
A) What is the tension in the string when the pendulum swings by
an angle θ=5.00∘?
B) What is the magnitude of the restoring force on the bob when
θ=5.00∘?
C) If you drop a perpendicular from the...
The motion of a pendulum bob with mass m is governed by the equation mL0" (t) + mg sin θ (t)-0 where L is the length of the pendulum arm, g 3 and θ is the angle (in radians) between the pendulum arm and the vertical. Suppose L 16 ft and the bob is set in motion with (0 1 and 0' (0)--3. Find the second degree Taylor polynomial P2(t) that approximates the angular position θ(t) of the bob near...
In a ballistic pendulum, an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and
object stick together and swing to a maximum angular displacement θ as shown.A. Find an expression for v0, the initial speed of the fired object.Express your answer in terms of some or all of the variables m, M, L, and...
