The 5 lb particle is subjected to the action of its weight and forces F1={2i+6j−2tk}lb, F2={t2i−4tj−1k}lb,...

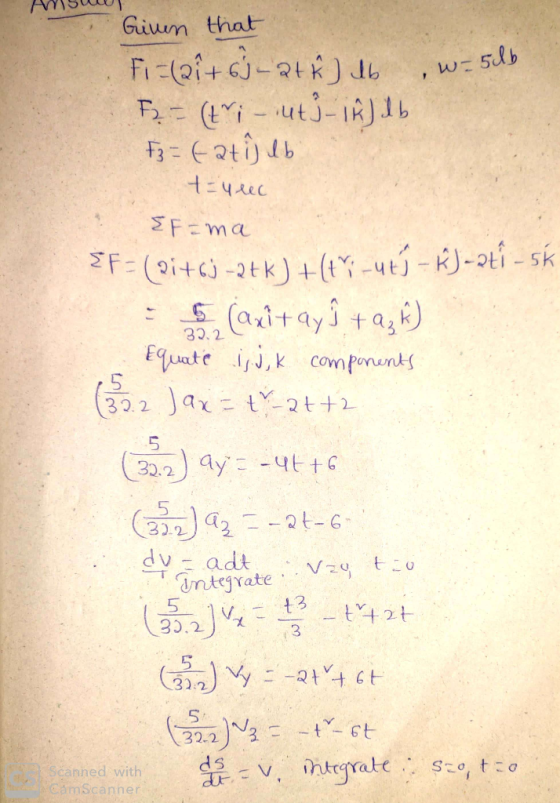

The 5 lb particle is subjected to the action of its weight and forces F1={2i+6j−2tk}lb, F2={t2i−4tj−1k}lb, and F3={−2ti}lb, where t is in seconds.
Part A

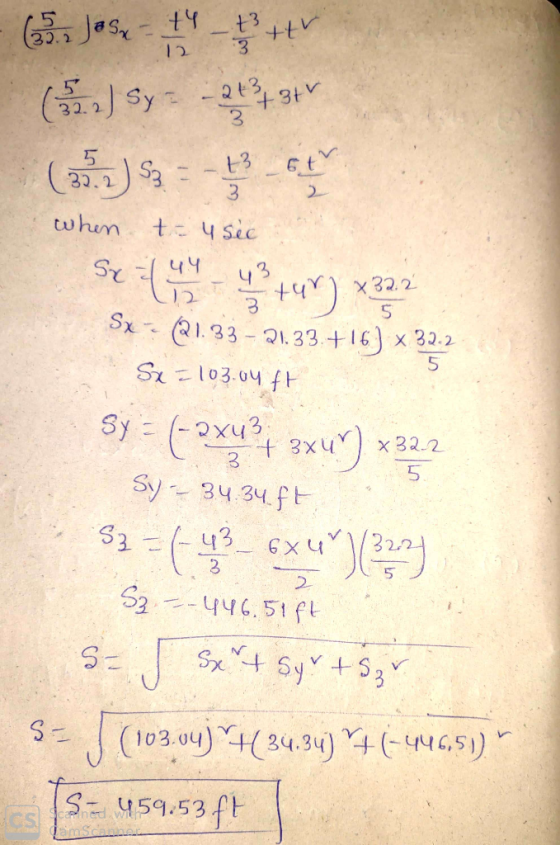

Determine the distance the ball is from the origin 4 s after being released from rest.
Homework Answers
Add Answer to:
The 5 lb particle is subjected to the action of its weight and
forces
F1={2i+6j−2tk}lb,
F2={t2i−4tj−1k}lb,...
Problem 13.1 The 4 lb particle is subjected to the action of its weight and forces...
Problem 13.1 The 4 lb particle is subjected to the action of its weight and forces F,-2i +6j 2tk) lb, Part A where t is in seconds. (Figure 1) Determine the distance the ball is from the origin 5 s after being released from rest. Express your answer to three significant figures and include the appropriate units. 1872.40 ft Previous Answers Request Answer X Incorrect; Try Again; 5 attempts Figure 1of 1 Provide Feedback Next > Fs 7 8 0
ENGR 215 - Dynamics Course Home <Homework 3 - Chapter 13 Problem 13.1 - Enhanced with...
ENGR 215 - Dynamics Course Home <Homework 3 - Chapter 13 Problem 13.1 - Enhanced with Hints and Feedback The 9 lb particle is subjected to the action of its weight and forces Fi = {21 + 6j - 2tk) lb, F, = {tº - 4 - 1k} lb, and F,-{-2ti} lb, where t is in seconds. (Figure 1) Part A Determine the distance the ball is from the origin 3 s after being released from rest. Express your answer...
A 5-kg object is subjected to two forces F1 = 5 N i + 12 N...
A 5-kg object is subjected to two forces F1 = 5 N i + 12 N j and F2 = -10 N i + 7 N j. (a) What is the net force on the object?, (b) What is the acceleration produced by this net force? (c) If the object is at rest at the origin at t = 0, where is the object at time t = 5.0 s?
A particle is subjected to three forces as shown in the following figure. F2 F1 25...
A particle is subjected to three forces as shown in the following figure. F2 F1 25 30° X 600 N Write an expression for the summation of force components in the x-direction (R.). Select one: © R-F.Cos30° - FCos25 OR - F.Cos300-FCos 250 OR - F.Sin30° - F, Cos250 OR-F.Cos30-F.Sin 25 Clear my choice If the particle in Question 31 is in equilibrium is the following statement true or false? "The resultant of forces in the x-direction. Rx - O"...
need a nice and clear answer thank you KINEMATICS AND KINETICS OF A PARTICLE Problem 1 (15 Pts.) The 2.3 Mg (Mega grams) mine car is being pulled by the winch M mounted on the car. If the winc...
need a nice and clear answer thank you
KINEMATICS AND KINETICS OF A PARTICLE Problem 1 (15 Pts.) The 2.3 Mg (Mega grams) mine car is being pulled by the winch M mounted on the car. If the winch exerts a force of F (367t2) Newton on the cable, where t is in seconds, determine the power output of the winch when t - 12 s, starting from rest. The crate, which has a mass of 232 kg, is subjected...
(2.2 Coaching Activity Three-dimensional Force Systems 4 of 5 > II Review Four forces are shown:...
(2.2 Coaching Activity Three-dimensional Force Systems 4 of 5 > II Review Four forces are shown: F1, F2, F3, and F4. (Figure 1) Classify the x, y, and z components of each vector as being less than zero. equal to zero, or greater than zero. Drag the appropriate items to their respective bins. Learning Goal: To use the conditions of equilibrium to solve for unknown forces in a three-dimensional force system. For particle equilibrium, the sum of all forces must...
Problem 13.1 The 4 lb particle is subjected to the action of its weight and forces F,-2i +6j 2tk) lb, Part A where t is in seconds. (Figure 1) Determine the distance the ball is from the origin 5 s after being released from rest. Express your answer to three significant figures and include the appropriate units. 1872.40 ft Previous Answers Request Answer X Incorrect; Try Again; 5 attempts Figure 1of 1 Provide Feedback Next > Fs 7 8 0
ENGR 215 - Dynamics Course Home <Homework 3 - Chapter 13 Problem 13.1 - Enhanced with Hints and Feedback The 9 lb particle is subjected to the action of its weight and forces Fi = {21 + 6j - 2tk) lb, F, = {tº - 4 - 1k} lb, and F,-{-2ti} lb, where t is in seconds. (Figure 1) Part A Determine the distance the ball is from the origin 3 s after being released from rest. Express your answer...
A particle is subjected to three forces as shown in the following figure. F2 F1 25 30° X 600 N Write an expression for the summation of force components in the x-direction (R.). Select one: © R-F.Cos30° - FCos25 OR - F.Cos300-FCos 250 OR - F.Sin30° - F, Cos250 OR-F.Cos30-F.Sin 25 Clear my choice If the particle in Question 31 is in equilibrium is the following statement true or false? "The resultant of forces in the x-direction. Rx - O"...
need a nice and clear answer thank you
KINEMATICS AND KINETICS OF A PARTICLE Problem 1 (15 Pts.) The 2.3 Mg (Mega grams) mine car is being pulled by the winch M mounted on the car. If the winch exerts a force of F (367t2) Newton on the cable, where t is in seconds, determine the power output of the winch when t - 12 s, starting from rest. The crate, which has a mass of 232 kg, is subjected...
(2.2 Coaching Activity Three-dimensional Force Systems 4 of 5 > II Review Four forces are shown: F1, F2, F3, and F4. (Figure 1) Classify the x, y, and z components of each vector as being less than zero. equal to zero, or greater than zero. Drag the appropriate items to their respective bins. Learning Goal: To use the conditions of equilibrium to solve for unknown forces in a three-dimensional force system. For particle equilibrium, the sum of all forces must...
