Consider the electrostatic field e=k[y^2i+ (2xy+z^2)j+ 2yzk] calculate the potential of this field using the origin...

Question

Question

Consider the electrostatic field e=k[y^2i+ (2xy+z^2)j+ 2yzk] calculate the potential of this field using the origin as a reference

engineering Electrical-Engineering

Answer 1

Answer #1

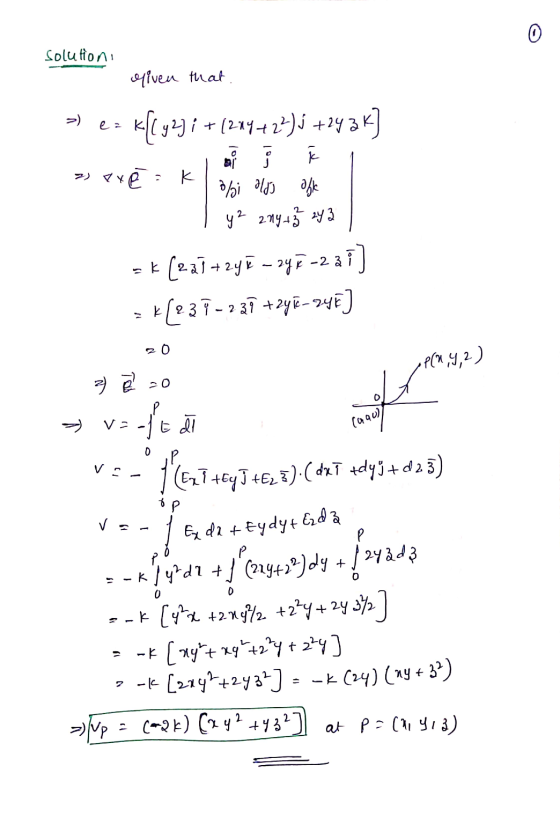

ANSWER:

Given that

Answer 2
