Question

Pseudocode and Flowchart:

Program that stops production whenever there is a run of four consecutive pills that have a content of Ibuprofen above, or four consecutive pills with a level below 129.

Also use these two modules in your code:

• machineOFF()is a module that turns off the machine when is executed.
• getIbuprofen()is a module that returns the value of Ibuprofen from the current pill or 0 if this is the last pill.

Please make sure to use the following additional instructions:

• Do not code or chart the two modules machineOFF()and getIbuprofen(). Think of them as built-in functions. This is a very common element of programming
• To stop production, the values must be consecutively above or below the number. For example, if the value is 350, then the sequence 360, 351, 470, 329 would not stop the machine because the first three numbers are above but the fourth is below. A run of 300, 312, 333, 349 would stop the machine since they are all below

Answer 1

Pseudocode for a machine that stops production whenever there is a run of four consecutive pills that have a content of Ibuprofen above, or four consecutive pills with a level below 129.

Declaration
   number pills_Ibuprofen ;
   number pills_above_129;
   number pills_below_129;

Start
   // Initialize pills_above_129 and pills_below_129 to 0 at the start of the program
   pills_above_129 = 0;
   pills_below_129 = 0;
   pills_Ibuprofen = getIbuprofen(); // call and get the current Ibuprofen for the pill produced

   // the loop continues till we get the last pill or
   // Ibuprofen of number of pills produced consecutively is greater than 129 or
   // Ibuprofen of number of pills produced consecutively is less than 129
   while(pills_Ibuprofen != 0 and pills_above_129 < 4 and pills_below_129 < 4)
   do
       // check if Ibuprofen of the pill is less than 129, greater than 129 or equal to 129 and set pills_above_129 and pills_below_129 accordingly

       if(pills_Ibuprofen > 129) then
           pills_above_129 = pills_above_129 + 1;
           pills_below_129 = 0;
       else if(pills_Ibuprofen < 129) then
           pills_above_129 = 0;
           pills_below_129 = pills_below_129 + 1;
       else
           pills_above_129 = 0;
           pills_below_129 = 0;
       end if;

       pills_Ibuprofen = getIbuprofen(); //call and get the current Ibuprofen for the pill produced

   end while;
   machineOFF(); // if the program comes out of the loop then switch off the machine.
End

//end of pseudocode

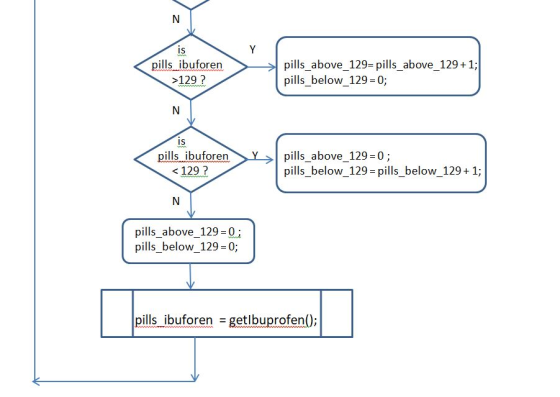

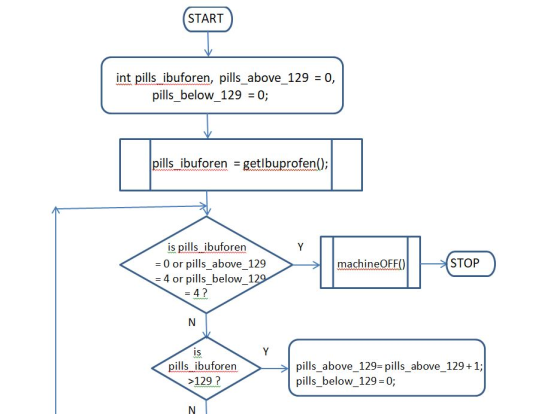

Flowchart:
