Three resistors, 15.0 Ω, 23.0 Ω and R are connected across a 6.00 V battery. The...

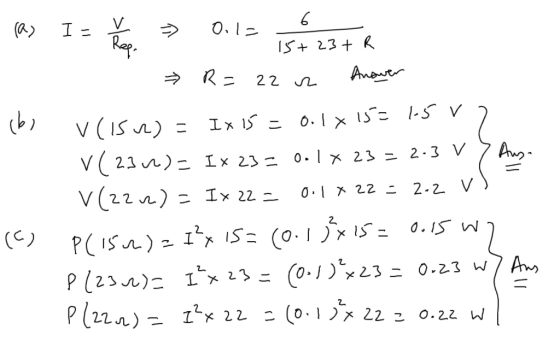

Three resistors, 15.0 Ω, 23.0 Ω and R are connected across a 6.00 V battery. The current in the circuit is 0.100 A. (a) What is the resistance of the unknown resistor? (b) What is the voltage across each resistor? (c) What is the power used by each resistor?
