At steady state, a new power cycle is claimed by its inventor to develop power at...

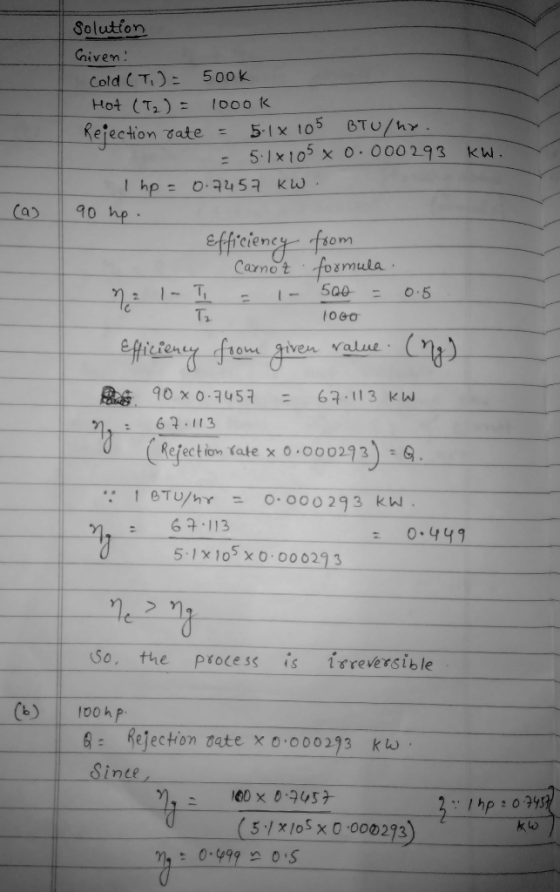

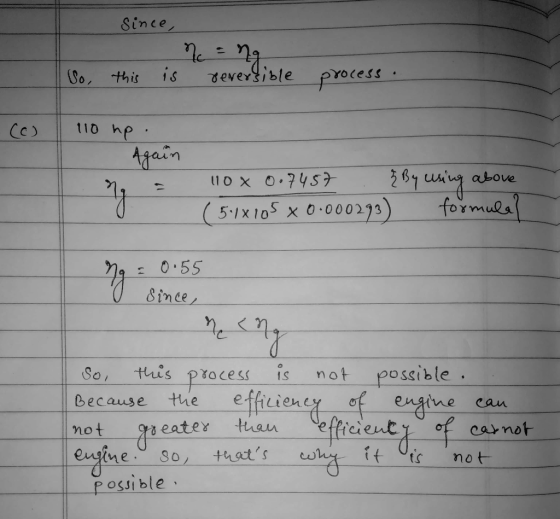

- At steady state, a new power cycle is claimed by its inventor to develop power at a rate of (a) 90 hp, (b) 100 hp, (c) 110 hp for a heat rejection rate of 5.1 x 105 BTU/hr while operating between hot and cold reservoirs at 1000K and 500 K. Evaluate each claim. Is it impossible, reversible or irreversible?
Homework Answers
plz thumbs,thanks....Add Answer to:
