A vertical, 1.26-m length of 18-gauge (diameter of 1.024 mm) copper wire has a 140.0-N ball...

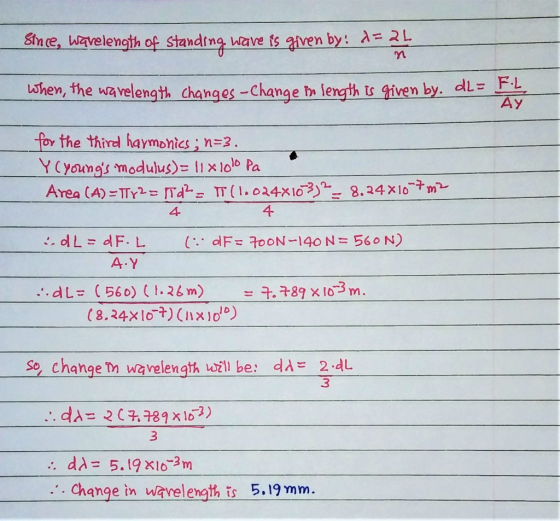

A vertical, 1.26-m length of 18-gauge (diameter of 1.024 mm) copper wire has a 140.0-N ball hanging from it. A 700.0-N ball now replaces the original ball. What is the change in the wavelength of the third harmonic caused by replacing the light ball with the heavy one? (Y=11*10^10 for copper)
Homework Answers
Alright
Dude, If that worked for you... dont forget to give THUMBS UP.(that
will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using Chegg- Smarter way to study.
Add Answer to:
A vertical, 1.26-m length of 18-gauge (diameter of 1.024 mm)
copper wire has a 140.0-N ball...
500 turns of insulated 18-gauge copper wire (diameter 1.024 mm) are wound in a single layer...
500 turns of insulated 18-gauge copper wire (diameter 1.024 mm) are wound in a single layer on a cylindrical form of diameter 10.00 cm. What is the resistance of the coil? (Hint: Take into account the thickness of the wire when calculating the radius of a single turn.)
8 gauge copper wire has a diameter of 3.26 mm, while 12 gauge copper wire has...
8 gauge copper wire has a diameter of 3.26 mm, while 12 gauge copper wire has a diameter of 2.05 mm. For the following lengths of wire, which must have the lowest resistance? 40 cm of 8 gauge wire 40 cm of 12 gauge wire 80 cm of 12 gauge wire 80 cm of 8 gauge wire (work the problem out with explanation)
The diameter of Four Gauge copper wire is 5.189 mm. Calculate the resistance (in Q) of...
The diameter of Four Gauge copper wire is 5.189 mm. Calculate the resistance (in Q) of 7.54 km length of such wire used for power transmission. The resistivity of copper is 1.68 x 10-9 Om.
The diameter of Twelve Gauge copper wire is 2.052 mm. Calculate the resistance (in 2) of...
The diameter of Twelve Gauge copper wire is 2.052 mm. Calculate the resistance (in 2) of 4.52 km length of such wire used for power transmission. The resistivity of copper is 1.68 x 10-8 Am. Ω
The diameter of 0–gauge copper wire is 8.252 mm. Find the resistance of a 5.00–km length...
The diameter of 0–gauge copper wire is 8.252 mm. Find the resistance of a 5.00–km length of such wire used for power transmission. Use 1.719e-08 as the resistivity for Cu
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop...
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop with a radius of 26.0 cm. A magnetic field perpendicular to the plane of the loop increases from zero to 18.0 mT in 0.24 s. Find the average electrical power dissipated in the process.
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop...
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop with a radius of 21.0 cm. A magnetic field perpendicular to the plane of the loop increases from zero to 12.0 mT in 0.22 s. Find the average electrical power dissipated in the process.
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop...
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop with a radius of 16.0 cm. A magnetic field perpendicular to the plane of the loop increases from zero to 14.0 mT in 0.24 s. Find the average electrical power dissipated in the process
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop...
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop with a radius of 23.0 cm. A magnetic field perpendicular to the plane of the loop increases from zero to 10.0 mT in 0.22 s. Find the average electrical power dissipated in the process.
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop...
A length of 20-gauge copper wire (of diameter 0.8118 mm) is formed into a circular loop with a radius of 26.0 cm. A magnetic field perpendicular to the plane of the loop increases from zero to 11.0 mT in 0.26 s. Find the average electrical power dissipated in the process. answer in W
The diameter of Four Gauge copper wire is 5.189 mm. Calculate the resistance (in Q) of 7.54 km length of such wire used for power transmission. The resistivity of copper is 1.68 x 10-9 Om.
The diameter of Twelve Gauge copper wire is 2.052 mm. Calculate the resistance (in 2) of 4.52 km length of such wire used for power transmission. The resistivity of copper is 1.68 x 10-8 Am. Ω
