A window washer with a mass of 85.0 kg stands a distance, D = 0.600 m,...

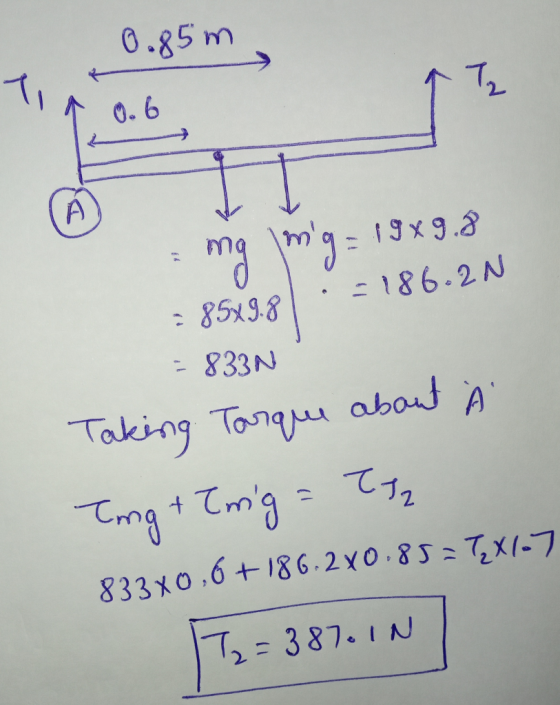

A window washer with a mass of 85.0 kg stands a distance, D = 0.600 m, from the left end of a plank of length, L= 1.70 m, with a mass of 19.0 kg. The plank is hung on two cables as shown. Find T2, the tension in the right cable.
Homework Answers
Add Answer to:
A window washer with a mass of 85.0 kg stands a distance, D =
0.600 m,...
A window washer with a mass of 93.0 kg stands a distance, D = 0.600 m,...
A window washer with a mass of 93.0 kg stands a distance, D = 0.600 m, from the left end of a plank of length, L= 2.10 m, with a mass of 15.0 kg. The plank is hung on two cables as shown. Find T2, the tension in the right cable.
A window washer with a mass of 67.0 kg stands a distance, D = 0.800 m,...
A window washer with a mass of 67.0 kg stands a distance, D = 0.800 m, from the left end of a plank of length, L= 2.10 m, with a mass of 21.0 kg. The plank is hung on two cables. Find T2, the tension in the right cable.
A window washer with a mass, M=78kg stands on a suspended 6.0-meters long platform which has...
A window washer with a mass, M=78kg stands on a suspended
6.0-meters long platform which has a mass of 25kg. A bucket of
water with a mass, m=14kg is also on the platform. If the window
washer stands 1.7-meters from the right end of the platform, what
is the tension in the left support cable?
1.0 m 40 m 1.0 m 1.0 m
A worker stands a distance d = 0.325 m from the left end of a plank...
A worker stands a distance
d = 0.325 m
from the left end of a plank as shown in the figure. The plank
is supported by three cords. Find the tension in each cord (in N).
Assume the plank is uniform, with length L = 2.00 m and
mass 29.5 kg, and the weight of the worker is 720 N. (Due to the
nature of this problem, do not use rounded intermediate values in
your calculations—including answers submitted in
WebAssign.)...
a uniform beam of mass M = 61 kg and length L = 11 m is...
a uniform beam of mass M = 61 kg and length L = 11 m is hung horizontally by vertical cables at the two ends, as shown. a mass of m = 31 kg is then hung from the beam at a distance of 5/8L from the left side. what is the tension in the rightmost cable?
(a) A person stands a distance d 0.425 m from the left end of a plank...
(a) A person stands a distance d 0.425 m from the left end of a plank as shown in the figure. The plank is supported by three cords. Find the tension in each cord (in N). Assume the plank is uniform, with length L 2.00 m and mass 31.5 kg, and the weight of the person is 690 N. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) 40.0...
(a) A worker stands a distance d = 0.425 m from the left end of a plank as shown in the figure
(a) A worker stands a distance d = 0.425 m from the left end of a plank as shown in the figure. The plank is supported by three cords. Find the tension in each cord in N). Assume the plank is uniform, with length L = 2.00 m and mass 30.5 kg, and the weight of the worker is 685 N. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in...
A loudspeaker of mass 19.0 kg is suspended a distance of h = 2.20 m below...
A loudspeaker of mass 19.0 kg is suspended a distance of h = 2.20 m below the ceiling by two cables that make equal angles with the ceiling. Each cable has a length of l = 2.50 m . What is the tension T in each of the cables?
1. (10 pts) A uniform 30.0-kg scaffold of length 3.0 m is supported by two light cables, as shown in the figure. A painter A of mass "m" kg stands 0.5 m from the left end of the scaffold....
1. (10 pts) A uniform 30.0-kg scaffold of length 3.0 m is supported by two light cables, as shown in the figure. A painter A of mass "m" kg stands 0.5 m from the left end of the scaffold. If the tension in the left cable cable is twice that in the right cable, find the tensions in the cables and the mass of the painter A. (Answer the following questions to solve this problem) a. (2 pts) Draw the...
A plank of length L 2.000 m and mass M 4.00 kg is suspended horizontally by...
A plank of length L 2.000 m and mass M 4.00 kg is suspended horizontally by a thin cable at one end and to a pivot on a wall at the other end as shown. The cable is attached at a height H 1.40 m above the pivot and the plank's CM is located a distance d 0.600 m from the pivot H2 CM d L Calculate the tension in the cable. 29.29N
A window washer with a mass, M=78kg stands on a suspended
6.0-meters long platform which has a mass of 25kg. A bucket of
water with a mass, m=14kg is also on the platform. If the window
washer stands 1.7-meters from the right end of the platform, what
is the tension in the left support cable?
1.0 m 40 m 1.0 m 1.0 m
A worker stands a distance
d = 0.325 m
from the left end of a plank as shown in the figure. The plank
is supported by three cords. Find the tension in each cord (in N).
Assume the plank is uniform, with length L = 2.00 m and
mass 29.5 kg, and the weight of the worker is 720 N. (Due to the
nature of this problem, do not use rounded intermediate values in
your calculations—including answers submitted in
WebAssign.)...
(a) A person stands a distance d 0.425 m from the left end of a plank as shown in the figure. The plank is supported by three cords. Find the tension in each cord (in N). Assume the plank is uniform, with length L 2.00 m and mass 31.5 kg, and the weight of the person is 690 N. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) 40.0...
1. (10 pts) A uniform 30.0-kg scaffold of length 3.0 m is supported by two light cables, as shown in the figure. A painter A of mass "m" kg stands 0.5 m from the left end of the scaffold. If the tension in the left cable cable is twice that in the right cable, find the tensions in the cables and the mass of the painter A. (Answer the following questions to solve this problem) a. (2 pts) Draw the...
A plank of length L 2.000 m and mass M 4.00 kg is suspended horizontally by a thin cable at one end and to a pivot on a wall at the other end as shown. The cable is attached at a height H 1.40 m above the pivot and the plank's CM is located a distance d 0.600 m from the pivot H2 CM d L Calculate the tension in the cable. 29.29N
