How many 1H NMR signals you would expect for the product of eucalyptus oil reacted with maleic anhydride? Draw a structure of the product and clearly indicate each set of equivalent protons and their expected multiplicity (singlet, doublet, etc).
Homework Answers

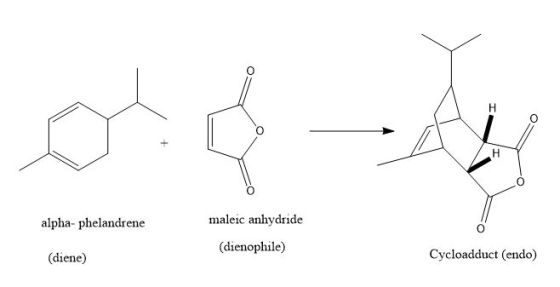

Maleic anhydride reacts with alpha- phelandrene, an component of eucalyptus oil via [4+2] cycloaddition reaction (Diels Alder reaction). The product of the reaction is shown below:

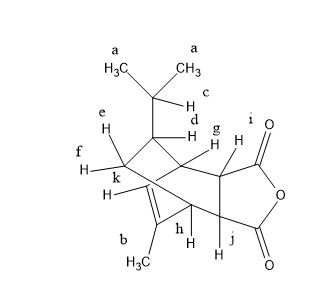

The product contains 11 non- equivalent Hs. Hence in 1H NMR, there will be 11 signals. The non- equivalent Hs are shown below ( indicated by a,b,....)
6 Ha (doublet)
3 Hb (singlet)
1 Hc (septet)
1 Hd (doublet of doublet)
1 Hk ( doublet)
He, Hf, Hg, Hi, Hj ( doublet of doublet)
