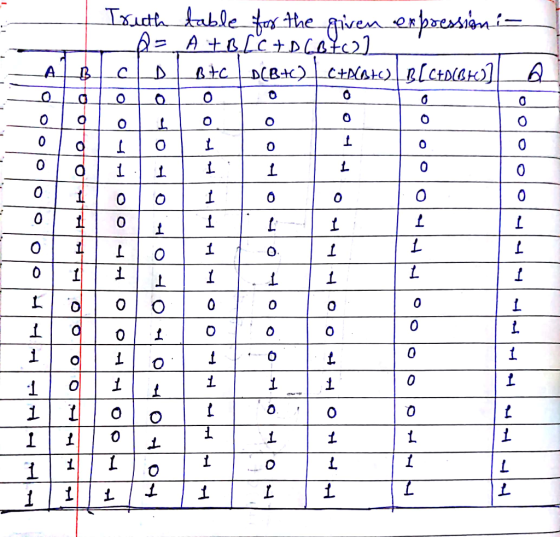

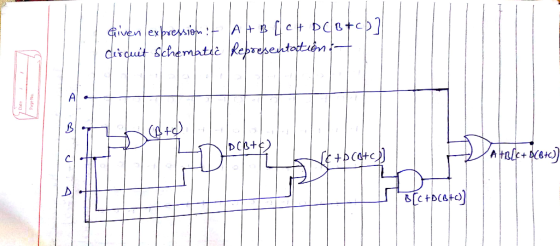

Draw the circuit schematic represented by the logic expression A + B[C + D(B + C)]. For this problem, in addition to drawing the circuit schematic, determine its truth table.
Draw the circuit schematic represented by the logic expression A + B[C + D(B + C)]....
9. (Expression Truth Table) Determine the truth table for the three-input XOR function y = 11 12 13. You may first evaluate i n and then evaluate y as y=( 12) 13. In the truth table, besides the columns for 11.12.13 and y, also include a column corresponding to I 1. Also use a word statement to describe this logic function and indicate a possible application of the function 10. (Expression Circuit) Draw a circuit schematic which realizes the logic...
Draw a logic circuit for circuit represented by each expression: a. AB'+AN b.AB+A'B:+ABC c.A'B (C+D') d.A+B [C+D (B+C')]
Using the Boolean logic expression below, draw circuit diagram with logic gates that will implement your Boolean expression without simplifying or expanding the expression. F(A, B, C, D) = ABD + ABCD + ABCD + ABCD Complete a Truth Table F(A, B, C, D). Use your logic circuit diagram and Boolean logic expression as much as possible.
Boolean Logic A. Show the truth table for this expression: X AND (Y XOR X) B. Show the truth table for this expression: Y OR (Y AND NOT X) C. Show the truth table for this expression: X NOR (Y NAND X) D. Draw a digital logic circuit for the expression used in 3A. E. Draw a digital logic circuit for the expression used in 3B. F. Draw a digital logic circuit for the expression used in 3C.
Draw the logic circuit realization of the following Boolean expression as stated. Do not simplify! You may draw inverters explicitly or use inversion bubbles, as you choose. F(A,B,C) (A'+B+C)(A+B+C) b. Convert the Boolean equation of (a) to its De Morgan equivalent. c. Write the complete truth table for the Boolean expression of (b) a.
2) For an 8:3 priority encoder: a) Draw the schematic. b) Write the truth table. c) Write the Boolean expressions for each of the outputs in terms of the inputs. d) Draw the logic circuit for the outputs in terms of the inputs.
Q2) The following is a Boolean expression of a Combinational Logic Circuit. Construct the truth table and a Combinational Logic circuit using AND, OR and NOT logic gates for the Boolean expression. Redraw the logic circuit using only NAND gates. 19 Marks) X = A B C +ABC + ABC
Please solve ASAP
Problem #2 (100pts) Consider the circuit shown in the Logic Circuit in the Figure: Find its Truth Table 2) Use the SoP (Sum of Products) Karnaugh Map to identify an expression for X as a function of the inputs A, B and C
Problem #2 (100pts) Consider the circuit shown in the Logic Circuit in the Figure: Find its Truth Table 2) Use the SoP (Sum of Products) Karnaugh Map to identify an expression for X as...
Create a truth table to implement AND logic using only NAND gates. Draw the circuit diagram (schematic) for the implementation. Do the same for OR logic using only NOR gates.
4. Implement the function using only NOR gates (20 pts) (A B+C).D Sketch the logic gate schematic and verify your circuit by truth table.
