1). A 100 Ω resistance, 10 µF capacitance and a 1.1 H inductance in series are...

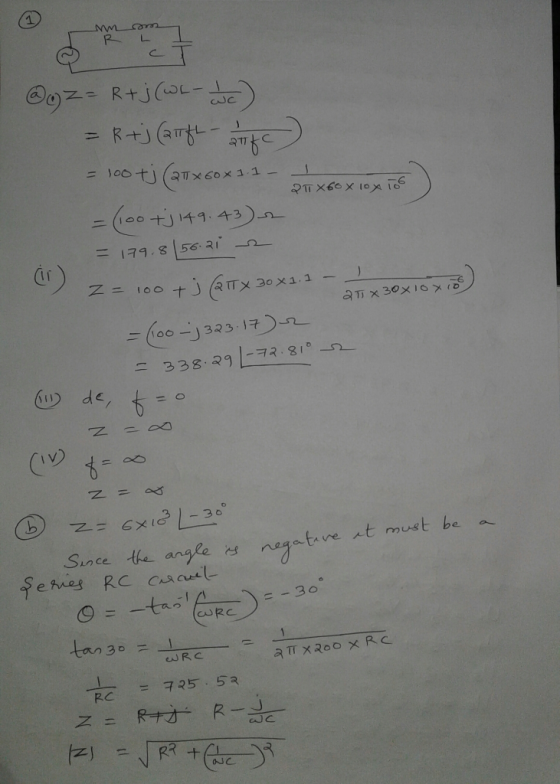

1). A 100 Ω resistance, 10 µF capacitance and a 1.1 H inductance in series are connected across a 220 V sinusoidal source. Find their total series impedance value @: (i) 60 Hz (ii) 30 Hz (iii) dc (iv) ∞ Hz

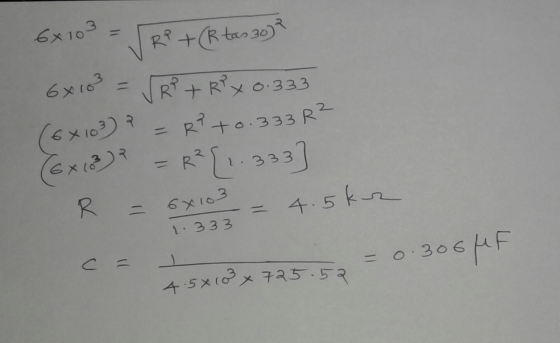

b)Find values of two components (R,C or R,L) in series whose total impedance is 6 kΩ / –30° @ 200 Hz ..

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
