3) Two boxes sit on a horizontal table. Box 1 (m1 = 13 kg) is attached...

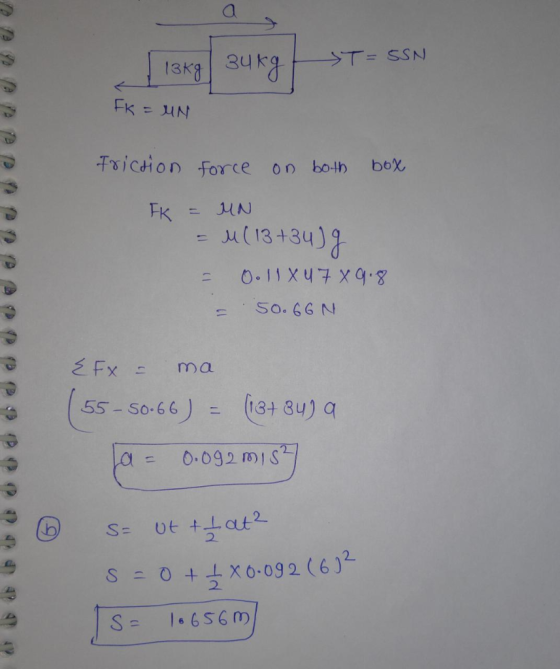

3) Two boxes sit on a horizontal table. Box 1 (m1 = 13 kg) is attached to box 2 (m2 = 34 kg) by a rope. You pull on a rope attached to box 2 with a force of 55 N. The coefficient of kinetic friction between both boxes and the table is 0.11 .
-
(a) What is the acceleration of the boxes?
-
(b) How far will the boxes move in 6.0 seconds? Assume they start from rest.
Homework Answers
Add Answer to:
3) Two boxes sit on a horizontal table. Box 1 (m1 = 13 kg) is
attached...
