A pendulum swinging in a circular arc under the influence of gravity, as shown in the...
A pendulum swinging in a circular arc under the influence of gravity, as shown in the figure, has both centripetal and tangential components of acceleration. length of pendulum is 0.75 m

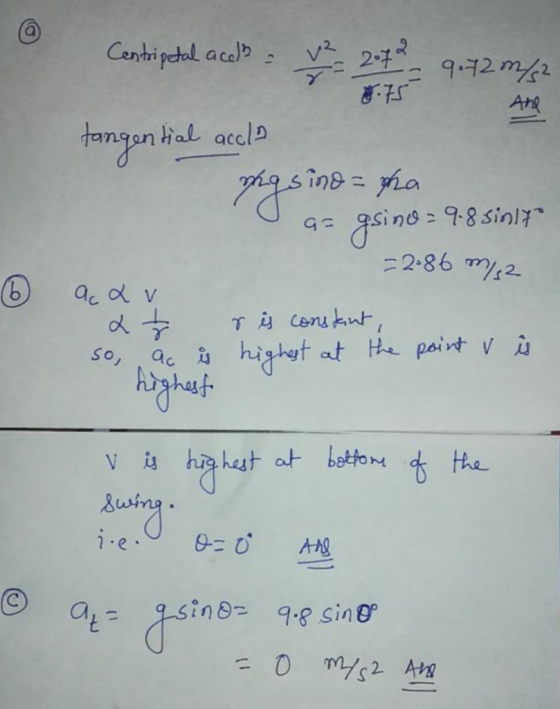

a) If the pendulum bob has a speed of 2.7 m/s when the cord makes an angle of θ = 17 with the vertical, what are the magnitudes of the components at this time? Express your answers using two significant figures separated by a comma.
b) Where is the centripetal acceleration a maximum?
c) What is the value of the tangential acceleration at that location?
Homework Answers
