Question

# Perform subtraction on the given unsigned binary numbers using the 2’st complement of the subtrahend. Where...

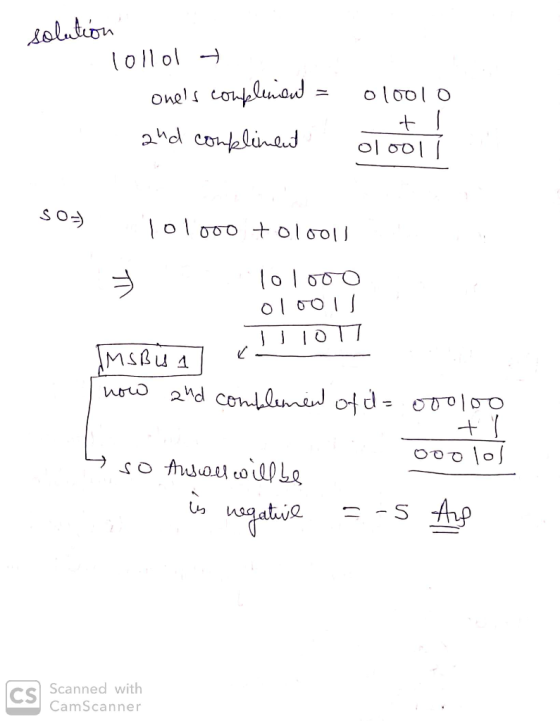

Perform subtraction on the given unsigned binary numbers using the 2’st complement of the subtrahend. Where result should be negative, find its 2’s complement and a fix a minus sign, i.e., a minus dash or " − ".

Q) 101000 – 101101
