A square coil of wire has sides of length 3.00 cm and 80.0 turns and lies...

A square coil of wire has sides of length 3.00 cm and 80.0 turns and lies in the xy-plane. The coil lies in a magnetic field of 0.100 T directed in the positive y-direction. (a) Determine the torque on the coil if it carries a current of 2.00 A in a clockwise direction. (b) Suppose the coil rotates 30.0° in the direction of the torque – find the new value of the torque’s magnitude

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

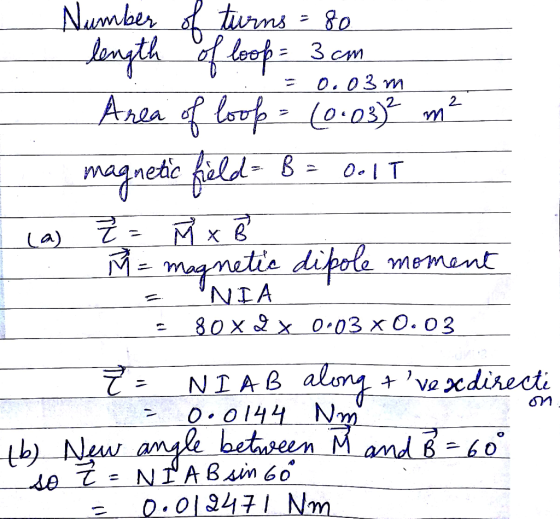

Answer #1

please rate it up thanks :)

0 0
