In a double-slit experiment the distance between slits is 5.8 mm and the slits are 2.0...

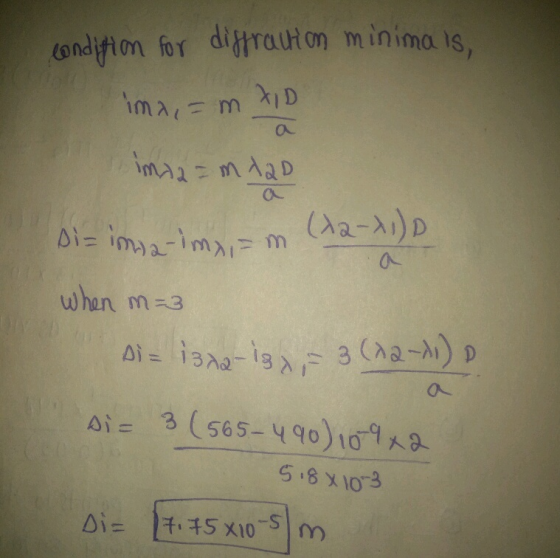

In a double-slit experiment the distance between slits is 5.8 mm and the slits are 2.0 m from the screen. Two interference patterns can be seen on the screen: one due to light with wavelength 490 nm, and the other due to light with wavelength 565 nm. What is the separation on the screen between the third-order (m = 3) bright fringes of the two interference patterns?
________________m
Homework Answers
Add Answer to:
In a double-slit experiment the distance between slits is 5.8 mm
and the slits are 2.0...
In a double-slit experiment the distance between slits is d = 4 mm and the distance...
In a double-slit experiment the distance between slits is d = 4 mm and the distance to the screen is 1.4 m. There are two interference patterns on the screen: one due to light with λ1=470 nm and another due light with λ2=610 nm. What is the separation between third order (m = 3) bright fringes of the two patterns?
Consider double slit experiment with two slits are separated by d=0,715 mm
Consider double slit experiment with two slits are separated by d=0.715 mm and each slit width is 0.00321 mm. Screen is placed L=1.28 m away from the slits. a) Derive an algebraic equation to find linear distance of interference bright fringe on the screen from central bright (central maxima) fringe? b) Consider interference pattern due to light of unknown wavelength and linear separation between 2 and 5" bright fringes is 3.05 mm. Find the wavelength of the light? c) Now consider double slit...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The experiment uses red light with a wavelength of 700 nm and projects the interference pattern onto a screen 5.0 m away from the slits. (a) What is the distance between two nearby bright fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near θ = 0. A Young's double-slit interference experiment...
1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of...
1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102 mm is illuminated by light having a wavelength of 576 nm and the interference pattern observed on a screen 3.50 m from the slits. What is the difference in path lengths from the two slits to the location of a third order bright fringe on the screen? 1(B) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102...
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
In a Young's double slit experiment, if the separation between the two slits is 0.050 mm...
In a Young's double slit experiment, if the separation between the two slits is 0.050 mm and the distance from the slits to a screen is 2.5 m, find the spacing between the first-order and second-order bright fringes for light with wavelength of 600 nm. Correct answer is 3cm but I'm not sure how. Can somebody show all work to get this step? Thank you so much.
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? answer choices: 0.42 m 0.63m 0.77m 0.81m 0.92
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? Group of answer choices 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
