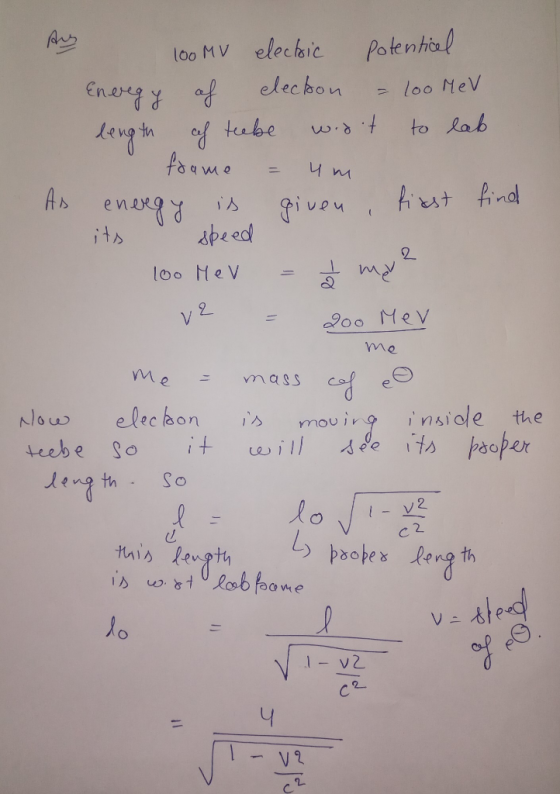

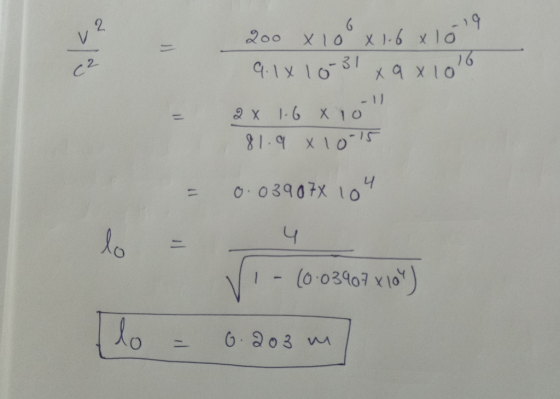

An electron is accelerated within a particle accelerator using a 100 MV electric potential. The 100...
An electron is accelerated within a particle accelerator using a 100 MV electric potential. The 100 MeV electron moves along an evacuated tube of length
4 m, fixed to the laboratory frame. What length of the tube would be measured by an observer moving with the electron?
