IEEE 754-2008 contains a half precision that is only 16 bits wide. The leftmost bit is...

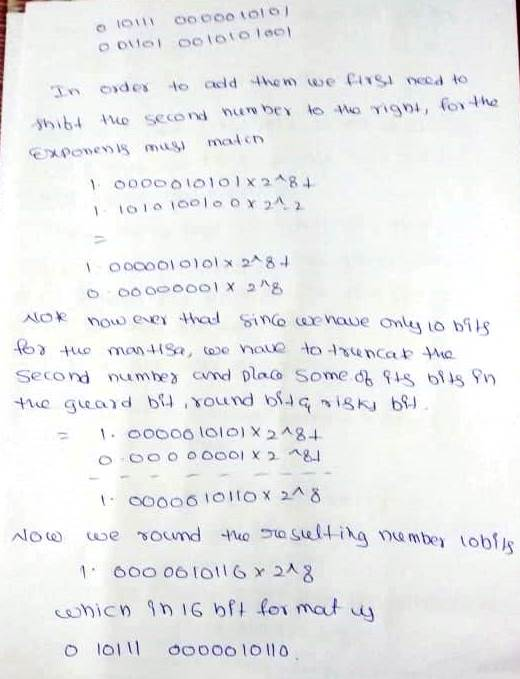

IEEE 754-2008 contains a half precision that is only 16 bits wide. The leftmost bit is still the sign bit, the exponent is 5 bits wide and has a bias of 15, and the mantissa is 10 bits long. A hidden 1 is assumed. Write down the bit pattern to represent -1.5625 * 10-2 assuming a version of this format. Calculate the sum of 2.6125*102 and 4.150390625 * 10-1 by hand, assuming both numbers are stored in the 16-bit half precision described above. Assume 1 guard, 1 round bit, and 1 sticky bit, and round to the nearest even. Show all the steps.
Homework Answers
Add Answer to:
IEEE 754-2008 contains a half precision that is only 16 bits
wide. The leftmost bit is...
4. (5 points) IEEE 754-2008 contains a half precision that is only 16 bits wide. The leftmost bit...
4. (5 points) IEEE 754-2008 contains a half precision that is only 16 bits wide. The leftmost bit is still the sign bit, the exponent is 5 bits wide and has a bias of 15, and the mantissa is 10 bits long. A hidden 1 is assumed. Write down the bit pattern to represent-1.09375 x 10-1 assuming a version of this format, which uses an excess-16 format to store the exponent. Comment on how the range and accuracy of this...
IEEE 754-2008 contains a half precision that is only 16 bits wide. The leftmost bit is...
IEEE 754-2008 contains a half precision that is only 16 bits wide. The leftmost bit is still the sign bit, the exponent is 5 bits wide and has a bias of 15, and the mantissa is 10 bits long. A hidden 1 is assumed. Write down the bit pattern to represent -1.6875 X 100 assuming a version of this format, which uses an excess-16 format to store the exponent. Comment on how the range and accuracy of this 16-bit floating...
Question: Calculate the sum of 2.6125x101 and 4.150390625 x 10-1 by hand, assuming A and B...
Question: Calculate the sum of 2.6125x101 and 4.150390625 x 10-1 by hand, assuming A and B are stored in the 16-bit half precision described in Exercise 1. Assume 1 guard, 1 round bit, and 1 sticky bit, and round to the nearest even. Note: show all the steps for your calculation. Exercise 1: IEEE 754-2008 contains a half precision that it is only 16 bits wide. The leftmost bit is still the sign bit, the exponent is 5 bits wide...
Calculate 1.666015625 x 10° (1.9760 x 104 + - 1.9744 x 10^) by hand, assuming each...
Calculate 1.666015625 x 10° (1.9760 x 104 + - 1.9744 x 10^) by hand, assuming each of the values are stored in the 16-bit half precision format IEEE 754-2008. IEEE 754-2008 contains a half precision that is only 16 bits wide. The left most bit is still the sign bit, the exponent is 5 bits wide and has a bias of 15, and the mantissa is 10 bits long. A hidden 1 is assumed. Assume 1 guard, 1 round bit,...
Inspired of the IEEE 754 standard, a floating point format that is only 10 bits wide is defined f...
Inspired of the IEEE 754 standard, a floating point format that is only 10 bits wide is defined for a special computer. The leftmost bit is still the sign bit, the exponent is 5 bits wide and has a bias of 15, and the fractions is 4 bits long. A hidden 1 is assumed for the normal number, but not for the denormalized number. c) Construct a case to show that floating point addition is not associative
Find the precision of IEEE 754 FP code on 64-bit machines? • Double Precision Floating Point...
Find the precision of IEEE 754 FP code on 64-bit machines? • Double Precision Floating Point Numbers (64 bits) – 1-bit sign + 11-bit exponent + 52-bit fraction S Exponent11 Fraction52 (continued)
(30 pts) In addition to the default IEEE double-precision format (8 byte 64 bits) to store...
(30 pts) In addition to the default IEEE double-precision format (8 byte 64 bits) to store floating-point numbers, MATLAB can also store the numbers in single-precision format (4 bytes, 32 bits). Each value is stored in 4 bytes with 1 bit for the sign, 23 bits for the mantissa, and 8 bits for the signed exponent: Sign Signed exponent Mantissa 23 bits L bit 8 bits Determine the smallest positive value (expressed in base-10 number) that can be represented using...
Problem 5 (20 points) Consider a floating point number representation that is 16 bit wide. The...
Problem 5 (20 points) Consider a floating point number representation that is 16 bit wide. The leftmost bit is the sign bit, and the next 5 bits from the left make up an exponent (which has a bias of 15). The remainder 10 bits give the magnitude of the number. This representation assumes a hidden 1. Consider the number -1.3215 x 10-1 How doe its rine and acrac cmpare wit a he same number, this time b) How does its...
Thebinary16format in the IEEE 754-2008 standard uses an 11-bitmantissa and 5-bit exponent with a bias of...
Thebinary16format in the IEEE 754-2008 standard uses an 11-bitmantissa and 5-bit exponent with a bias of 24−1. What is the closestvalue forπthat this format could represent?
Problem 4 (10 points): 1. Consider the numbers 23.724 and 0.3344770219. Please normalize both 2. ...
please help
Problem 4 (10 points): 1. Consider the numbers 23.724 and 0.3344770219. Please normalize both 2. Calculate their sum by hand. 3. Convert to binary assuming each number is stored in a 16-bit register. Half-precision binary floating-point has: sign bit: lbit, exponent width: 5bits and a bias of 15, and significand 10 bits (16 bits total) 4. Show cach step of their binary addition, assuming you have one guard, one round, and one sticky bit, rounding to the nearest...
4. (5 points) IEEE 754-2008 contains a half precision that is only 16 bits wide. The leftmost bit is still the sign bit, the exponent is 5 bits wide and has a bias of 15, and the mantissa is 10 bits long. A hidden 1 is assumed. Write down the bit pattern to represent-1.09375 x 10-1 assuming a version of this format, which uses an excess-16 format to store the exponent. Comment on how the range and accuracy of this...
Calculate 1.666015625 x 10° (1.9760 x 104 + - 1.9744 x 10^) by hand, assuming each of the values are stored in the 16-bit half precision format IEEE 754-2008. IEEE 754-2008 contains a half precision that is only 16 bits wide. The left most bit is still the sign bit, the exponent is 5 bits wide and has a bias of 15, and the mantissa is 10 bits long. A hidden 1 is assumed. Assume 1 guard, 1 round bit,...
(30 pts) In addition to the default IEEE double-precision format (8 byte 64 bits) to store floating-point numbers, MATLAB can also store the numbers in single-precision format (4 bytes, 32 bits). Each value is stored in 4 bytes with 1 bit for the sign, 23 bits for the mantissa, and 8 bits for the signed exponent: Sign Signed exponent Mantissa 23 bits L bit 8 bits Determine the smallest positive value (expressed in base-10 number) that can be represented using...
Problem 5 (20 points) Consider a floating point number representation that is 16 bit wide. The leftmost bit is the sign bit, and the next 5 bits from the left make up an exponent (which has a bias of 15). The remainder 10 bits give the magnitude of the number. This representation assumes a hidden 1. Consider the number -1.3215 x 10-1 How doe its rine and acrac cmpare wit a he same number, this time b) How does its...
please help
Problem 4 (10 points): 1. Consider the numbers 23.724 and 0.3344770219. Please normalize both 2. Calculate their sum by hand. 3. Convert to binary assuming each number is stored in a 16-bit register. Half-precision binary floating-point has: sign bit: lbit, exponent width: 5bits and a bias of 15, and significand 10 bits (16 bits total) 4. Show cach step of their binary addition, assuming you have one guard, one round, and one sticky bit, rounding to the nearest...
