A -4.00 nC point charge is at the origin, and a second -7.00 nC point charge...

Question

Question

A -4.00 nC point charge is at the origin, and a second -7.00 nC point charge is on the x-axis at x = 0.800 m.

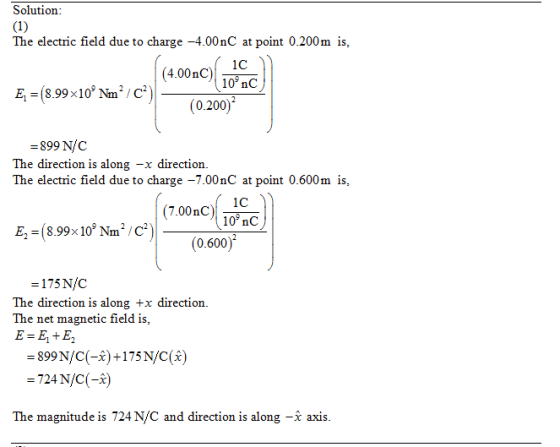

1)Find the electric field (magnitude and direction) at point on the x-axis at x = 0.200 m.

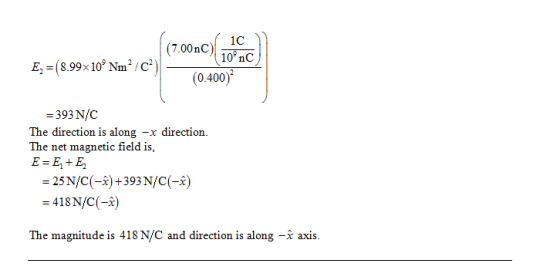

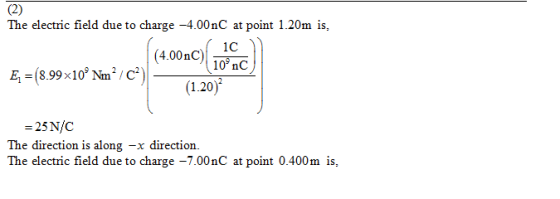

2)Find the electric field (magnitude and direction) at point on the x-axis at x = 1.20 m.

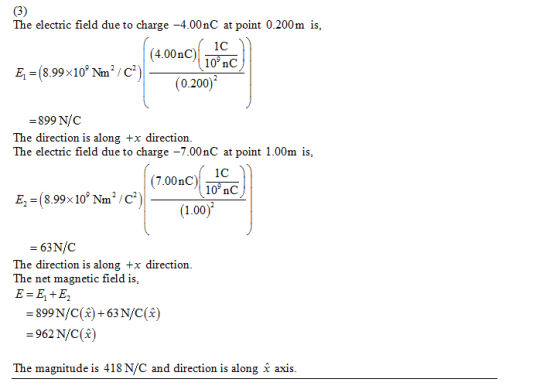

3)Find the electric field (magnitude and direction) at point on the x-axis at x = -0.200 m.

science physics

Answer 1

Answer #1

Answer 2
