Consider a transformation from point A to B in a two-step process. First, the pressure is...

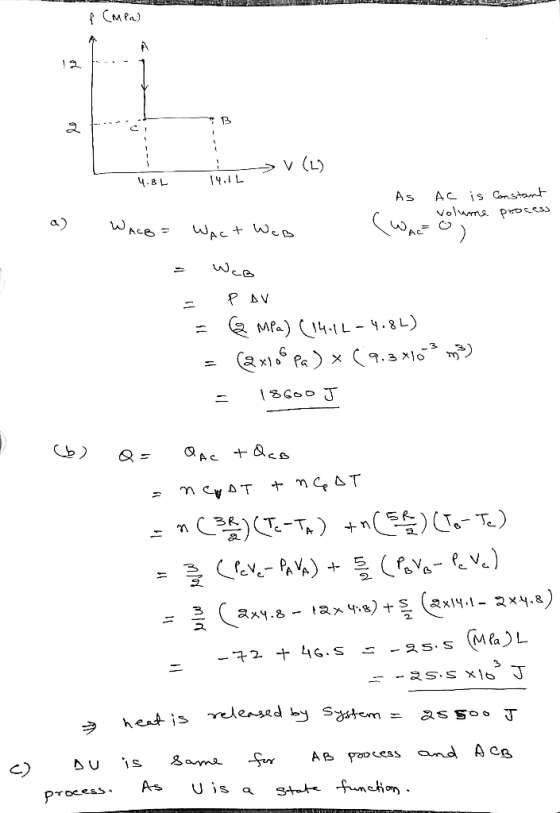

Consider a transformation from point A to B in a two-step process. First, the pressure is lowered from 12 MPa at point A to a pressure of 2 MPa, while keeping the volume at 4.8 L by cooling the system. The state reached is labeled C. Then the system is heated at a constant pressure to reach a volume of 14.1 L in the state B. (Assume the system consists of a monatomic ideal gas.)
(a)
Find the amount of work done by the system on the ACB path (in J).
(b)
Find the amount of heat exchanged (in J) by the system when it goes from A to B on the ACB path. (MAINLY NEED HELP WITH THIS PART)
(c)
Compare the change in the internal energy when the AB process occurs adiabatically with the AB change through the two-step process on the ACB path.
Homework Answers
Add Answer to:
Consider a transformation from point A to B in
a two-step process. First, the pressure is...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different paths for expansion. Path 1: The gas expands quasistatically and isothermally to (Va, Pz. T2) Path 2: First the gas expands quasistatically and adiabatically (V2, P.,T-),where you will calculate P T. Then the gas is heated quasistically at constant volume to (Va. P2 T1). a. Sketch both paths on a P-V diagram. b. Calculate the entropy change of the system along all three segments...
PROBLEM 1: (50 pts) Consider the following isothermal monatomic ideal gas expansion processes: gradual (reversible) decrease...
PROBLEM 1: (50 pts) Consider the following isothermal monatomic ideal gas expansion processes: gradual (reversible) decrease in pressure from P, to Pa, such that the internal and external pressures remain in equilibrium at every step along the path. a) (20 pts) Obtain expressions for AU, W, AS, and Au for the above process (express your results as functions of n, T, P, and/or P2) b) (10 pts) Calculate the work exchanged (in J) in the process, assuming that n=1 mole,...
in figure above the system change from A to B through ACB path, the heat absorbs...
in figure above the system change from A to B through ACB path, the heat absorbs 90 J and the work done by system is 40J. Find: A. The heat absorbed by system through ADB path, if the work done by system 15J. B. The heat absorbed by system when transfer from B to A through AB path, if the work done by system 25J.
A 1.00 mole sample of an ideal monatomic gas, originally at a pressure of 1.00 atm,...
A 1.00 mole sample of an ideal monatomic gas, originally at a pressure of 1.00 atm, undergoes, undergoes a three-step process. (1) It is expanded adiabatically from T1 = 550 K, to T2 = 389 K; (2) it is compressed at constant pressure until the temperature reaches T3; (3) it then returns to its original temperature and pressure by a constant volume process. (a) Plot these processes on a PV diagram. (b) Determine T3. (c) Calculate the change in internal energy, the...
At point D in the figure below, the pressure and temperature of 2.00 mol of an...
At point D in the figure below, the pressure and temperature of 2.00 mol of an ideal monatomic gas are 2.00 atm and 360 K, respectively. The volume of the gas at point B on the PV diagram is three times that at point D and its pressure is twice that at point C. Paths AB and CD represent isothermal processes. The gas is carried through a complete cycle along the path DABCD. Determine the total amount of work done...
A 1.00 mole sample of an ideal monatomic gas, originally a pressure of 1.00 atm, undergoing...
A 1.00 mole sample of an ideal monatomic gas, originally a pressure of 1.00 atm, undergoing a three-step process: • Expands adiabatically from T1 = 588 K to T2 = 300 K • It is compressed at constant pressure until its temperature reaches T3; • Then it returns to its original pressure and temperature using a constant volume process. Calculate cycle efficiency Select one: (Quickly, please :() Calculate cycle efficiency Select one: to. 30.4% b. None of the above options...
Exactly 1 mol of a monatomic ideally-behaving gas expands adiabatically from State 1 to State 2....
Exactly 1 mol of a monatomic ideally-behaving gas expands adiabatically from State 1 to State 2. P-15.70 atm Vi3.75wt T=??? P2=??? V2=11.40 L T2-??? Now, we already know what ASadiabat for the process is. But what I want you to do is propose two hypothetical steps (e.g., the gas undergoes Step A from State 1 to some intermediate State X, and then undergoes Step B from State X to State 2) that add up to the net adiabatic path from...
An ideal gas undergoes a constant pressure process that takes it from State 1 to State...
An ideal gas undergoes a constant pressure process that takes it from State 1 to State 2. The pressure of the gas is 144 kPa. During the process there is 304.0 J of heat transfer to the gas and the thermal energy of the gas increases so that Eth,2 - Eth,1 = 202 J. (a) Find the Work done on the gas during this process. J (b) By how much does the volume change? Please enter your answer as a...
An ideal gas undergoes a constant pressure process that takes it from State 1 to State...
An ideal gas undergoes a constant pressure process that takes it from State 1 to State 2. The pressure of the gas is 129 kPa. During the process there is 294.0 J of heat transfer to the gas and the thermal energy of the gas increases so that Eth,2 - Eth,232 J. (a) Find the Work done on the gas during this process (b) By how much does the volume change? Please enter your answer as a posi (c) The...
The state of an ideal gas can be represented by a point on a PV(pressure-volume)...
The state of an ideal gas can be represented by a point on a PV (pressure-volume) diagram. If you know the quantity of gas, n, a unique point in pressure (P) and volume (V) can be used to determine a temperature (T). Each point on a PV diagram also has a single internal energy (U) assigned to it. If a process starts at a point and returns to that same point on a PV diagram, it returns to the same...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different paths for expansion. Path 1: The gas expands quasistatically and isothermally to (Va, Pz. T2) Path 2: First the gas expands quasistatically and adiabatically (V2, P.,T-),where you will calculate P T. Then the gas is heated quasistically at constant volume to (Va. P2 T1). a. Sketch both paths on a P-V diagram. b. Calculate the entropy change of the system along all three segments...
PROBLEM 1: (50 pts) Consider the following isothermal monatomic ideal gas expansion processes: gradual (reversible) decrease in pressure from P, to Pa, such that the internal and external pressures remain in equilibrium at every step along the path. a) (20 pts) Obtain expressions for AU, W, AS, and Au for the above process (express your results as functions of n, T, P, and/or P2) b) (10 pts) Calculate the work exchanged (in J) in the process, assuming that n=1 mole,...
At point D in the figure below, the pressure and temperature of 2.00 mol of an ideal monatomic gas are 2.00 atm and 360 K, respectively. The volume of the gas at point B on the PV diagram is three times that at point D and its pressure is twice that at point C. Paths AB and CD represent isothermal processes. The gas is carried through a complete cycle along the path DABCD. Determine the total amount of work done...
Exactly 1 mol of a monatomic ideally-behaving gas expands adiabatically from State 1 to State 2. P-15.70 atm Vi3.75wt T=??? P2=??? V2=11.40 L T2-??? Now, we already know what ASadiabat for the process is. But what I want you to do is propose two hypothetical steps (e.g., the gas undergoes Step A from State 1 to some intermediate State X, and then undergoes Step B from State X to State 2) that add up to the net adiabatic path from...
An ideal gas undergoes a constant pressure process that takes it from State 1 to State 2. The pressure of the gas is 129 kPa. During the process there is 294.0 J of heat transfer to the gas and the thermal energy of the gas increases so that Eth,2 - Eth,232 J. (a) Find the Work done on the gas during this process (b) By how much does the volume change? Please enter your answer as a posi (c) The...
