Two long, parallel conductors separated by 13.0 cm carry currents in the same direction. The first...
Two long, parallel conductors separated by 13.0 cm carry currents in the same direction. The first wire carries a current I1 = 5.50 A, and the second carries I2 = 8.00 A. (Assume the conductors lie in the plane of the page.)
(a) What is the magnitude of the magnetic field created by I1 at the location of I2?
________T
(b) What is the force per unit length exerted by I1 on I2?
magnitude ______N/m
direction ________
(c) What is the magnitude of the magnetic field created by I2 at the location of I1?
_______T
(d) What is the force per length exerted by I2 on I1?
magnitude ________N/m
direction_____

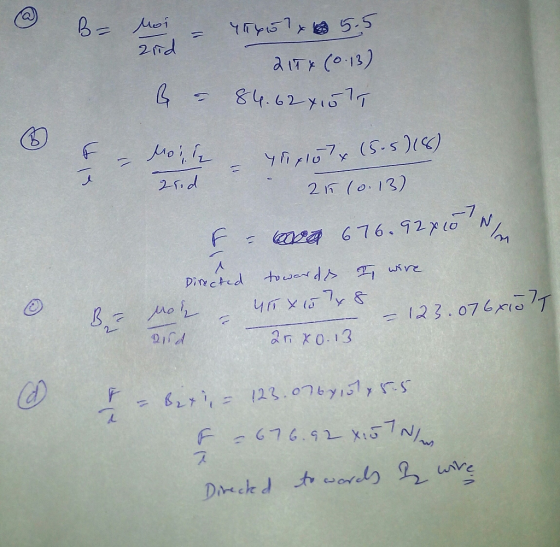

Homework Answers
