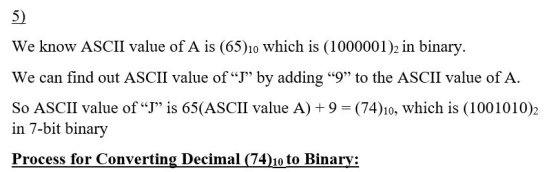

5-Given that the ASCII code for A is 1000001, what is the ASCII code for J?...
5-Given that the ASCII code for A is 1000001, what is the ASCII code for J? Express the answer as 7 binary digits.
6- Suppose we are working with an error-correcting code that will allow all single-bit errors to be corrected for memory words of length 7. We have already calculated that we need 4 check bits, and the length of all code words will be 11. Code words are created according to the Hamming algorithm presented in the text. We now receive the following code word: 011100101 Assuming even parity, according to our error-correcting code, in what bit is the error? Number the bits from the right starting at 1. If there is no error, enter 0.
7- Find the quotient for the following division problem modulo 2. 10011112 ÷ 11012
Homework Answers
Add Answer to:
5-Given that the ASCII code for A is 1000001, what is
the ASCII code for J?...
6. Suppose we want an error-correcting code that will allow all single-bit errors to be corrected...
6. Suppose we want an error-correcting code that will allow all single-bit errors to be corrected for memory words of length 10. a) How many parity bits are necessary? b) Assuming we are using the Hamming algorithm presented in this chapter to design our error-correcting code, find the code word to represent the 10-bit information word: 1001100110
Instruction: For every question you answer, please show the calculation steps, if you do not show...
Instruction: For every question you answer, please show the calculation steps, if you do not show the calculation step and show only the final result, you will not receive any score. You can use online resources for conversion, if the conversion is not a part of the question. There are a total of eight questions. Question 5: Suppose we are working with an error-correcting code that will allow all single-bit errors to be corrected for memory words of length 7....
Soru 7 The ASCII code has 128 binary-coded characters. If a computer generates 125,000 characters per...
Soru 7 The ASCII code has 128 binary-coded characters. If a computer generates 125,000 characters per second, determine the following: a) The number of bits (binary digits) required per character. b) The number of bits per second required to transmit the computer output, and the minimum bandwidth (Nyquist frequency) required to transmit this signal. c) For single error detection capability, an additional bit (called a parity bit) is added to the code for each character. Calculate your answers for part...
5) (2 pt) A 12-bit Hamming code word containing 8 bits of data and 4 parity bits is read from memory. What was the orig...
5) (2 pt) A 12-bit Hamming code word containing 8 bits of data and 4 parity bits is read from memory. What was the original 8-bit data word that was written into memory if the 12-bit word read out is 010011111000? Show your work.
5) (2 pt) A 12-bit Hamming code word containing 8 bits of data and 4 parity bits is read from memory. What was the original 8-bit data word that was written into memory if the 12-bit...
e) Consider a SEC (Single Error Correcting) code that protect 8 bit words with 4 parity...
e) Consider a SEC (Single Error Correcting) code that protect 8 bit words with 4 parity bits. If we read the value 375H, is there an error? If so, correct the error. Problem
Q3. In a (7,4) Hamming Code, three parity bits p1, p2, p3 are added to four...
Q3. In a (7,4) Hamming Code, three parity bits p1, p2, p3 are added to four data bits dl, d2, d3, and d4, and the coverage of each parity bit is as shown in the table below: Bit position 2 3 4 5 6 7 Encoded data bits p1 p2 di p3 d2 d3 d4 da X p1 X X X x Parity bit coverage p2 х X X p3 X X X х 1) (3 pts) Assume even parity...
A Hamming code is a technique where errors can not only be detected but can also...
A Hamming code is a technique where errors can not only be detected but can also be corrected. The simplest example of this kind of code is the (7,4)-Hamming code. In this scheme, a codeword is 7 bits long. We number the positions as follows: 1 2 3 4 5 6 7 The message that is sent is only four bits long, with these four bits occupying positions 3, 5, 6, and 7. Bits 1, 2, and 4 are...
All that is needed is to fill in that one area that says "Student provides missing...
All that is needed is to fill in that one area that says
"Student provides missing code to compare computed
hammingCode[] bits to the codeword[] bits
to determine the incorrect bit." in the code below.
THAT IS ALL THAT IS NEEDED PLUS SCREENSHOT OF COMPILED OUTPUT
AFTERWARDS.
Please TAKE SCREENSHOT of the compiled output
which should look similar to the sample one provided.
//------------------------------------------------------
// Problem #6
// Problem6.c
//------------------------------------------------------
#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>
#include <string.h>
#include <math.h>...
(3 pts) This problem tests your knowledge about coding schemes. What is the binary bit pattern for...
(3 pts) This problem tests your knowledge about coding schemes. What is the binary bit pattern for the letter 'h' using? The answers should give the whole bit string (including leading 0s). ASCII encoding (7-bits) EBCDIC encoding (8-bits) UNICODE encoding (16 bits) ______________________________________________________________________________ (3 pts) Show how each of the following floating point values would be stored using IEEE-754 single precision (be sure to indicate the sign bit, the exponent, and the significand fields): (show your work) 12.5 −1.5 0.75 26.625...
Consider a binary communication channel transmitting coded words of n bits each. Assume that the probability...
Consider a binary communication channel transmitting coded words of n bits each. Assume that the probability of successful transmission of a single bit is p (and the probability of an error is q=1-p), and that the code is capable of correcting up to e (where e>= 0) errors. If we assume that the transmission of successive bits is independent, then what is the probability of successful word transmission? Hint: the word is successfully transmitted if there are e or fewer...
6. Suppose we want an error-correcting code that will allow all single-bit errors to be corrected for memory words of length 10. a) How many parity bits are necessary? b) Assuming we are using the Hamming algorithm presented in this chapter to design our error-correcting code, find the code word to represent the 10-bit information word: 1001100110
Soru 7 The ASCII code has 128 binary-coded characters. If a computer generates 125,000 characters per second, determine the following: a) The number of bits (binary digits) required per character. b) The number of bits per second required to transmit the computer output, and the minimum bandwidth (Nyquist frequency) required to transmit this signal. c) For single error detection capability, an additional bit (called a parity bit) is added to the code for each character. Calculate your answers for part...
5) (2 pt) A 12-bit Hamming code word containing 8 bits of data and 4 parity bits is read from memory. What was the original 8-bit data word that was written into memory if the 12-bit word read out is 010011111000? Show your work.
5) (2 pt) A 12-bit Hamming code word containing 8 bits of data and 4 parity bits is read from memory. What was the original 8-bit data word that was written into memory if the 12-bit...
Q3. In a (7,4) Hamming Code, three parity bits p1, p2, p3 are added to four data bits dl, d2, d3, and d4, and the coverage of each parity bit is as shown in the table below: Bit position 2 3 4 5 6 7 Encoded data bits p1 p2 di p3 d2 d3 d4 da X p1 X X X x Parity bit coverage p2 х X X p3 X X X х 1) (3 pts) Assume even parity...
All that is needed is to fill in that one area that says
"Student provides missing code to compare computed
hammingCode[] bits to the codeword[] bits
to determine the incorrect bit." in the code below.
THAT IS ALL THAT IS NEEDED PLUS SCREENSHOT OF COMPILED OUTPUT
AFTERWARDS.
Please TAKE SCREENSHOT of the compiled output
which should look similar to the sample one provided.
//------------------------------------------------------
// Problem #6
// Problem6.c
//------------------------------------------------------
#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>
#include <string.h>
#include <math.h>...
