John is pushing a 50 kg box with a force of 100 N. The maximum static...

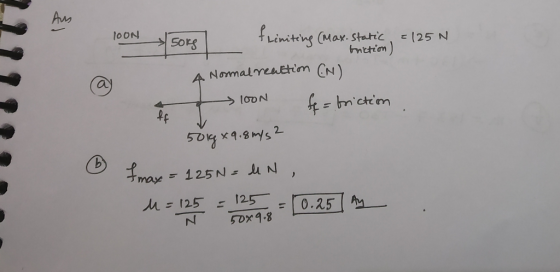

John is pushing a 50 kg box with a force of 100 N. The maximum static frictional force is 125 N. a) Draw a free body diagram. b) What is the coefficient of friction between the box and ground?

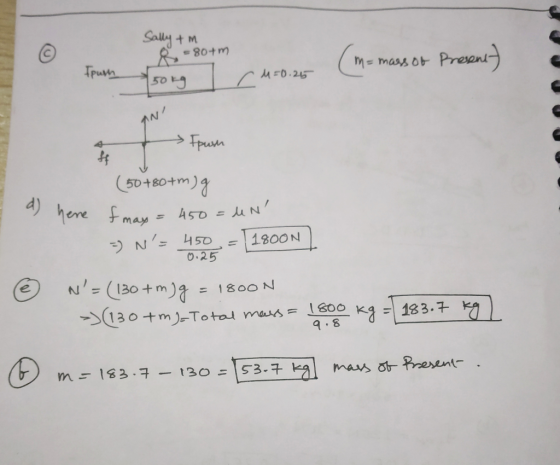

Suppose John then pushes the box with Sally on top of it, who is 80 kg. The box comes to a stop and Sally then holds a present of an unknown mass. The maximum static frictional force is found to be 450 N in this system. c) Draw a free body diagram. d) What is the new normal force? e) Determine the total mass of the box+person+present system? f) What is the mass of the present?
Homework Answers
