Light emitted by element X passes through a diffraction grating that has 1200 slits/mm/mm. The interference...

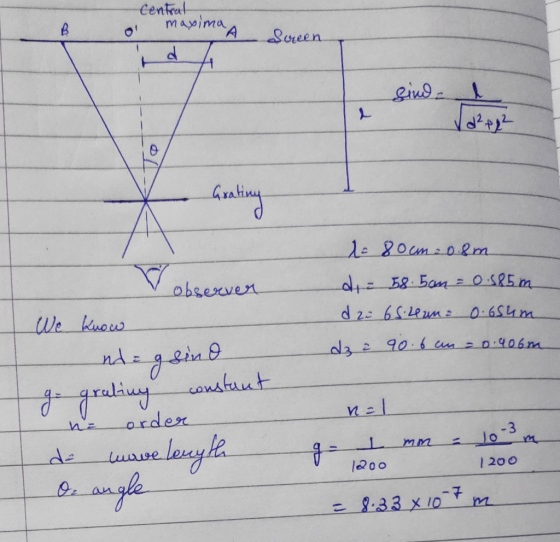

Light emitted by element X passes through a diffraction grating that has 1200 slits/mm/mm. The interference pattern is observed on a screen 80.0 cmcm behind the grating. First-order maxima are observed at distances of 58.5 cmcm , 65.4 cmcm , and 90.6 cmcm from the central maximum.

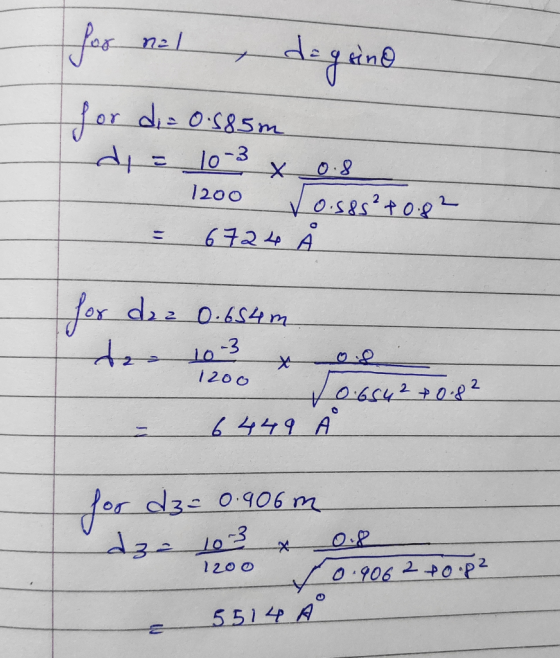

What are the wavelengths of light emitted by element X?
Homework Answers
Add Answer to:
Light emitted by element X passes through a diffraction grating
that has 1200 slits/mm/mm. The interference...
Visible light passes through a diffraction grating that has 900 slits per centimeter, and the interference...
Visible light passes through a diffraction grating that has 900 slits per centimeter, and the interference pattern is observed on a screen that is 2.32 m from the grating. A) In the first-order spectrum, maxima for two different wavelengths are separated on the screen by 3.18 mm . What is the difference between these wavelengths? ___ m
Visible light passes through a diffraction grating that has 900 slits per centimeter, and the interference...
Visible light passes through a diffraction grating that has 900 slits per centimeter, and the interference pattern is observed on a screen that is 2.32 m from the grating. Part A In the first-order spectrum, maxima for two different wavelengths are separated on the screen by 3.24 mm. What is the difference between these wavelengths? Express your answer in meters. V AED ? Submit Request Answer
2. Light of wavelength 545 nm passes through a diffraction grating with 1.35 x103 slits/cm The...
2. Light of wavelength 545 nm passes through a diffraction grating with 1.35 x103 slits/cm The diffraction pattern is observed on a screen 1.70 cm from the grating. a) Determine the separation distance between the adjacent maxima on the screen. b) A second monochromatic light illuminates the diffraction grating simultancously. The second-order maximum of the second light falls midway between the central maximum and the first-order maximum for the first light on the screen. Determine the wavelength of the second...
(3396) Problem 1: Light from a sodium lamp passes through iffraction grating having 1250 slits per...
(3396) Problem 1: Light from a sodium lamp passes through iffraction grating having 1250 slits per mm. The Interference pattern is viewed on a screen 2 m bchind the grating. Two bright yellow spots are visible 217.5 cm and 218.11 cm from the central maximum What is the difference (in nm) between the wavelengths of the light corresponding to these spots?
Assume light of wavelength 650 nm passes through two slits whose centers are 900㎛ apart. The first diffraction min...
Assume light of wavelength 650 nm passes through two slits whose centers are 900㎛ apart. The first diffraction minima 4 coincides with the missing 7th interference maxima. The screen is 1 m from the slits. What are the slit widths a? a. b. What is the angle to the 2d diffraction minimum Sketch the pattern, up to and including the second diffraction minima on both sides of the central c. maximum
Assume light of wavelength 650 nm passes through two...
2) White light is being analyzed by a diffraction grating (100 lines/mm). In the interference pattern,...
2) White light is being analyzed by a diffraction grating (100 lines/mm). In the interference pattern, the third order blue (wavelength=400 nm) appears 10 cm from the central maxima. How far away is the screen placed from the grating? a) 0.83 m b) 6.52m c) 0.21m d) 8.33m Do you agree or disagree with the statement: "Single-slit interference shouldn't be possible if light was wave; for waves to interfere- you need at least two slits" a) agree b)disagree
670 nm light passes through a diffraction grating
5. 670 nm light passes through a diffraction grating. At what angle does the 3rd maximum appear if the slits are 4.77 x 10-6 m apart?6. The first fringe in an interference pattern appears at 15° from the incident light. What wavelength of light is used if the light passes through a slit that is 1.2 μm wide?
please answer all questions ints) A monochromatic light is passing a diffraction grating. The maximum diffraction or...
please answer all questions
ints) A monochromatic light is passing a diffraction grating. The maximum diffraction order of the maxima observed 3. (15 poi on a screen behind the the screen? diffraction grating is 5. What is the maximum angle at which the first order maxima can be observed on 4. (15 points) (Unpolarized light of an intensity lo passes through three successive Polaroid sheets each of whose axis makes a same angle θ with the preceding
ints) A monochromatic...
The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (7.0x10-7 m) that is normally incident...
The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (7.0x10-7 m) that is normally incident on these slits yields this pattern. 9 mm 4 mm Using the locations of interference maxima (e.g., the m-2 maxima lies 4.0 mm from the center of the pattern), determine the distance between these two slits (in millimeters). For the above pattern, using the location of...
(15 points) A monochromatic light is passing a diffraction grating. The maximum diffraction order of the maxima observe...
(15 points) A monochromatic light is passing a diffraction grating. The maximum diffraction order of the maxima observed on a screen behind the diffraction grating is 5. What is the maximum angle at which the first order maxima can be observed on the screen? 3.
(15 points) A monochromatic light is passing a diffraction grating. The maximum diffraction order of the maxima observed on a screen behind the diffraction grating is 5. What is the maximum angle at which the...
Visible light passes through a diffraction grating that has 900 slits per centimeter, and the interference pattern is observed on a screen that is 2.32 m from the grating. Part A In the first-order spectrum, maxima for two different wavelengths are separated on the screen by 3.24 mm. What is the difference between these wavelengths? Express your answer in meters. V AED ? Submit Request Answer
2. Light of wavelength 545 nm passes through a diffraction grating with 1.35 x103 slits/cm The diffraction pattern is observed on a screen 1.70 cm from the grating. a) Determine the separation distance between the adjacent maxima on the screen. b) A second monochromatic light illuminates the diffraction grating simultancously. The second-order maximum of the second light falls midway between the central maximum and the first-order maximum for the first light on the screen. Determine the wavelength of the second...
(3396) Problem 1: Light from a sodium lamp passes through iffraction grating having 1250 slits per mm. The Interference pattern is viewed on a screen 2 m bchind the grating. Two bright yellow spots are visible 217.5 cm and 218.11 cm from the central maximum What is the difference (in nm) between the wavelengths of the light corresponding to these spots?
Assume light of wavelength 650 nm passes through two slits whose centers are 900㎛ apart. The first diffraction minima 4 coincides with the missing 7th interference maxima. The screen is 1 m from the slits. What are the slit widths a? a. b. What is the angle to the 2d diffraction minimum Sketch the pattern, up to and including the second diffraction minima on both sides of the central c. maximum
Assume light of wavelength 650 nm passes through two...
please answer all questions
ints) A monochromatic light is passing a diffraction grating. The maximum diffraction order of the maxima observed 3. (15 poi on a screen behind the the screen? diffraction grating is 5. What is the maximum angle at which the first order maxima can be observed on 4. (15 points) (Unpolarized light of an intensity lo passes through three successive Polaroid sheets each of whose axis makes a same angle θ with the preceding
ints) A monochromatic...
The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (7.0x10-7 m) that is normally incident on these slits yields this pattern. 9 mm 4 mm Using the locations of interference maxima (e.g., the m-2 maxima lies 4.0 mm from the center of the pattern), determine the distance between these two slits (in millimeters). For the above pattern, using the location of...
(15 points) A monochromatic light is passing a diffraction grating. The maximum diffraction order of the maxima observed on a screen behind the diffraction grating is 5. What is the maximum angle at which the first order maxima can be observed on the screen? 3.
(15 points) A monochromatic light is passing a diffraction grating. The maximum diffraction order of the maxima observed on a screen behind the diffraction grating is 5. What is the maximum angle at which the...
