A transformer is plugged into the wall (???? = 120 V, ? = 60 Hz) and...

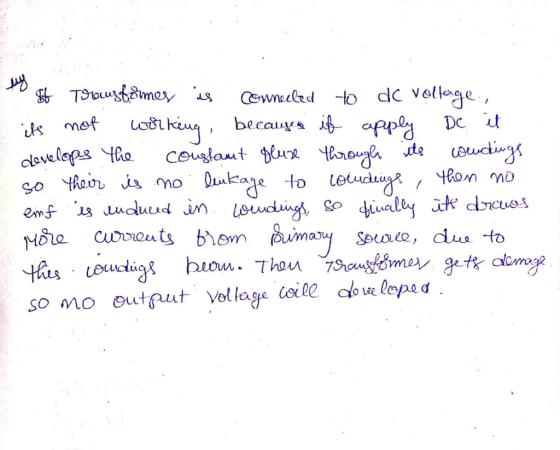

A transformer is plugged into the wall (???? = 120 V, ? = 60 Hz) and provides an output of ???? = 12 V. If the source is changed to DC 120 V, what will the output voltage be?
Homework Answers
Add Answer to:
A transformer is plugged into the wall (???? = 120 V, ? = 60 Hz)
and...
A simple incandescent filament lightbulb plugged into the wall at your house (in the United States) receives 60 Hz, 120...
A simple incandescent filament lightbulb plugged into the wall at your house (in the United States) receives 60 Hz, 120 V alternating current (AC) power What voltage will we measure across the lightbulb? 120 V 170 V O 60 V 0 V Our measurement will depend on when we take it.
A simple incandescent filament lightbulb plugged into the wall at your house (in the United States) receives 60 Hz, 120 V alternating current (AC) power What voltage will we...
1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output...
1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output DC voltage will result if a single-phase full-wave diode bridge is used with a large capacitor and the input is exactly 120 Vrms? Assume each diode's forward voltage drop is 1 V. Design a capacitor if the load is 50 W and the voltage ripple is 1 V peak-peak?
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz...
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA at 0.8 p.f. lagging Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA...
3.10 A 240/120 V, 4.8 kVA, 60 Hz, single-phase transformer is used to supply a 4.8...
3.10 A 240/120 V, 4.8 kVA, 60 Hz, single-phase transformer is used to supply a 4.8 kVA resistive load (i.e., the load has a power factor of 1.0) at rated voltage of 120 V a) If you assume the transformer is ideal, what would be the magni- tude of the expected primary side (240 V side) current? b) Again, if you assume the transformer is ideal, what is the apparent impedance of the load viewed from the high-voltage side of...
Given an input voltage of 120VAC (RMS) +/- 1% mains voltage with 60 Hz frequency (plugged...
Given an input voltage of 120VAC (RMS) +/- 1% mains voltage with 60 Hz frequency (plugged into your wall), design a rectifier circuit that outputs +9V and -5V (account for diode voltage drop). The output voltages should be within +/- 5% of their specification (including peak-peak voltage ripple) with a load of up to 40 mA on the +9V supply and 20 mA on the -5V supply. (6 points) Show circuit diagram of design. For transformer, simply specify turns ratio(s)....
A single-phase 10 kVA, 460/120 V, 60 Hz, transformer has an efficiency of 96% when it...
A single-phase 10 kVA, 460/120 V, 60 Hz, transformer has an efficiency of 96% when it delivers 9 kW at 0.9 pf lagging. The transformer is connected as an autotransformer to supply load to a 460 V circuit from a 580 V source. Show the autotransformer connection Determine kVA rating of the autotransformer Determine the efficiency of the autotransformer at full-load with 0.9 pf lagging
A half-wave rectifier circuit with a 500-Q load operates from a 120-V (rms) 60-Hz household supply...
A half-wave rectifier circuit with a 500-Q load operates from a 120-V (rms) 60-Hz household supply through a 12-to-l step-down transformer. It uses a silicon diode that can be modeled to have a 0.7-V drop for any current. What is the peak voltage of the rectified output? For what fraction of the cycle does the diode conduct? What is the average output voltage? What is the average current in the load. please do not copy answers from others.
A 600 VA, 60 Hz, 220/12 Vrms transformer is connected as an autotransformer. Assuming the transformer...
A 600 VA, 60 Hz, 220/12 Vrms transformer is connected as an autotransformer. Assuming the transformer is ideal, determine a) the output voltage, b) the maximum V-A load rating possible, c) and the maximum input current, d) Determine the input current if a 50 Ohm resistor is connected on the output with 220 V applied to the primary.
The rechargeable batteries for a laptop computer need a much smaller voltage than what a wall...
The rechargeable batteries for a laptop computer need a much smaller voltage than what a wall socket provides. Therefore, a transformer is plugged into the wall socket and produces the necessary voltage for charging the batteries. The batteries are rated at 9.0 V, and a current of 187 mA is used to charge them. The wall socket provides a voltage of 120 V. (a) Determine the turns ratio of the transformer. (b) What is the current coming from the wall...
The transformer has a 36V rms secondary voltage rating, and the line voltage has a frequency of 60 Hz.
Determine the peak-to-peak ripple and dc output voltages in Figure 5. The transformer has a 36V rms secondary voltage rating, and the line voltage has a frequency of 60 Hz.
A simple incandescent filament lightbulb plugged into the wall at your house (in the United States) receives 60 Hz, 120 V alternating current (AC) power What voltage will we measure across the lightbulb? 120 V 170 V O 60 V 0 V Our measurement will depend on when we take it.
A simple incandescent filament lightbulb plugged into the wall at your house (in the United States) receives 60 Hz, 120 V alternating current (AC) power What voltage will we...
1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output DC voltage will result if a single-phase full-wave diode bridge is used with a large capacitor and the input is exactly 120 Vrms? Assume each diode's forward voltage drop is 1 V. Design a capacitor if the load is 50 W and the voltage ripple is 1 V peak-peak?
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA at 0.8 p.f. lagging Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA...
3.10 A 240/120 V, 4.8 kVA, 60 Hz, single-phase transformer is used to supply a 4.8 kVA resistive load (i.e., the load has a power factor of 1.0) at rated voltage of 120 V a) If you assume the transformer is ideal, what would be the magni- tude of the expected primary side (240 V side) current? b) Again, if you assume the transformer is ideal, what is the apparent impedance of the load viewed from the high-voltage side of...
