Question

The Assignment
Design a Visual Logic flowchart for a program that prompts the user to enter ten numbers
one at a time. Use Console I/O (not the GUI interface). After the user has entered all ten
number the program will then print out the total of those ten number and quit.
Here is one example of what the program might look like when run:
Please enter a number: 5
Please enter a number: 10
Please enter a number: 2
Please enter a number: 0
Please enter a number: 7
Please enter a number: 8
Please enter a number: 2
Please enter a number: 1
Please enter a number: 6
Please enter a number: 100
The total is: 141

Answer 1

Below the visual logic flowchart for the given problem.

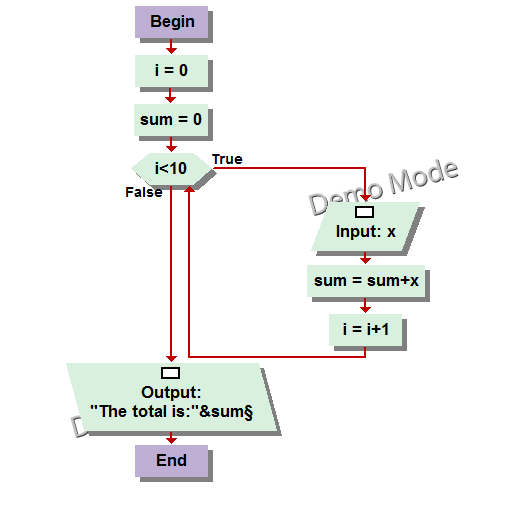

Flowchart:

Explanation:

1.assign i to 1 and sum to 0
i is used to count the numbers of times the iterations to repeat.
sum is used to sum the numbers given through the console.
2.In the loop we take the input and add the number to sum and increment the i.
3.After i reaches to 10 the loop stops iterating.
4.prints the sum.

Note:

1.For input taking step in iteration we have to step text in the prompt as "Please enter a number:"

In the above image the "Demo mode" text is displayed because of the software demo mode.

If you have any queries, please comment below.

Please upvote , if you like this answer.
