A beam of protons traveling at 1.27 km/s enters a uniform magnetic field, traveling perpendicular to...

A beam of protons traveling at 1.27 km/s enters a uniform magnetic field, traveling perpendicular to the field. The beam exits the magnetic field, leaving the field in a direction perpendicular to its original direction (see figure below). The beam travels a distance of 1.18 cm while in the field. What is the magnitude of the magnetic field? (Give your answer in decimal using "mT" (milli Tesla) as unit)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

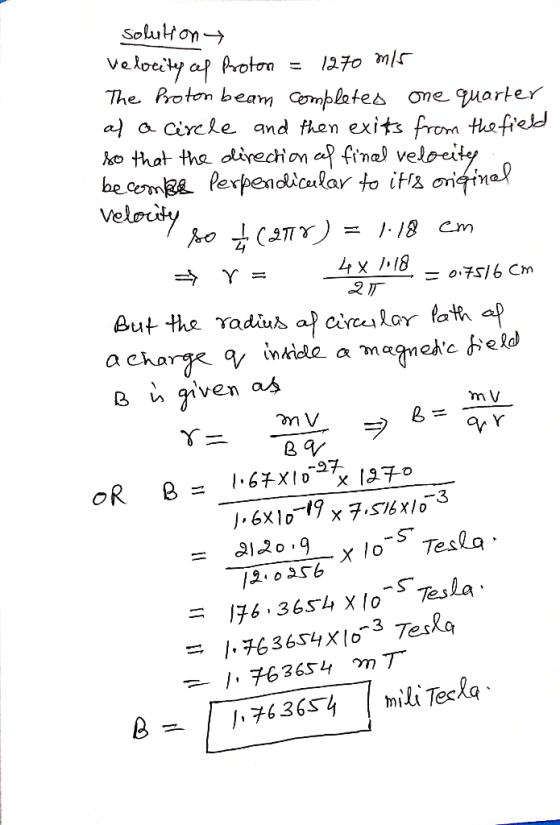

Answer #1

0 0
Add a comment
